250A 2P/Terminals with 6 Screws
📝 Victron 250A 2-Post Busbar with 6 Screws & Cover
The Victron 250A 2-Post Busbar with 6 screws and protective cover is a professional-grade power distribution solution designed to simplify DC wiring and ensure safe, high-current connections. Built for marine, RV, off-grid, and solar applications, this busbar offers exceptional performance and long-term reliability in demanding environments.
⭐ Essential Benefits
• High-current 250A capacity – ideal for safely managing large DC loads.
• 2-post configuration – efficiently connects multiple circuits in a compact layout.
• 6 screw terminals – secure and stable points for multiple cable lugs.
• Protective cover included – prevents accidental contact and enhances electrical safety.
• Molded stainless steel studs – deliver higher torque capacity and superior conductivity.
• Corrosion-resistant construction – ensures long life in marine and outdoor conditions.
• Compact raised-bus design – promotes easy wire access and clean installations.
• Pre-drilled mounting holes – simplify installation for professionals and DIY users alike.
⚙️ Functionality
The Victron 250A Busbar serves as a central hub for DC power distribution. Designed to accommodate multiple connections on one durable base, it ensures efficient current flow and organized wiring. The protective cover shields connections from short circuits and debris, while the stainless steel studs and screws maintain excellent electrical contact even in vibration-prone environments.
🔌 Compatibility
• Works with 12v, 24v, and 48v DC systems
• Compatible with Victron Energy electrical setups
• Suitable for marine, RV, solar, and industrial DC applications
• Ideal for battery banks, inverters, and DC fuse blocks
🧰 Installation Difficulty
🟢 2/5 (Easy) – straightforward to mount and wire, thanks to pre-drilled holes and secure threaded studs.
🔍 Features
• Rated for 250A continuous current
• 2 × M8 stainless steel posts
• 6 × M4 screw terminals
• Insulated protective cover included
• High-strength nickel-plated copper busbar
• Raised bus design for clean cable management
• Pre-drilled mounting holes for easy installation
• Corrosion-resistant hardware for long-term durability
• Suitable for both positive and negative DC connections
• Compact size ideal for tight battery compartments

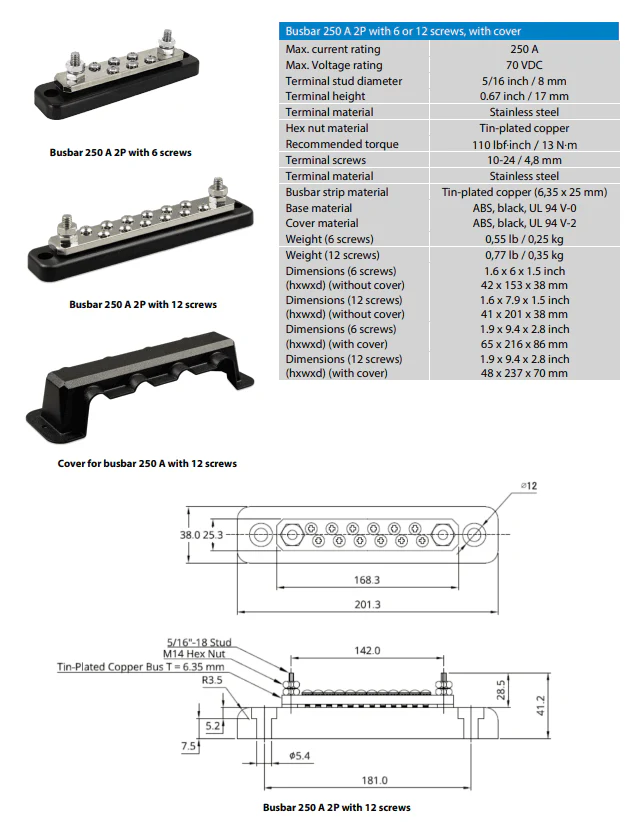

📊 Specifications
| Specification | Detail |
|---|---|
| Continuous Current | 250A |
| Voltage Rating | Up to 70V DC |
| Posts | 2 × M8 stainless steel |
| Terminal Screws | 6 × M4 |
| Mounting Hardware | Included |
| Material | Nickel-plated copper bar |
| Cover | Insulated safety cover (included) |
| Dimensions | 160 × 35 × 35mm (approx.) |
| Operating Temperature | -40°C to +85°C |
| Applications | DC power distribution |
📦 What’s Included
• 1 × Victron 250A 2-Post Busbar
• 6 × M4 terminal screws
• 2 × M8 nuts and washers
• 1 × Protective cover
