150A 2P/Terminals with 10 Screws & Cover
📝 Victron 150A 2-Post Busbar with 10 Screws & Cover
The Victron 150A 2-Post Busbar with 10 screw terminals and protective cover is a high-quality DC distribution solution built for marine, RV, off-grid, and solar energy systems. It simplifies wiring, improves electrical safety, and delivers reliable current handling in demanding environments.
⭐ Essential Benefits
• 150A continuous current rating – handles high-current applications with consistent performance.
• 2-post configuration – ideal for organizing dual-circuit or multi-device DC systems.
• 10 screw terminals – allow multiple wire connections for flexible power distribution.
• Protective insulated cover – enhances safety by preventing accidental short circuits.
• Molded stainless steel studs – ensure secure, high-torque fastening and superior electrical contact.
• Corrosion-resistant materials – built to withstand marine and outdoor conditions.
• Raised bus design – simplifies cable routing and reduces clutter in battery compartments.
• Pre-drilled mounting holes – make installation fast and straightforward.
⚙️ Functionality
The Victron 150A 2P Busbar centralizes DC power connections, distributing current efficiently between batteries, inverters, chargers, and loads. The raised design improves access to terminals, while the protective cover prevents accidental contact for safe operation even in confined electrical spaces.
🔌 Compatibility
• Works with 12v, 24v, and 48v DC systems
• Fully compatible with Victron Energy components
• Suitable for marine, RV, caravan, off-grid, and industrial setups
• Integrates with batteries, fuses, shunts, and inverters
🧰 Installation Difficulty
🟢 2/5 (Easy) – straightforward installation using pre-drilled holes and standard tools.
🔍 Features
• Rated for 150A continuous current
• 2 × M6 stainless steel posts
• 10 × M4 screw terminals for secure wiring
• Nickel-plated copper bar ensures superior conductivity
• Insulated protective cover included
• Pre-drilled mounting holes for quick setup
• Corrosion-resistant hardware for long-term use
• Compact design for tight electrical spaces
• Suitable for positive or negative DC distribution
• Designed and manufactured to Victron Energy’s high standards

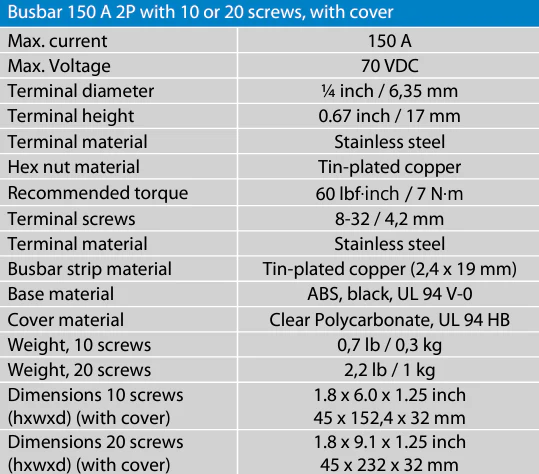

📊 Specifications
| Specification | Detail |
|---|---|
| Continuous Current | 150A |
| Voltage Rating | Up to 70V DC |
| Posts | 2 × M6 stainless steel |
| Terminal Screws | 10 × M4 |
| Material | Nickel-plated copper |
| Cover | Insulated protective cover (included) |
| Mounting Holes | Pre-drilled |
| Dimensions | 200 × 35 × 35mm (approx.) |
| Operating Temperature | -40°C to +85°C |
| Application | DC power distribution |
📦 What’s Included
• 1 × Victron 150A 2-Post Busbar
• 10 × M4 terminal screws
• 2 × M6 nuts and washers
• 1 × Protective insulated cover
