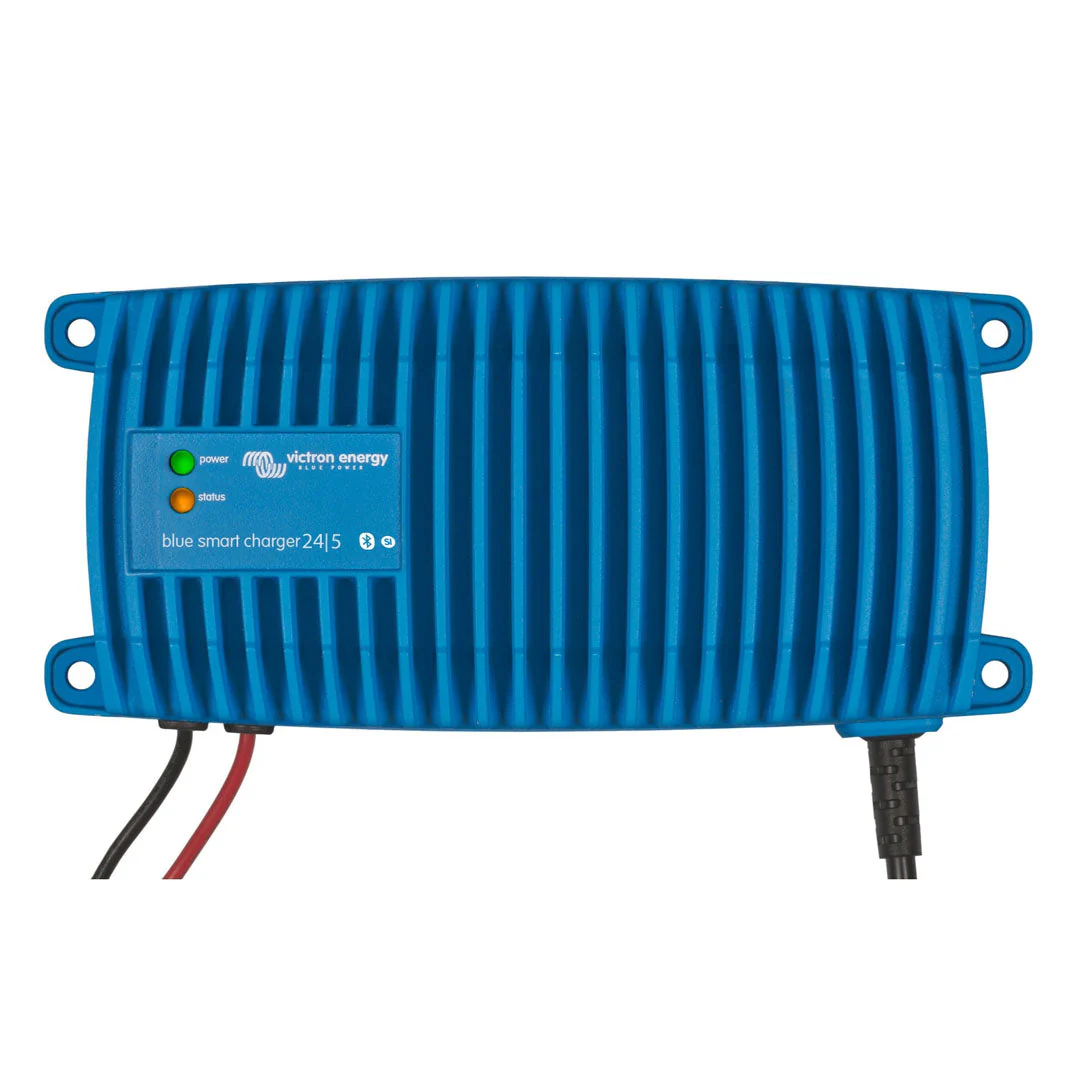

📝 Victron Blue Smart IP67 Charger 24/5

The Victron Blue Smart IP67 24/5 Battery Charger combines durable waterproof design, smart Bluetooth connectivity, and adaptive charging control for precise, reliable power management. Engineered for 24v systems, it’s ideal for marine, RV, off-grid, and industrial environments where reliability and efficiency are essential.

⭐ ESSENTIAL BENEFITS

• IP67 waterproof, dustproof, and ignition protected – fully sealed for maximum environmental resistance
• Bluetooth Smart enabled – monitor and configure charger settings with the VictronConnect app
• Adaptive 5-step charging algorithm – optimises charging to extend battery life and performance
• Automatic storage mode – activates after inactivity to reduce float voltage and prevent sulphation
• LiFePO₄ battery compatible – safe charging with simplified bulk–absorption–float profile
• Ultra-efficient design (≥92%) – less heat and minimal standby energy draw
• Safe high-temp operation – maintains performance up to 60°C with automatic output adjustment
• Compact and rugged – perfect for mobile, marine, and off-grid installations

⚙️ ADVANCED CHARGING TECHNOLOGY

The Blue Smart IP67 24/5 uses a microprocessor-controlled 5-step charging process (Bulk, Absorption, Float, Storage, Recondition) to precisely match your battery’s condition.

After 24 hours of inactivity, it automatically enters storage mode, lowering the float voltage to minimise corrosion and preserve battery health.
It can recover deeply discharged batteries and safely handle LiFePO₄ systems with an integrated under-voltage protection reset.

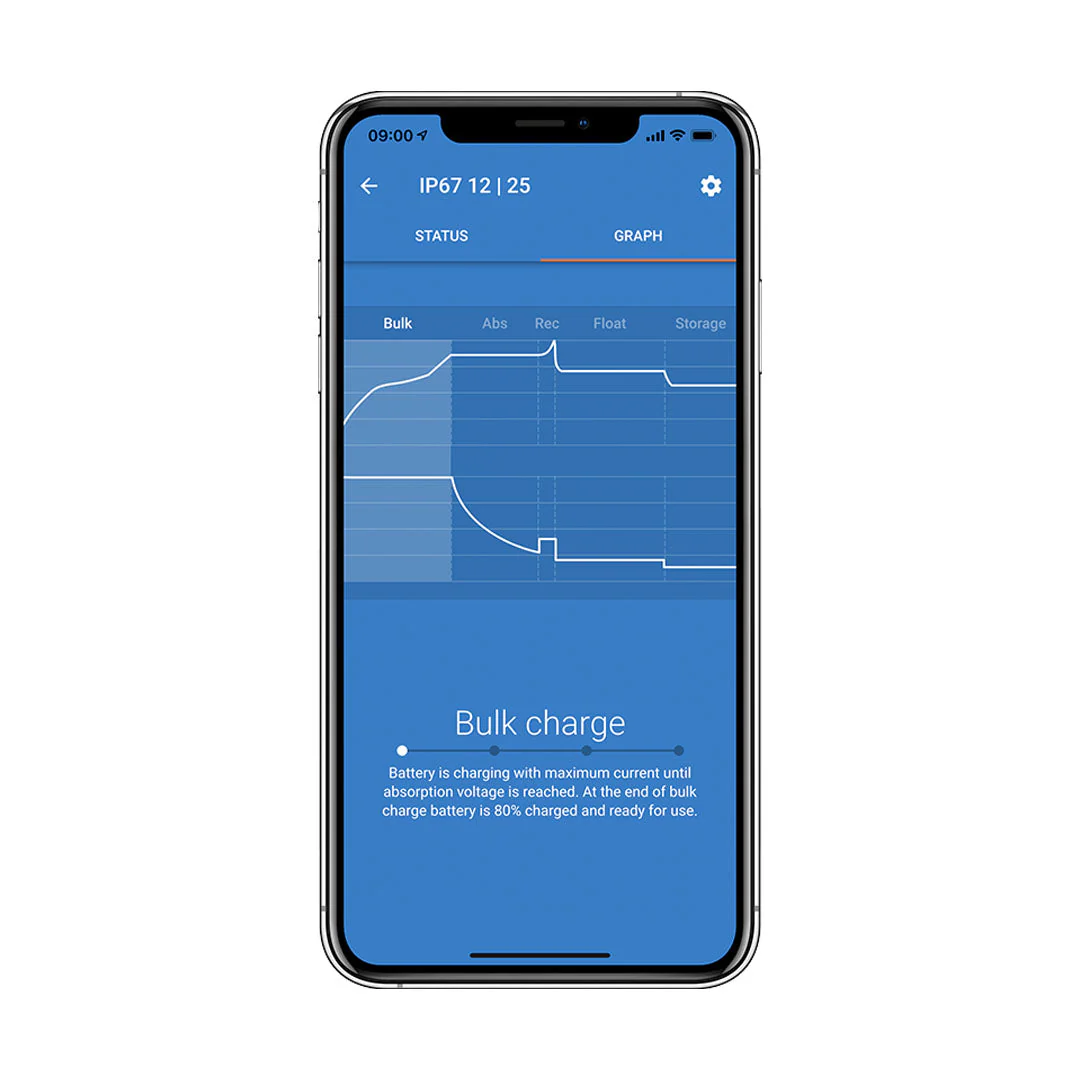

📱 SMART CONTROL WITH VICTRONCONNECT

Stay connected with your charger anywhere via Bluetooth Smart and the VictronConnect app:
• Monitor voltage, current, and charge status in real time
• Configure charge profiles and battery type
• Access firmware updates and usage history
• Integrate with Victron monitoring systems for full network control

🔌 COMPATIBILITY

• Designed for 24v battery systems
• Supports LiFePO₄, AGM, Gel, and Lead-Acid batteries
• Ideal for boats, off-grid setups, commercial vehicles, and RVs

🧰 INSTALLATION DIFFICULTY

🟢 Easy (2/5) – compact design and simple installation with pre-wired connections

🔍 FEATURES

• Adaptive 5-step charging for optimal battery care
• Rugged IP67-rated aluminium housing
• Resin-encased electronics for impact resistance and longevity
• High efficiency with minimal standby draw
• Overheat protection with current reduction at high temperatures
• Compatible with lithium and traditional battery types
• Dual LED charge and power indicators
• Reverse polarity, short-circuit, and overheat protection
• Completely silent — no cooling fan required

📊 SPECIFICATIONS TABLE

Specification	Value
Brand	Victron Energy
Model	Blue Smart IP67 24/5
Input Voltage	230V AC
Battery Voltage	24v DC
Charge Current	5A
Charging Algorithm	5-step adaptive
Battery Types	LiFePO₄, AGM, Gel, Lead-Acid
Efficiency	≥92%
Operating Temperature	-30°C to +60°C
Protection Rating	IP67
Communication	Bluetooth Smart
Dimensions	219 × 99 × 65 mm
Weight	1.8kg

📦 WHAT’S INCLUDED

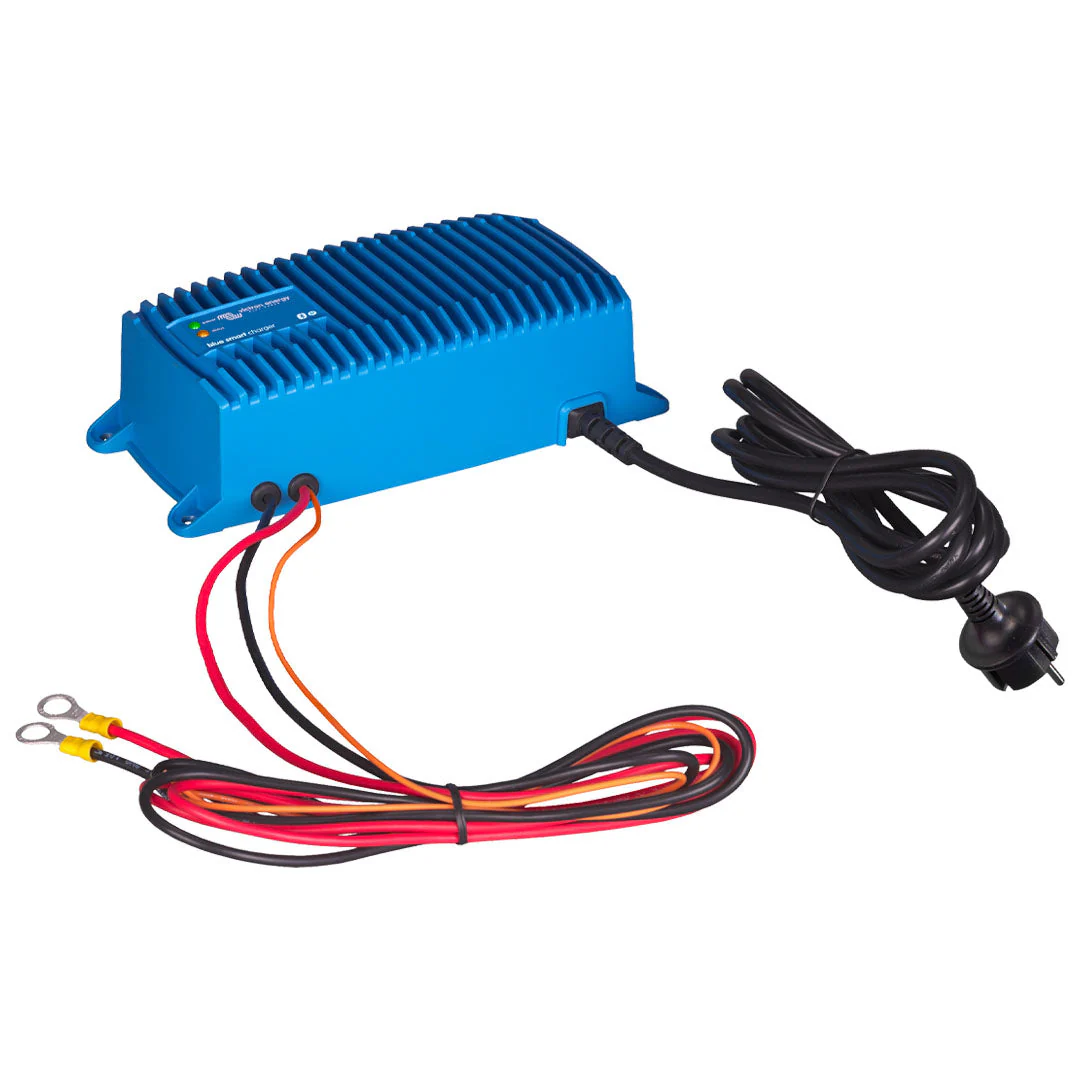

• 1 × Victron Blue Smart IP67 24/5 Battery Charger
• 1 × Pre-wired DC output cable with ring terminals
• 1 × AC input cable
• Instruction manual

Data sheet here

Manual here
