Victron Blue Smart IP22 Charger 12/20 Multi-Bank
📝 Victron Blue Smart IP22 Charger 12/20 Multi-Bank
The Victron Blue Smart IP22 12/20 Multi-Bank Charger is designed to charge and maintain up to three batteries simultaneously, making it ideal for multi-battery systems in RVs, boats, and off-grid setups. With built-in Bluetooth, adaptive charging, and exceptional efficiency, it ensures your batteries are always ready while reducing maintenance and extending battery life.
⭐ ESSENTIAL BENEFITS
• Three charging outputs – charge and maintain multiple batteries at once

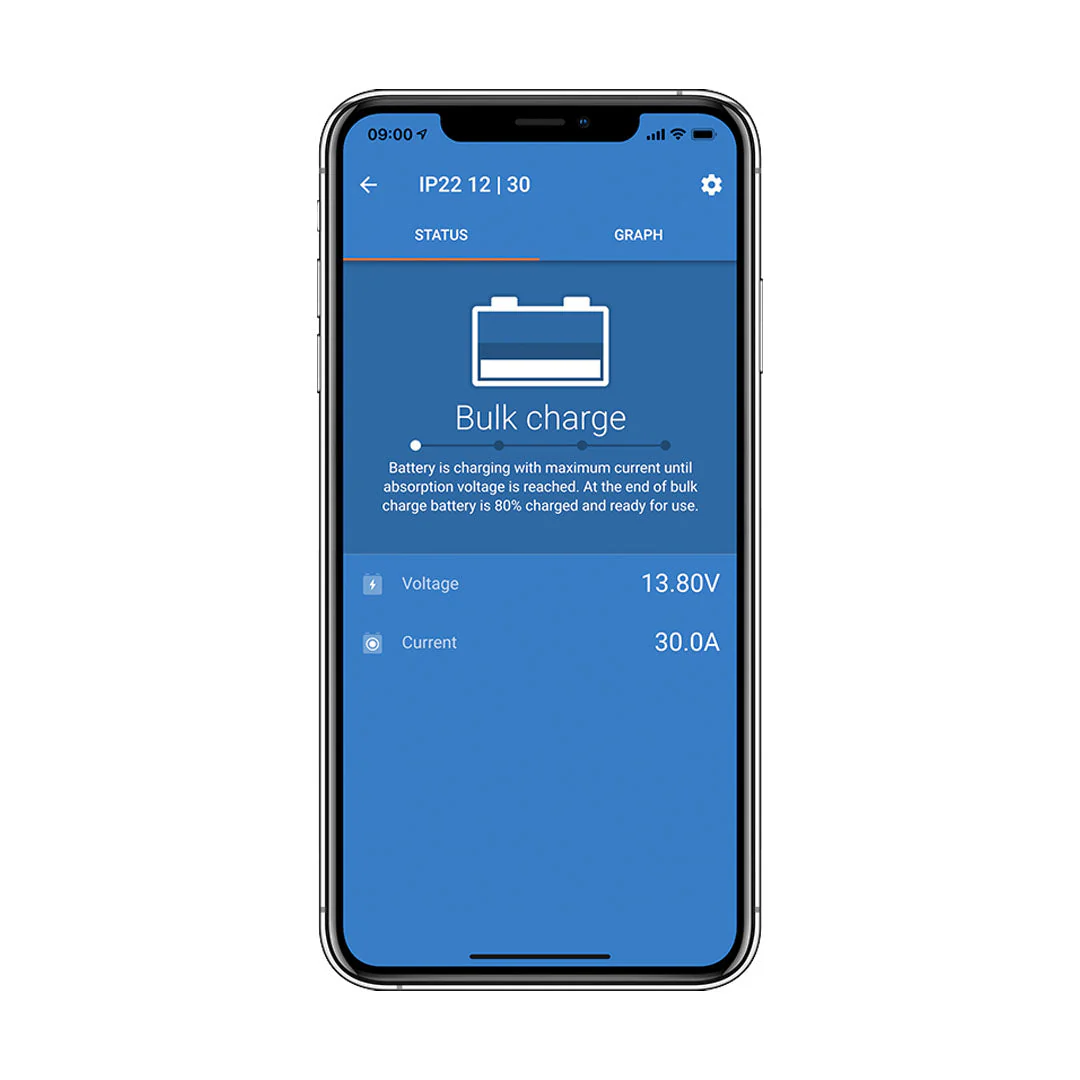

• Bluetooth Smart connectivity – configure and monitor charging via the VictronConnect app
• High efficiency (up to 94%) – reduces power waste and heat output
• Adaptive 6-stage charging – automatically optimises for battery health and lifespan
• Storage mode – protects batteries from sulfation during idle periods
• Silent NIGHT & LOW modes – perfect for caravans, marine cabins, and bedrooms
• Thermal protection – automatic derating to prevent overheating
• Balanced charging – intelligently distributes output current across all connected batteries
⚙️ HOW IT WORKS
This charger features an adaptive 6-stage charging algorithm (bulk, absorption, float, storage, refresh, recondition) that fine-tunes charge delivery based on battery condition and use. Its multi-bank system evenly distributes current between all connected batteries, ensuring consistent charging. Through Bluetooth Smart, you can wirelessly configure, update firmware, and monitor the charger in real time using the VictronConnect app.
🔌 COMPATIBILITY
• Designed for 12v systems in caravans, campervans, boats, and off-grid installations
• Compatible with LiFePO₄, AGM, Gel, and lead-acid battery types
🧰 INSTALLATION DIFFICULTY
🟢 Easy (2/5) – simple wall-mountable design with clear connection terminals
🔍 FEATURES
• Three output banks for simultaneous charging
• Built-in Bluetooth Smart wireless monitoring and configuration
• Adaptive 6-stage charging for maximum battery longevity
• 94% conversion efficiency with minimal standby draw (0.5W)
• NIGHT and LOW mode for ultra-quiet operation
• Storage mode prevents long-term battery damage
• LED indicators for charge stage and system feedback
• Fully protected against overheating, short-circuit, and reverse polarity
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | Blue Smart IP22 12/20 Multi-Bank |
| Input Voltage | 180–265V AC |
| Battery Voltage | 12v DC |
| Charge Current | 20A (shared across 3 outputs) |
| Number of Outputs | 3 |
| Algorithm | Adaptive 6-stage |
| Battery Types | LiFePO₄, AGM, Gel, Lead-Acid |
| Efficiency | Up to 94% |
| Communication | Bluetooth Smart |
| Dimensions | 235 × 108 × 65 mm |
| Weight | 1.3kg |
| Protection | IP22 (indoor use) |
📦 WHAT’S INCLUDED
• 1 × Victron Blue Smart IP22 12/20 Multi-Bank Charger
• 1 × AC power cable
• 1 × DC output cable
• Mounting hardware and user manual
