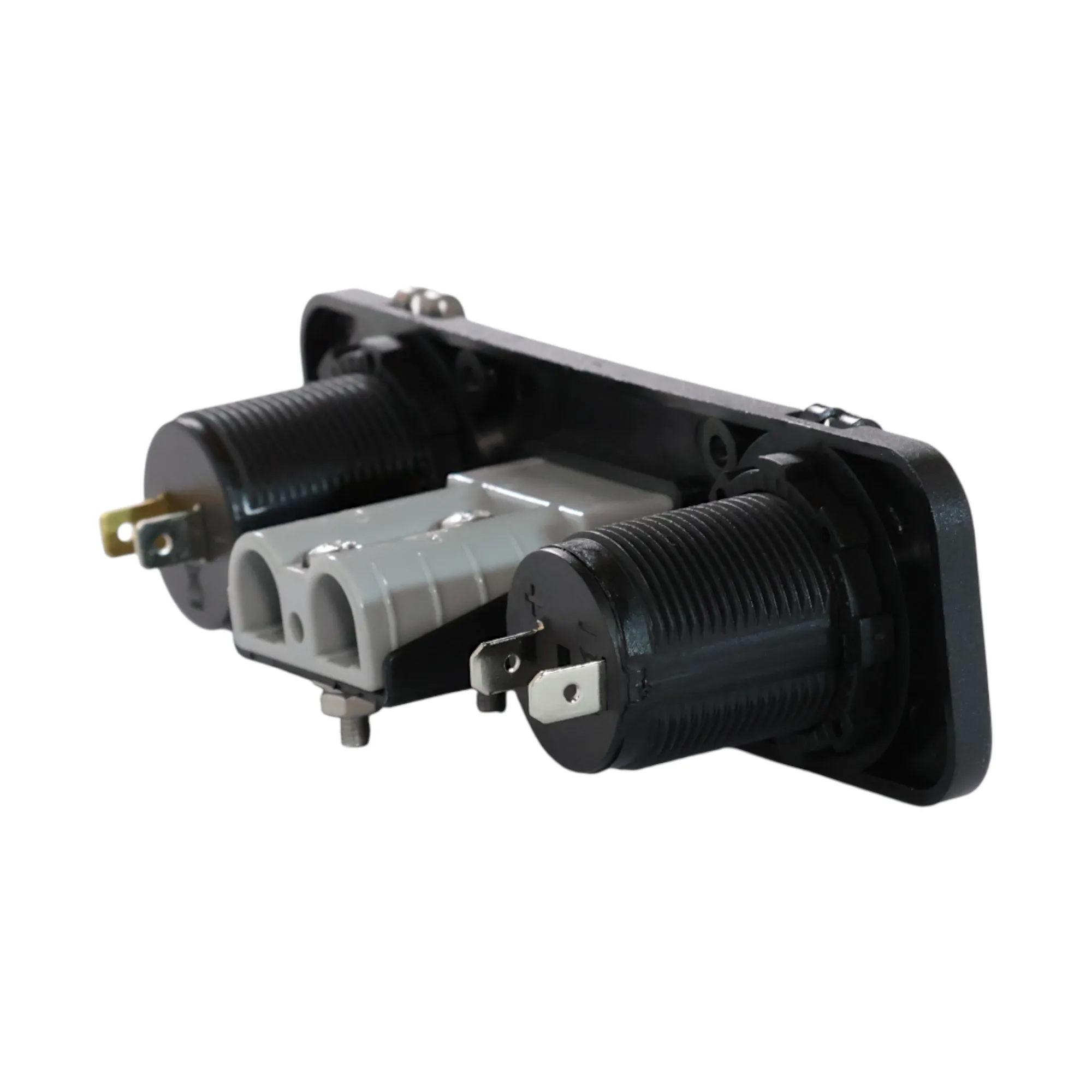

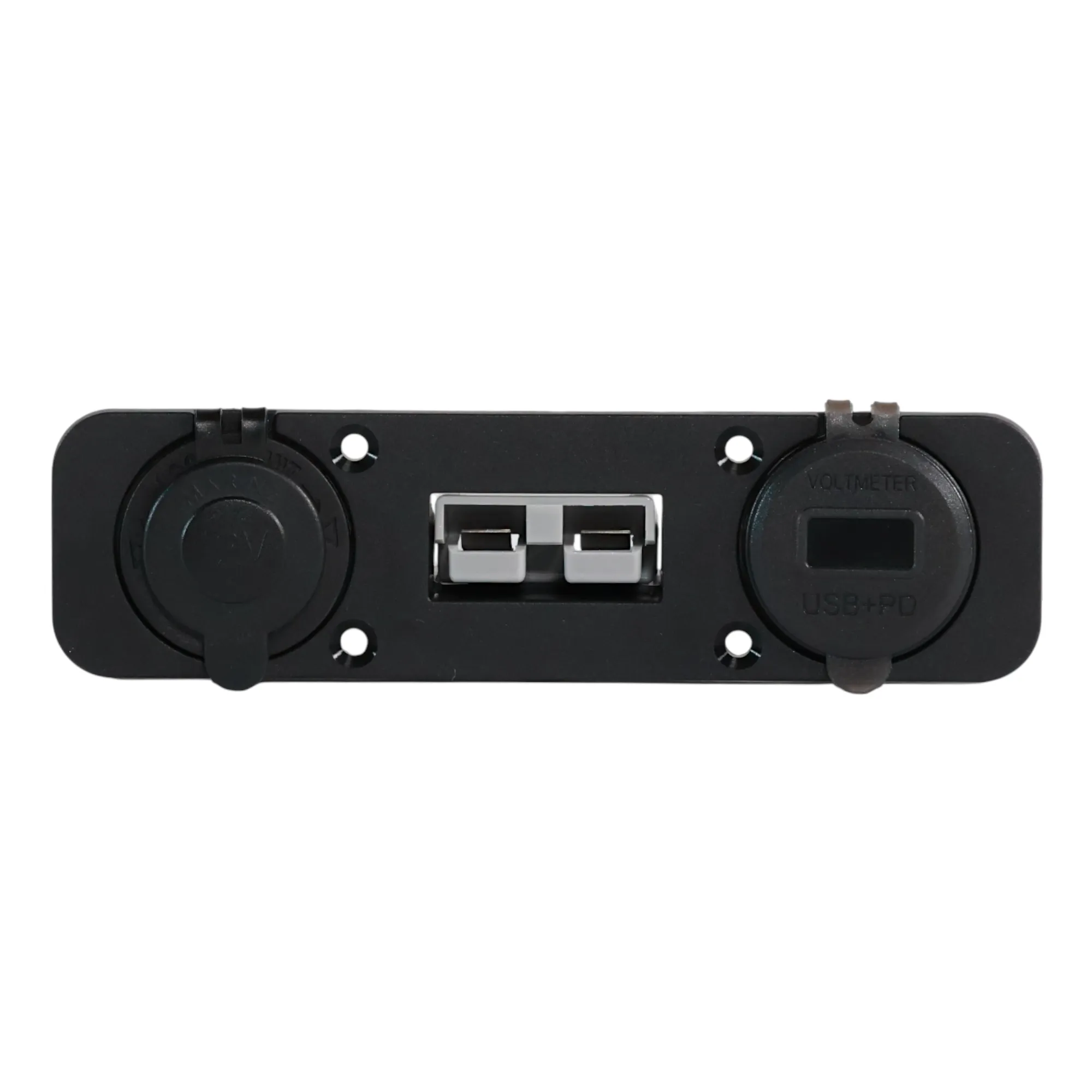

📝 Trio Panel Anderson, 12v Socket + USB-A QC3.0 & USB-C PD with Voltmeter (Surface Mount)

The Trio Panel Anderson, 12v Socket + USB-A QC3.0 & USB-C PD with Voltmeter (Surface Mount) is a multifunction power module that combines a 50A Anderson style socket, a standard 12v accessory socket, and modern fast USB charging into one compact surface-mount panel. With an integrated digital voltmeter, it also gives you a quick snapshot of battery voltage at a glance—perfect for caravans, campervans, 4WDs, RVs, boats, and service vehicles running 12–24v systems.

---

⭐ Essential Benefits

• 4-in-1 power solution – Combines a 50A Anderson style socket, 12v accessory outlet, fast USB charging, and voltmeter display.
• USB-A QC3.0 + USB-C PD – Fast charging for phones, tablets, cameras, and modern USB-C devices.
• Built-in digital voltmeter – Live system voltage readout for quick battery monitoring.
• Durable flame-resistant housing – PC material improves heat resistance and long-term safety.
• Clean surface-mount install – Gives a tidy, integrated look on dashboards, cabinetry, and service panels.
• 12–24v compatible – Ideal for touring builds, marine systems, and off-grid setups.

---

⚙️ Functionality

This surface-mount module provides multiple power outputs from a single compact panel.

The 50A Anderson style socket supports higher-current connections for accessories like fridges, chargers, compressors, solar inputs, or auxiliary battery systems. The 12v accessory socket powers standard DC appliances and plug-in gear. The USB-A QC3.0 and USB-C PD ports deliver faster device charging than standard USB outlets, and the integrated voltmeter provides real-time voltage monitoring to help manage power while travelling or off-grid.

---

🔌 Compatibility

• Works with 50A Anderson style plugs
• Suitable for 12v and 24v DC systems
• Ideal for caravans, campervans, RVs, 4WDs, trucks, boats, and service vehicles
• Powers fridges, chargers, GPS units, lights, phones, tablets, and off-grid accessories

---

🧰 Installation Difficulty

🟢 1/5 (Easy)
Surface-mount installation with straightforward wiring to each output and screw-down mounting.

---

🔍 Features

• 50A Anderson style socket for high-current connections
• 12v DC accessory socket for standard plug-in devices
• USB-A QC3.0 port for fast charging
• USB-C PD port for modern high-speed charging
• Digital voltmeter display for live voltage monitoring
• PC flame-resistant housing for improved durability and safety
• Surface-mount design for neat installs
• Working temperature range approx 45°C to 85°C
• Compact form factor for tight panels and cabinetry

---

📊 Specifications

Specification	Value
Material	PC flame-resistant plastic
System Voltage	12v / 24v
Anderson Socket	50A Anderson style
12v Outlet	Standard accessory socket
USB Ports	1 × USB-A QC3.0 + 1 × USB-C PD
USB Output	Fast charge (device dependent)
Voltmeter	Digital voltage display
Working Temperature	Approx 45°C to 85°C
Output Interfaces	Anderson / 12v socket / USB / voltmeter
Dimensions	Approx 160mm × 49mm × 43mm

---

📦 What’s Included

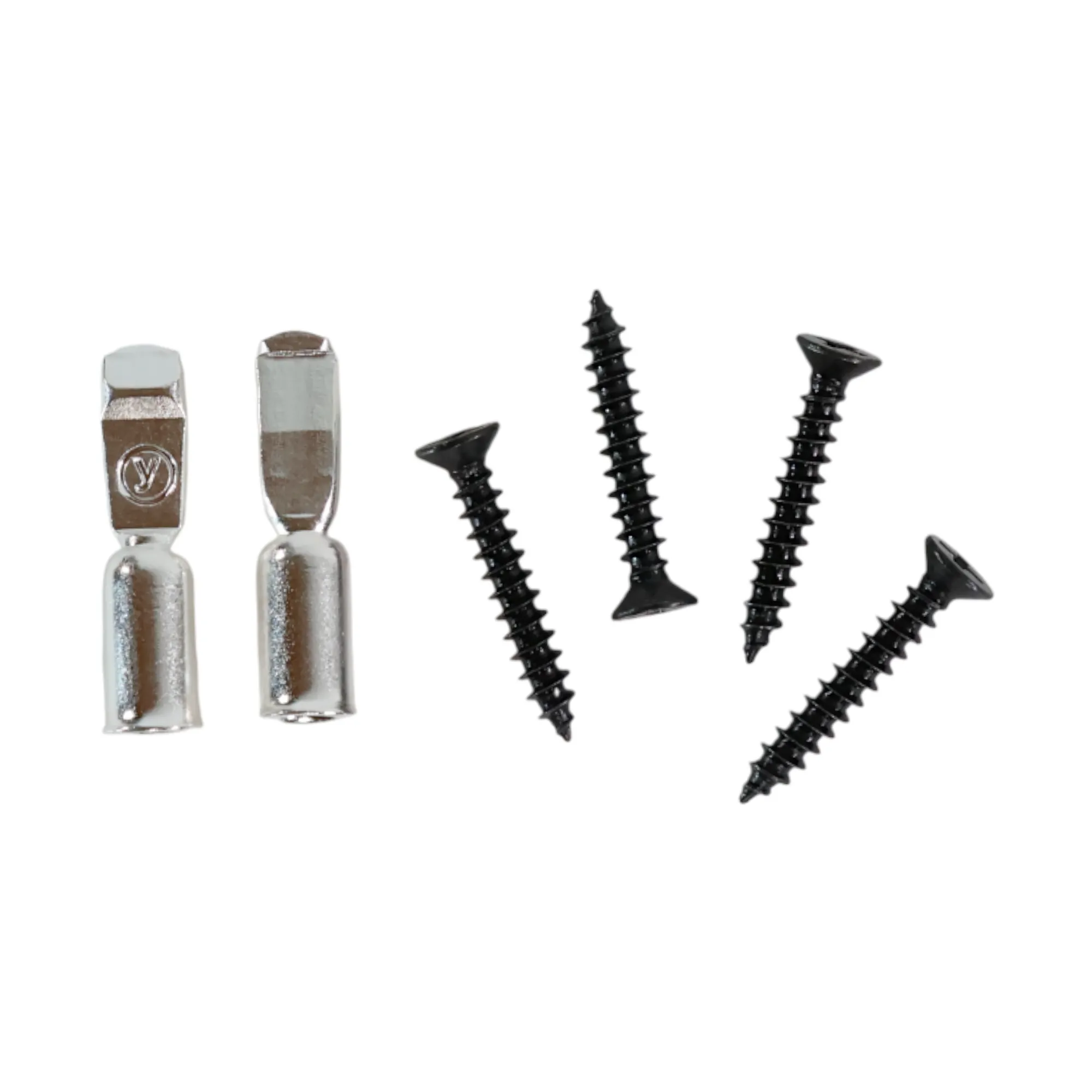

• 1 × Trio panel with Anderson + 12v socket + USB-A QC3.0 & USB-C PD panel with voltmeter
• 4 × Mounting screws

---

🙌 Why Choose This Product?

This surface-mount power panel delivers a clean, professional install while covering every power need in one place—high-current Anderson connection, a standard 12v outlet, fast USB charging for modern devices, and a built-in voltmeter for quick battery checks. It is the perfect upgrade for touring, marine, and off-grid builds where space and functionality matter.

---
