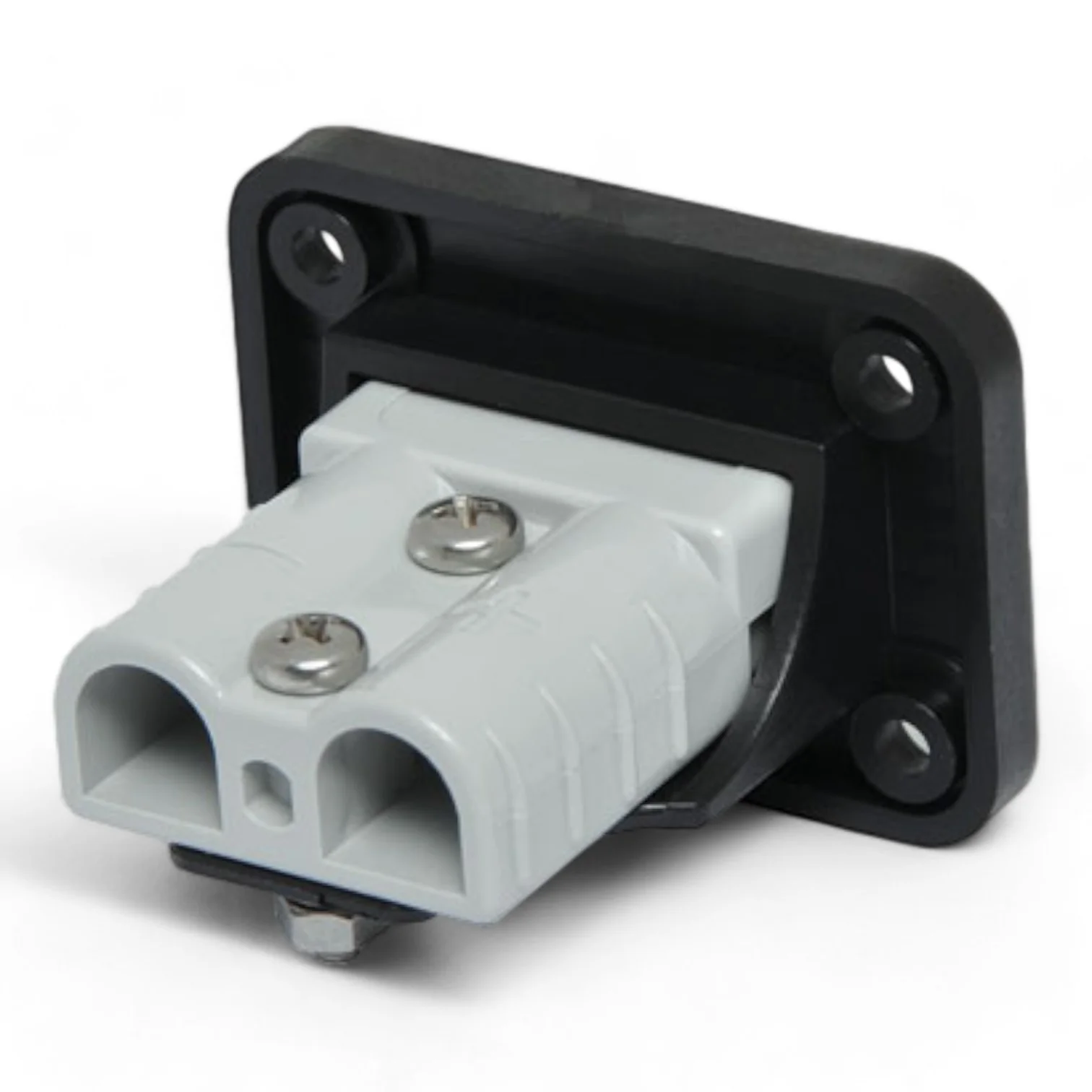

📝 Single Anderson Plug (Surface Mount) – 50A Flush-Mount Anderson Socket

The Single Anderson Plug (Surface Mount) is a flush-mount 50A Anderson style socket designed for clean, integrated installation in caravans, campervans, 4x4s, boats, and service vehicles. Its compact fascia plate provides a tidy, professional finish, while the durable housing ensures reliable high-current connection for 12v and 24v systems.

⭐ Essential Benefits

• Flush-mount design – installs into trim or panels for a clean, low-profile appearance.
• Dedicated 50A connection – provides a secure Anderson style socket for high-current loads.
• Wide system compatibility – suitable for 12v and 24v electrical systems.
• Durable construction – designed for harsh temperature conditions and mobile environments.
• Compact footprint – small, tidy enclosure for tight installation spaces.
• Easy installation – includes terminals and screws for fast mounting.

⚙️ Functionality

This surface-mount Anderson socket provides a fixed 50A connection point for high-current DC accessories such as fridges, compressors, solar inputs, DC chargers, and auxiliary batteries. The flush fascia plate creates a clean, professional look, while the rugged enclosure ensures reliable performance in automotive, marine, and off-grid environments.

🔌 Compatibility

• Works with all matching color-keyed 50A Anderson style plugs
• Suitable for caravans, campervans, 4x4 vehicles, RVs, boats, and service bodies
• Supports 12v and 24v DC systems
• Ideal for solar panel inputs, battery charging, portable appliances, and auxiliary feed points

🧰 Installation Difficulty

🟢 1/5 (Easy)
Cut the panel opening, mount the fascia plate, crimp the contacts, insert into the socket body, and secure with the included screws.

🔍 Features

• Flush-mount fascia plate
• 50A high-current Anderson style socket
• Durable black plastic housing
• Compact design
• Approx 40 × 21MM mounting hole
• Operating temperature –25°C to +80°C
• Includes mounting hardware

📊 Specifications

Specification	Detail
Current Rating	50A DC
Input Voltage	12V / 24V
Working Power	Max 600W
Material	Durable Plastic
Color	Black
Mounting Hole	Approx 40 × 21MM
External Size	Approx 42 × 60MM
Depth	Approx 42MM

📦 What’s Included

• 1 × Surface-Mount Anderson Style Socket
• 2 × Terminals
• 4 × Mounting Screws

🙌 Why Choose This Product?

This surface-mount Anderson socket offers a clean, professional way to integrate high-current DC connections into caravans, 4x4s, boats, or vehicle builds. Its compact size, durable housing, and simple installation make it perfect for solar inputs, battery links, and powering mobile appliances with a reliable 50A connection point.
