TILE Dual USB-C Interior Charging Socket - Stainless Steel Bezel
📝 Scanstrut TILE Dual USB-C Charging Socket – Stainless Steel Bezel
The Scanstrut TILE Dual USB-C Charging Socket with a brushed stainless steel bezel delivers powerful, high-speed charging in a sleek, ultra-low-profile design. Engineered for modern caravans, campervans, RVs, and boats, it supports both 12v and 24v systems and provides up to 60w of output for laptops, tablets, and smartphones, all while blending seamlessly into premium interiors.
⭐ Essential Benefits
• High-speed USB-C charging – Delivers up to 60w on 24v systems and up to 36w on 12v systems.
• Dual USB-C ports – Charge two modern devices at the same time.
• Ultra-low-profile design – Compact 40mm square bezel for clean, minimal installations.
• Premium stainless steel finish – Brushed bezel suits high-end interiors and marine environments.
• Moisture-resistant electronics – Conformal-coated internals ideal for interior vehicle and marine use.
• Simple installation – Front-fit design requiring only a 29mm mounting hole.
⚙️ Functionality
The TILE Dual USB-C socket mounts from the front into a standard 29mm cutout and connects directly to a 12v or 24v DC power supply. Both USB-C PD ports intelligently regulate power output to safely and efficiently fast-charge modern devices, including laptops, tablets, and smartphones, while maintaining extremely low standby power draw.
🔌 Compatibility
• Works with 12v and 24v DC systems
• Suitable for caravans, campervans, RVs, and boats
• Charges USB-C devices – laptops, tablets, smartphones, cameras, and power banks
🧰 Installation Difficulty
🟢 2/5 (Easy)
Front-fit installation with a simple panel cutout and standard DC wiring.
🔍 Features
• Ports – 2 × USB-C Power Delivery
• Finish – Brushed stainless steel bezel
• Design – Ultra-low-profile TILE format
• Electronics protection – Conformal-coated for moisture resistance
• Low standby draw – Less than 0.01w
📊 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 10–32v DC |
| USB-C Output (12v system) | 5v⎓3a, 9v⎓3a, 12v⎓3a |
| USB-C Output (24v system) | 5v⎓3a, 9v⎓3a, 12v⎓3a, 15v⎓3a, 20v⎓3a |
| Maximum Power Output | Up to 60w |
| Standby Power Draw | <0.01w |
| Mounting Hole Size | Approx 29mm |
| Bezel Size | Approx 40.4mm × 40.4mm |
| Depth | Approx 66.5mm |
| Bezel Material | Stainless steel |
| Certifications | CE, FCC, UKCA, C-Tick, ROHS, WEEE |
📦 What’s Included

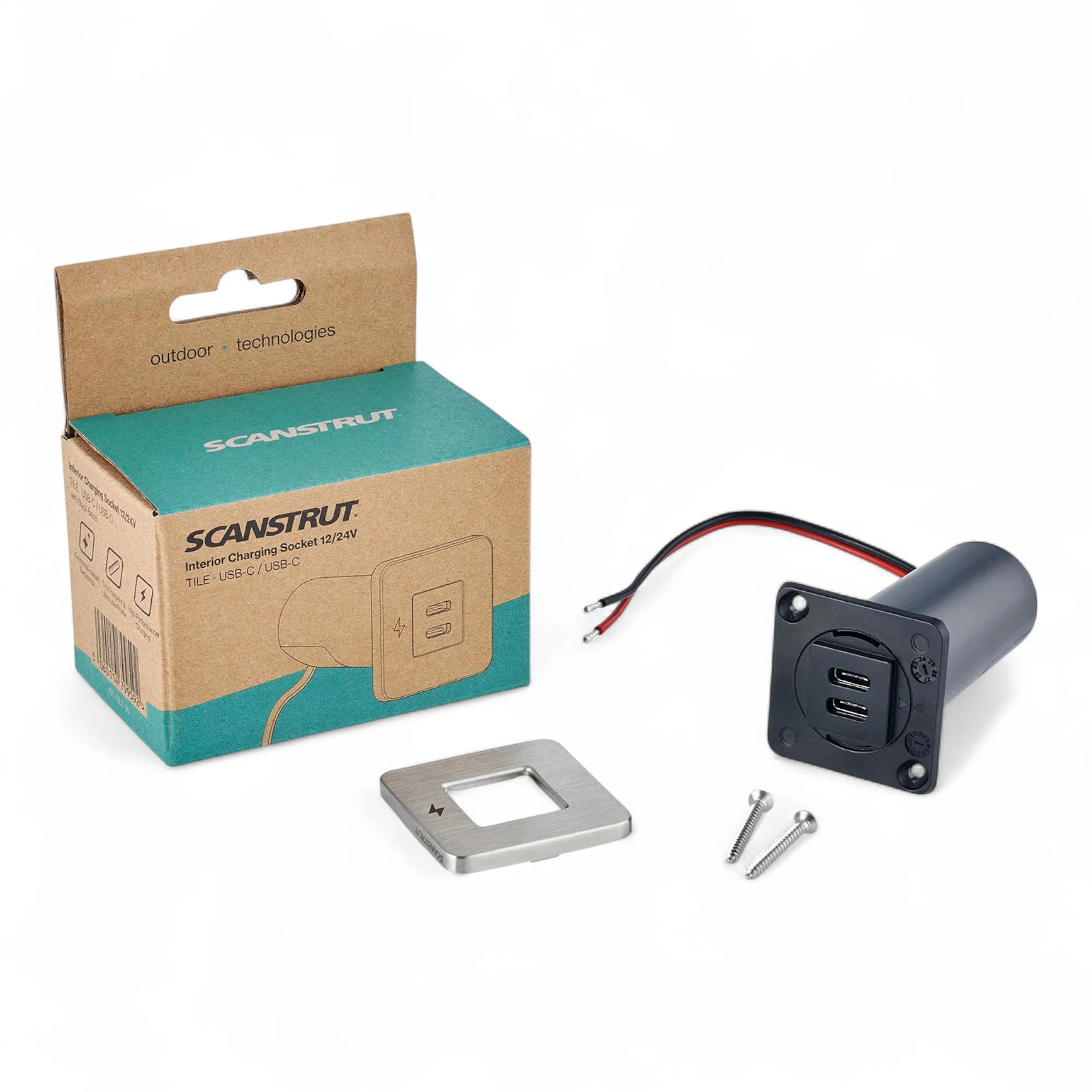

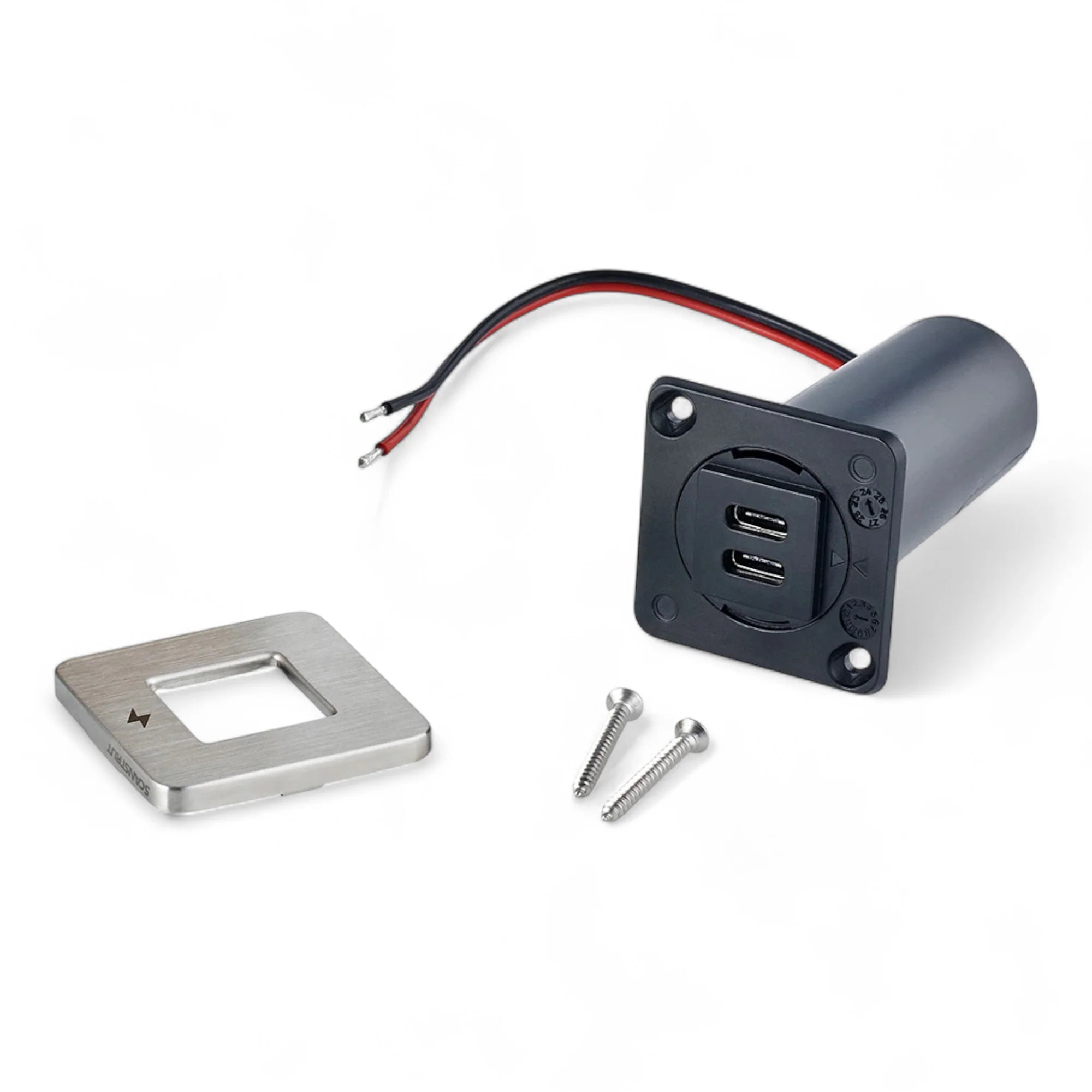

• 1 × Scanstrut TILE Dual USB-C Charging Socket (Stainless Steel Bezel)
• Mounting hardware
• Installation instructions
🙌 Why Choose This Product?
The Scanstrut TILE Dual USB-C combines premium materials, compact design, and serious charging performance. With dual USB-C PD ports, ultra-low standby draw, and a durable stainless steel bezel, it’s the ideal charging solution for modern interiors where performance and aesthetics matter equally.
🚀 Our Promise
Order today for same-day dispatch and enjoy reliable, high-speed charging backed by quality hardware designed for life on the road and water.
