📝 Scanstrut SC-TILE-10 USB-A & USB-C Interior Charging Socket (Black Bezel)

The Scanstrut SC-TILE-10 is an ultra-low-profile USB charging socket designed to blend seamlessly into modern campervan, caravan, RV, and marine interiors. Featuring one USB-A port and one USB-C port, this compact charger delivers fast, reliable power while maintaining a clean, flush-mounted finish that looks factory-installed.

Built for 12v and 24v systems, the SC-TILE-10 combines premium design with rugged electronics, making it ideal for mobile and off-grid environments where durability and aesthetics matter.

⭐ Essential Benefits

• Dual USB charging – USB-A and USB-C ports cover modern and legacy devices.
• Fast charging performance – delivers up to 36W on a 12v system.
• Ultra-low-profile design – sleek, flush finish that blends into interiors.
• Rugged internal protection – conformal-coated electronics resist dust, vibration, and humidity.
• 12–24v compatibility – suits caravans, campervans, RVs, and marine systems.

⚙️ Functionality

The SC-TILE-10 mounts flush into a small round panel cutout and connects directly to a 12v or 24v DC supply. Once installed, it provides fast, stable USB charging without protruding from the surface, making it ideal for cabins, walls, seating bases, and living areas where space and appearance are important.

🔌 Compatibility

• Works with 12v and 24v DC systems
• Suitable for campervans, caravans, RVs, boats, and marine cabins
• Charges phones, tablets, cameras, GPS units, and USB-powered accessories

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a small round cutout and basic DC wiring.

🔍 Features

• USB-A fast-charge port
• USB-C fast-charge port
• Ultra-low-profile flush mount design
• Conformal-coated electronics for vibration and moisture resistance
• Compact square face with black bezel
• Designed for interior installations

📊 Specifications

Specification	Value
Input Voltage	10–32V DC
Input Current	Max 6A
USB-A Output	5V / 9V / 12V up to 3A
USB-C Output	5V / 9V / 12V up to 3A
Max Power Output	Up to 36W (12v system)
Cutout Diameter	Approx 29MM
Front Face Size	Approx 43 × 43MM
Minimum Panel Thickness	Approx 3MM
Bezel Color	Black
Housing Material	Durable plastic
Certifications	CE, FCC, UKCA, C-Tick, ROHS, WEEE

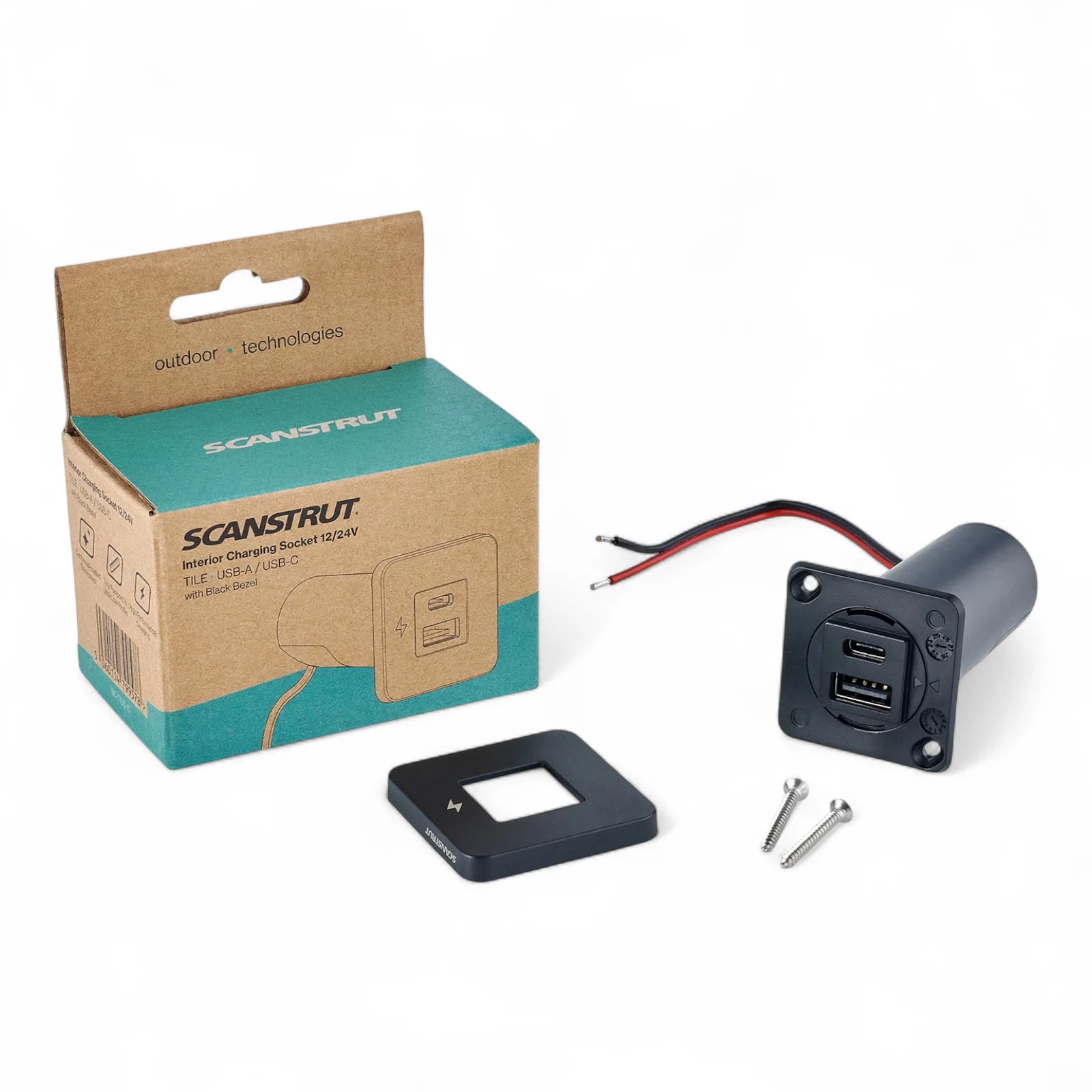

📦 What’s Included

• 1 × Scanstrut SC-TILE-10 USB-A & USB-C Interior Charging Socket (Black Bezel)
• Installation hardware

🙌 Why Choose This Product?

The Scanstrut SC-TILE-10 delivers premium charging performance in a discreet, modern form. Its ultra-low-profile design, rugged internal protection, and fast dual-USB output make it the perfect choice for clean, high-end campervan, caravan, and marine interiors.

🚀 Our Promise

Order today for same-day dispatch and enjoy refined, reliable charging wherever your journey takes you.
