📝 Anderson & 12v Socket Charger (Surface Mount)

The Anderson & 12v Socket Charger (Surface Mount) is a durable, flush-mount power module designed to provide both a 50A Anderson style connection and a standard 12v accessory socket. Ideal for caravans, campervans, 4x4 vehicles, RVs, boats, and commercial transport, this unit delivers clean installation, reliable charging, and robust performance in demanding environments.

⭐ Essential Benefits

• Dual power outputs – integrates a 50A Anderson style socket with a 12v accessory socket.
• High-current capability – supports up to 50A plug size, 15A continuous, and 25A intermittent loads.
• Durable construction – PETG housing and silver-plated contacts provide long-lasting reliability.
• Wide operating range – performs from –20°C to +105°C for harsh environments.
• Flush-mount design – compact fascia integrates cleanly into panels and cabinetry.
• Versatile system use – suitable for 12v or 24v systems across recreational and commercial applications.

⚙️ Functionality

This surface-mount charger module provides two independent outputs: a high-current 50A Anderson style socket for DC appliances, solar inputs, or auxiliary feeds, and a standard 12v socket for charging accessories such as lighting, compressors, GPS units, and portable devices. Its flush-mount bracket ensures a tidy installation, while the PETG housing and robust internal contacts support efficient, low-loss power delivery.

🔌 Compatibility

• Works with 50A Anderson style plugs
• Suitable for caravans, campervans, 4x4s, RVs, boats, trucks, and commercial vehicles
• Supports 12v and 24v DC systems
• Ideal for battery chargers, solar inputs, fridges, compressors, and 12v accessories

🧰 Installation Difficulty

🟢 1/5 (Easy)
Mount the panel bracket, connect wiring to the Anderson and 12v sockets, and secure the module into position.

🔍 Features

• 50A Anderson style socket
• 12v accessory socket
• PETG plastic housing
• Silver-plated copper contacts
• Flush-mount panel bracket
• Approx 45MM depth
• Operating range –20°C to +105°C
• IP20 protection rating

📊 Specifications

Specification	Detail
Anderson Rating	Up to 50A Plug Size
Continuous Load	Approx 15A
Intermittent Load	Approx 25A
Voltage	12V / 24V
Material	PETG Plastic
Contact Type	Silver-Plated Copper
Panel Size	Approx 80 × 60 × 6MM
Depth	Approx 45MM
Mount Hole Spacing	Approx 60 × 45MM
Protection	IP20 (Indoor Use)

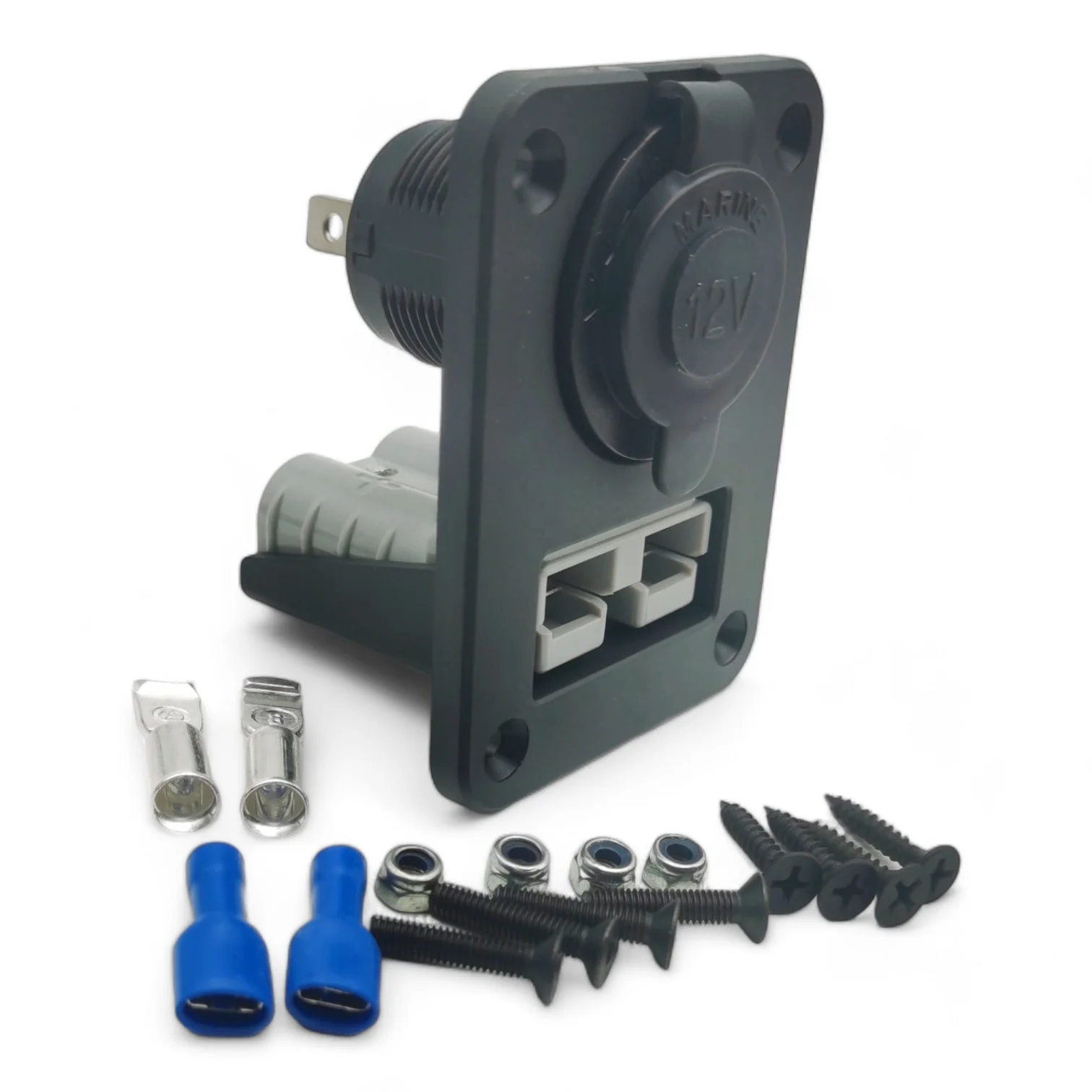

📦 What’s Included

• 1 × Flush-Mounting Bracket
• 1 × Anderson Style Socket (50A)
• 1 × 12v Socket

🙌 Why Choose This Product?

This surface-mount charging module delivers a professional, dual-purpose power point for high-current equipment and everyday 12v accessories. Its durable construction, wide operating range, and flush-mounted design make it ideal for vehicle builders, off-grid setups, and anyone needing a clean, dependable charging solution across recreational or commercial environments.
