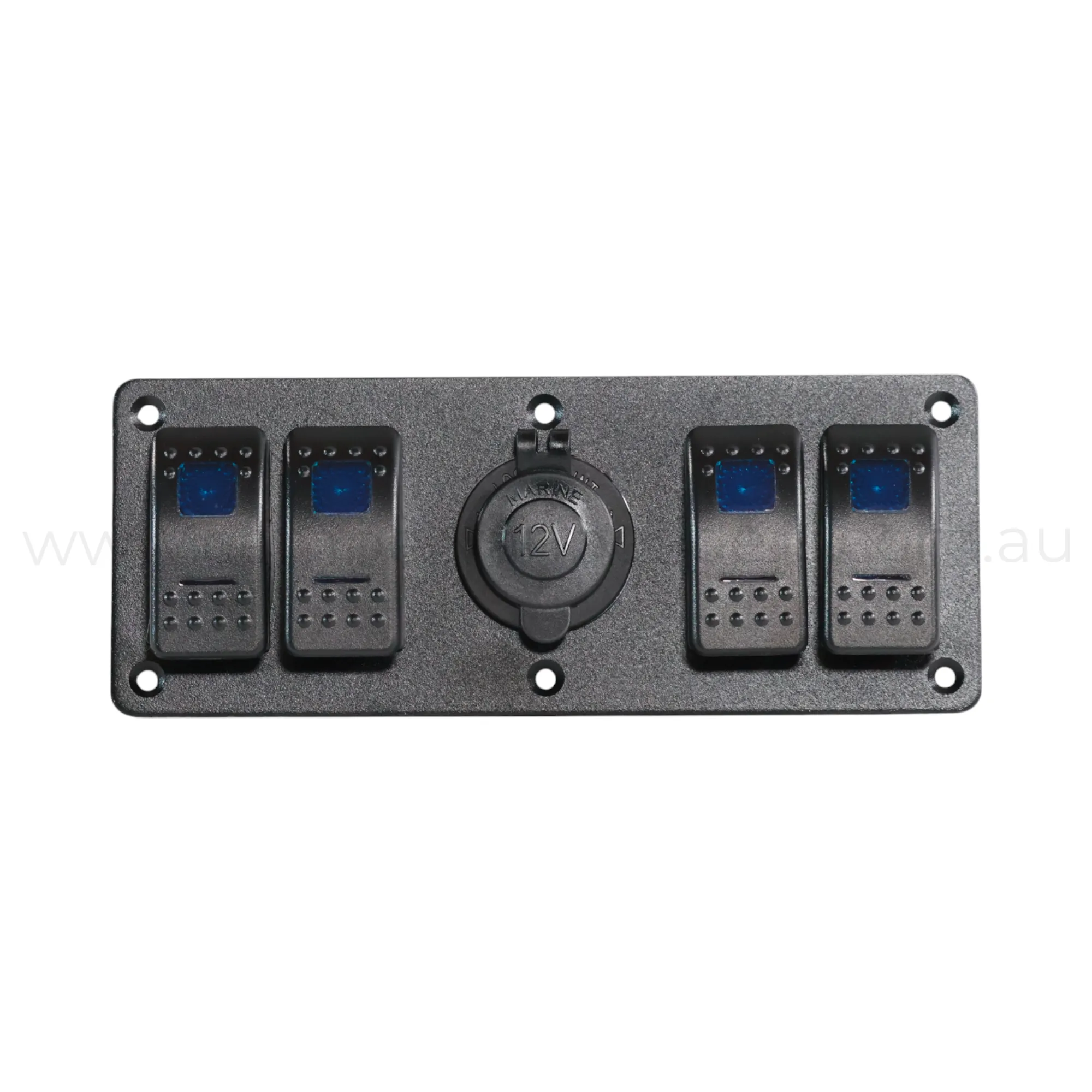

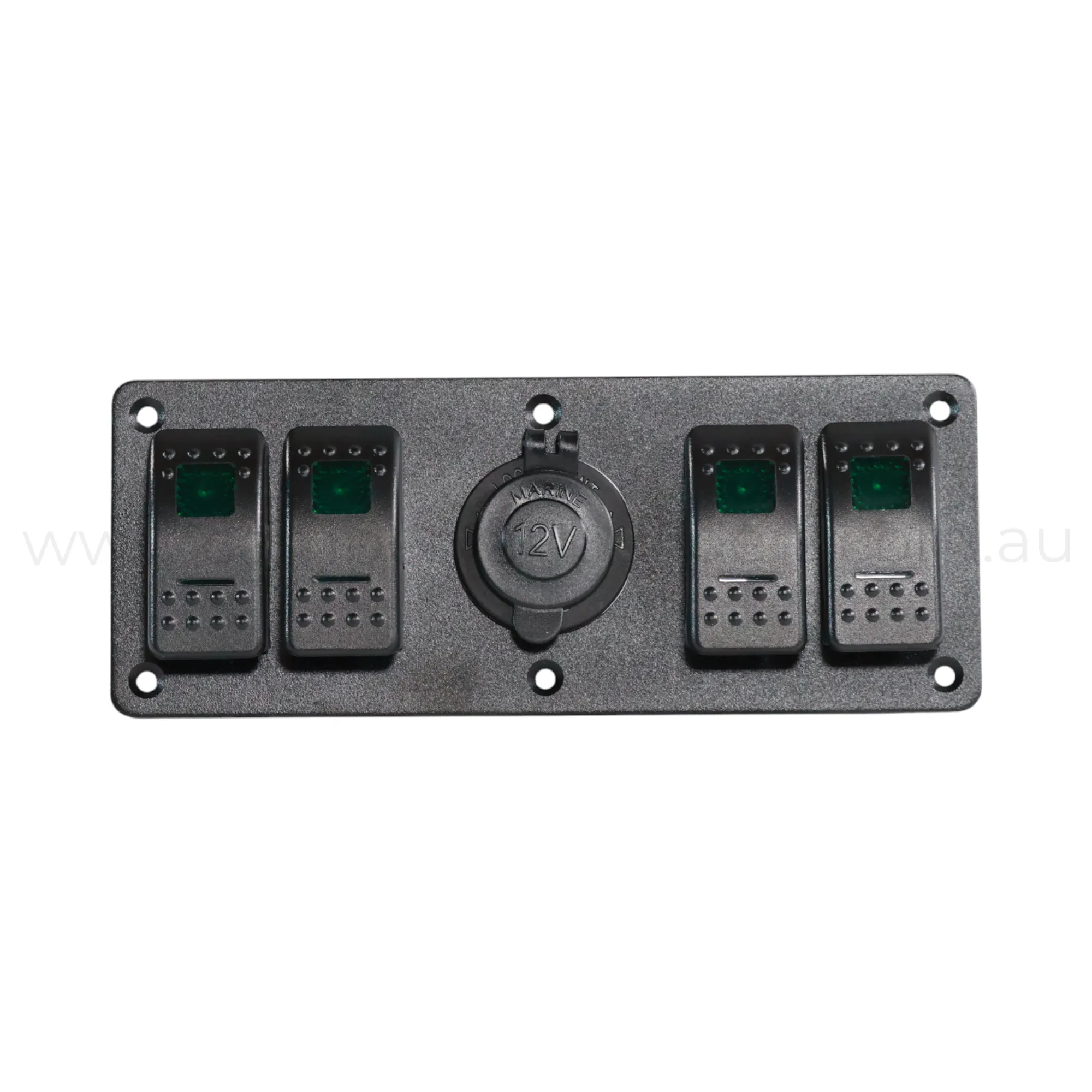

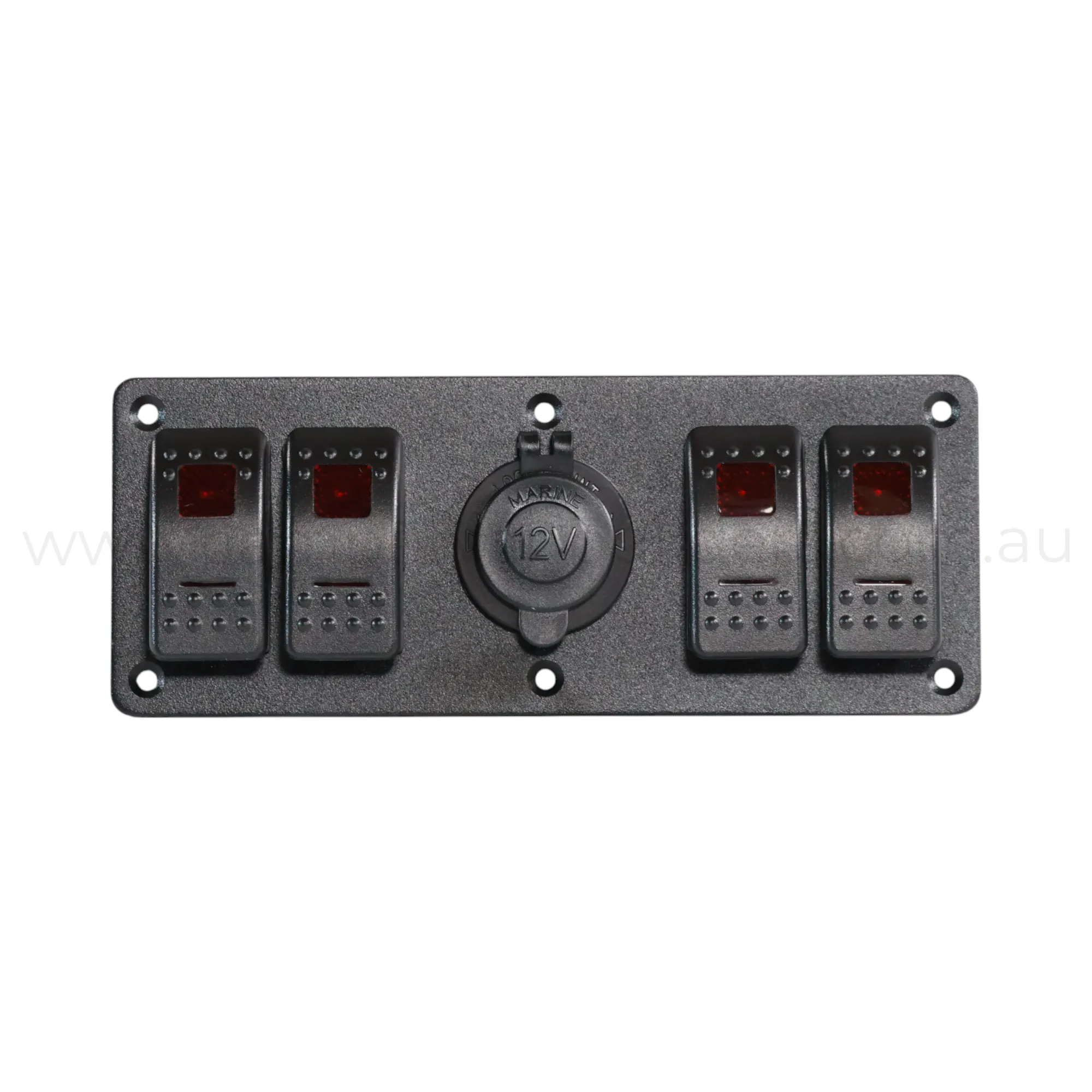

4 Way Rocker Switch Panel With 12v Socket Dual LED (Red, Green or Blue)
📝 4 Way Rocker Switch Panel With 12v Cigarette Socket Dual LED (Red, Green or Blue)
This 4 way rocker switch panel offers a practical way to manage multiple 12v accessories while keeping your wiring neat and accessible. Supplied pre-assembled and pre-wired, it features 4 dual-LED rocker switches and an integrated 12v cigarette style socket, making it well suited to compact control panels in mobile and off-grid setups.
Mounted on a durable aluminium plate with sealed components, this panel is designed for reliable use in 4WDs, campervans, caravans, boats, and other vibration-prone environments.
⭐ Essential Benefits
• 4x rocker switches for independent control of 12v accessories.
• Dual LED switches for clear dash light and on/off status indication.
• Integrated 12v cigarette style socket for powering accessories.
• Pre-wired design for fast, clean installation.
• Aluminium mounting plate for strength and long-term durability.
⚙️ Functionality
This panel is fully assembled with four SPST on/off rocker switches mounted to an aluminium plate. Each switch uses dual LEDs, with the lower LED acting as a dash light and the top LED illuminating when the switch is turned on.

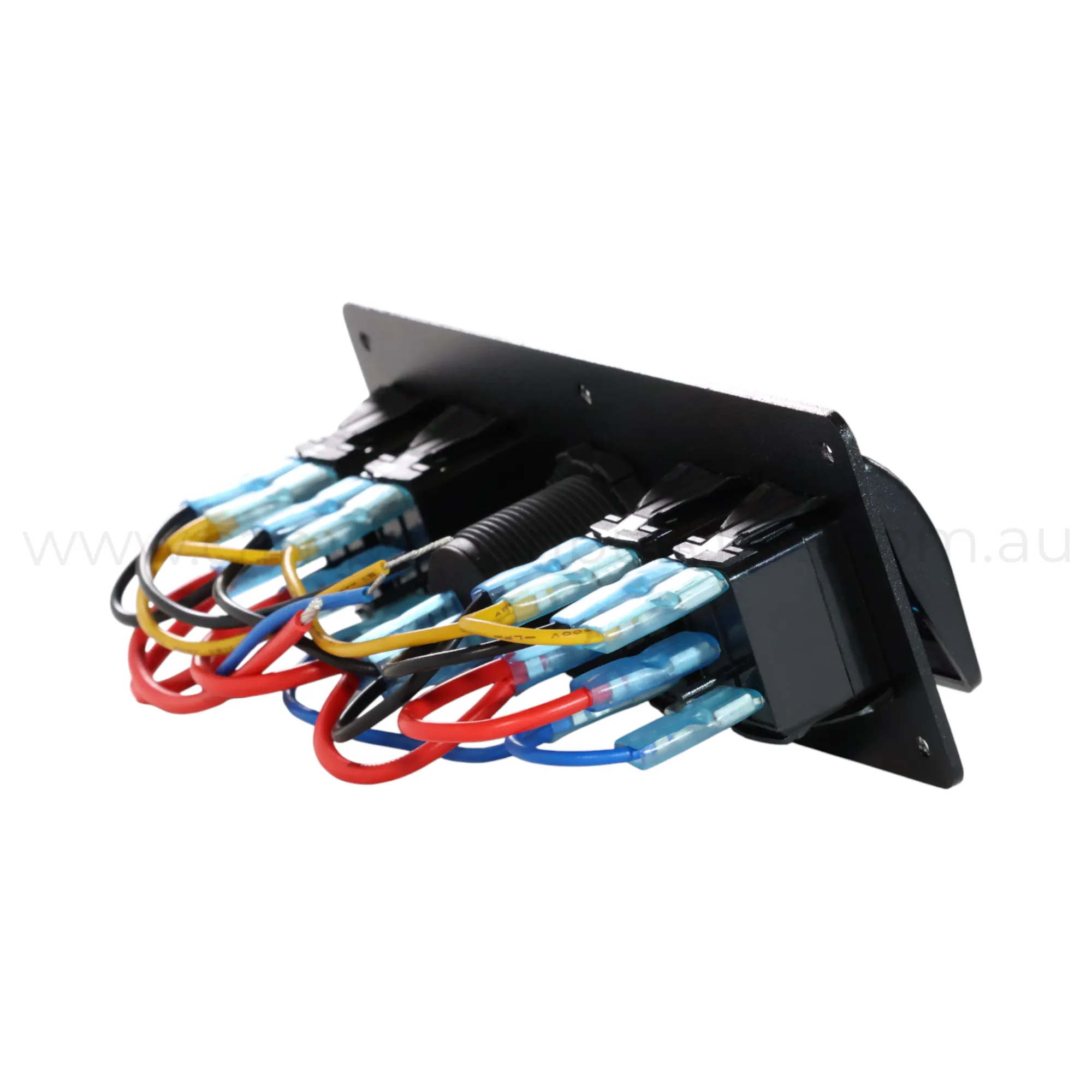

All dash light positive terminals are pre-wired together, requiring only a single positive connection, and all LED negatives are also pre-wired to a single negative connection. Each switch has a separate main power input to allow individual fused circuits if required, with pre-crimped male spade terminals fitted.
The panel also includes a pre-wired 12v cigarette style accessory socket, requiring only a single positive and negative connection for operation.
🔌 Compatibility
• Works with 12v and 24v DC systems.
• Suitable for 4WDs, campervans, caravans, boats, and off-grid setups.
• Ideal for lights, fans, pumps, fridges, and 12v plug-in accessories.
• Compatible with standard rocker switch label covers.
🧰 Installation Difficulty
🟢 2/5 (Easy)
Pre-wired panel with straightforward mounting and minimal wiring connections.
🔍 Features
• 4 × SPST rocker switches (on/off).
• Dual LED per switch for dash light and active status.
• Integrated 12v cigarette style accessory socket.
• Pre-wired LED circuits with shared positive and negative connections.
• Separate power feed to each switch for flexible circuit design.
• Aluminium mounting plate with a clean, professional finish.

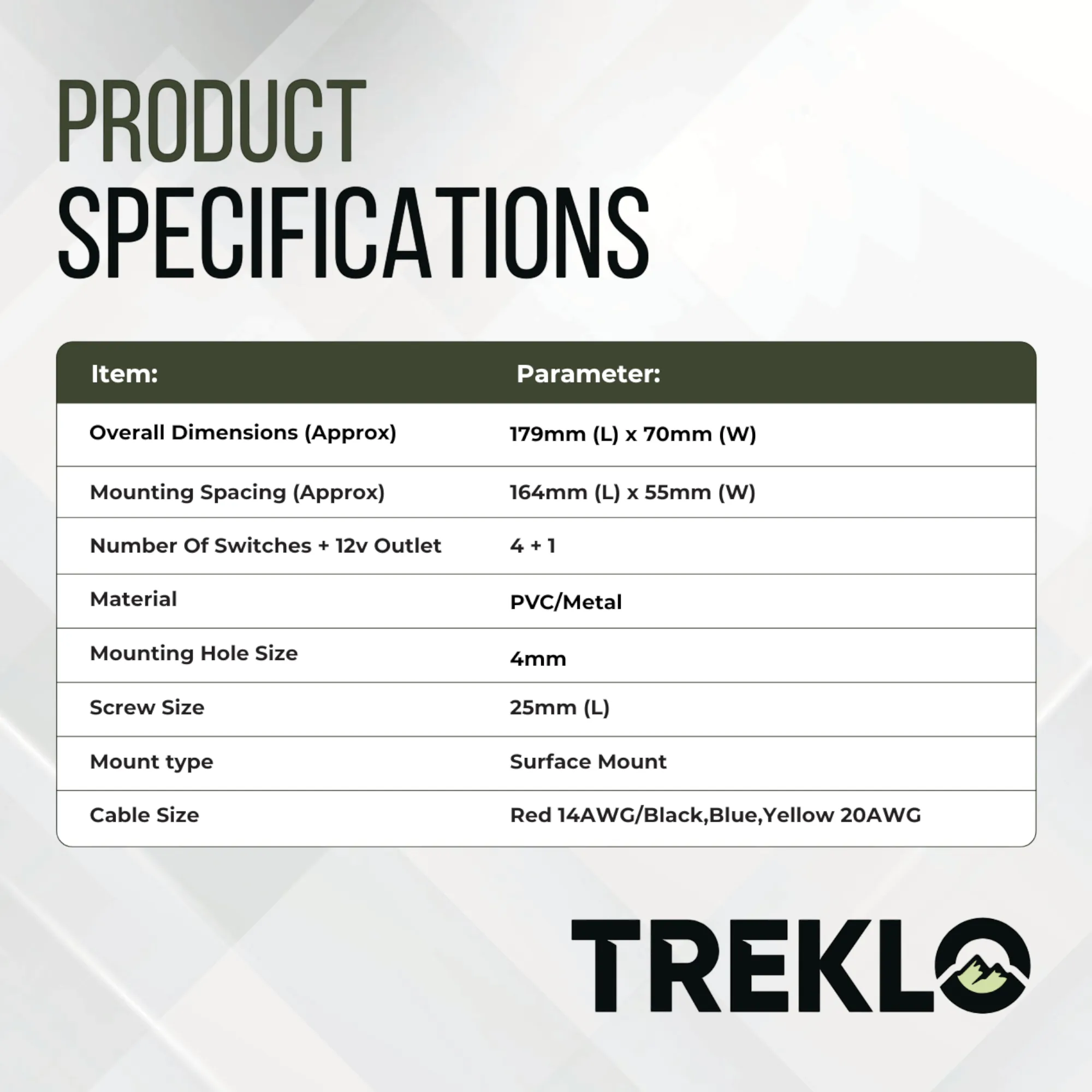

📊 Specifications
| Specification | Value |
|---|---|
| Input voltage | 12v / 24v DC |
| Maximum rating | 20A @ 12v / 10A @ 24v |
| Switch type | SPST on / off |
| Poles | Single pole |
| Throws | Single throw |
| LED type | Dual LED per switch |
| LED colours | Red / green / blue |
| Accessory outlet | 12v cigarette style socket |
| Materials | Aluminium |
| Depth required | Approx 75mm |
| Mounting hole diameter | 4mm countersunk |
📦 What’s Included
• 1 × pre-assembled and pre-wired switch panel.
• 4 × rocker switches.
• 1 × 12v cigarette style socket.

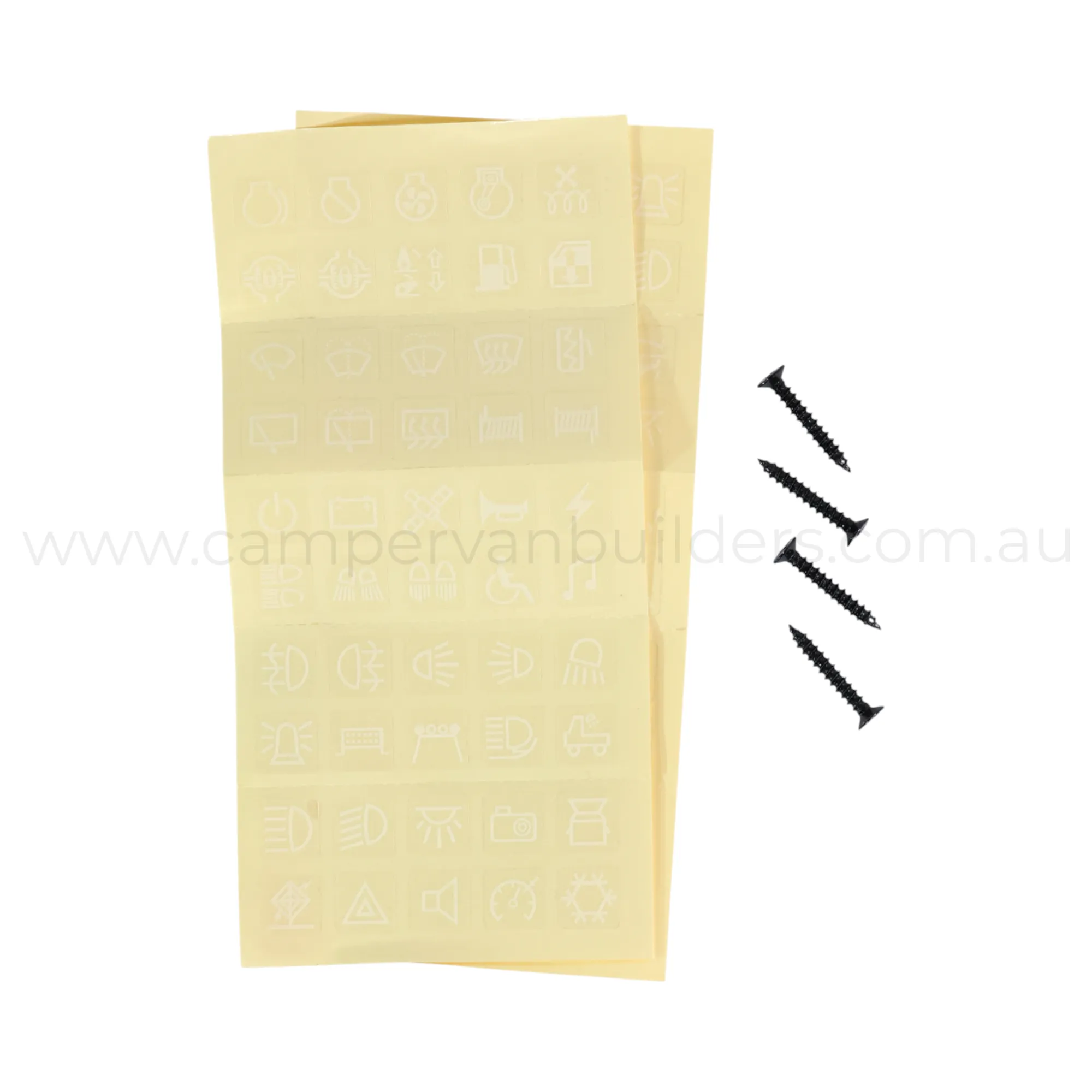

• 1 × sticker / label pack.
• 4 × mounting screws.
🙌 Why Choose This Product?
This panel provides a clean, all-in-one solution for switching and powering 12v accessories. With dual LED feedback, a built-in cigarette socket, and a strong aluminium build, it’s ideal for neat, professional installs in mobile and off-grid environments.
🚀 Our Promise
Order today for same-day dispatch and enjoy reliable switching backed by quality components and a clean, listing-ready design.
