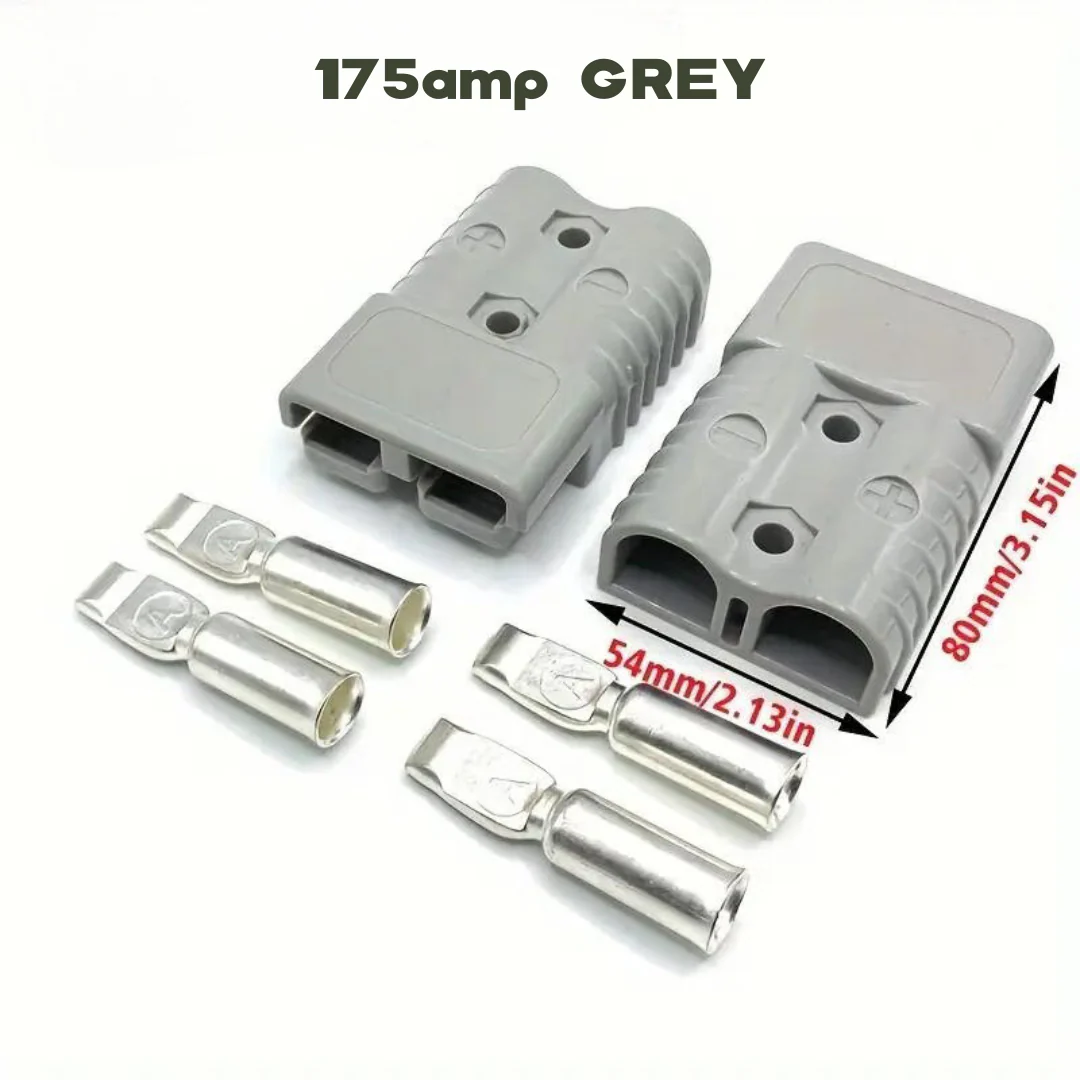

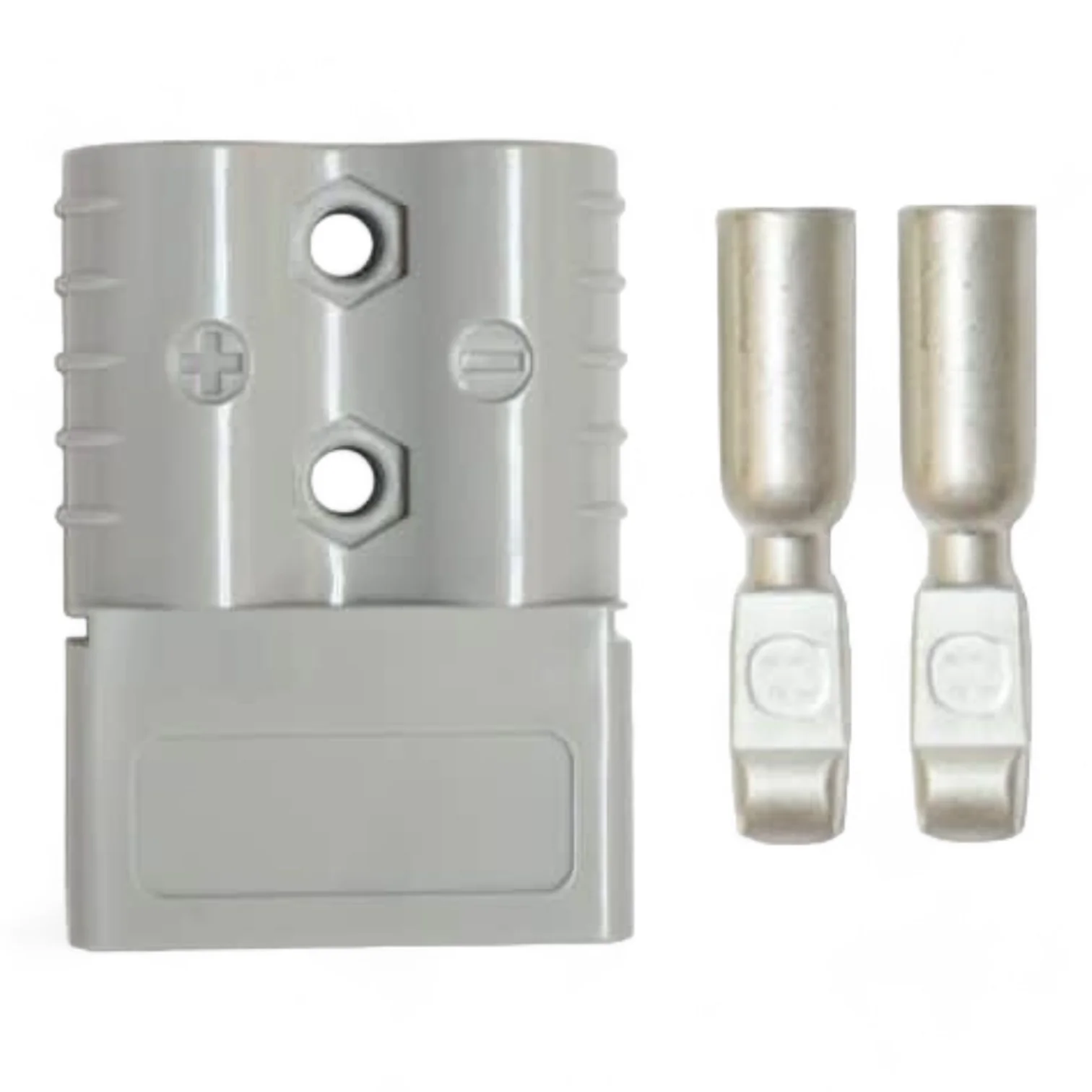

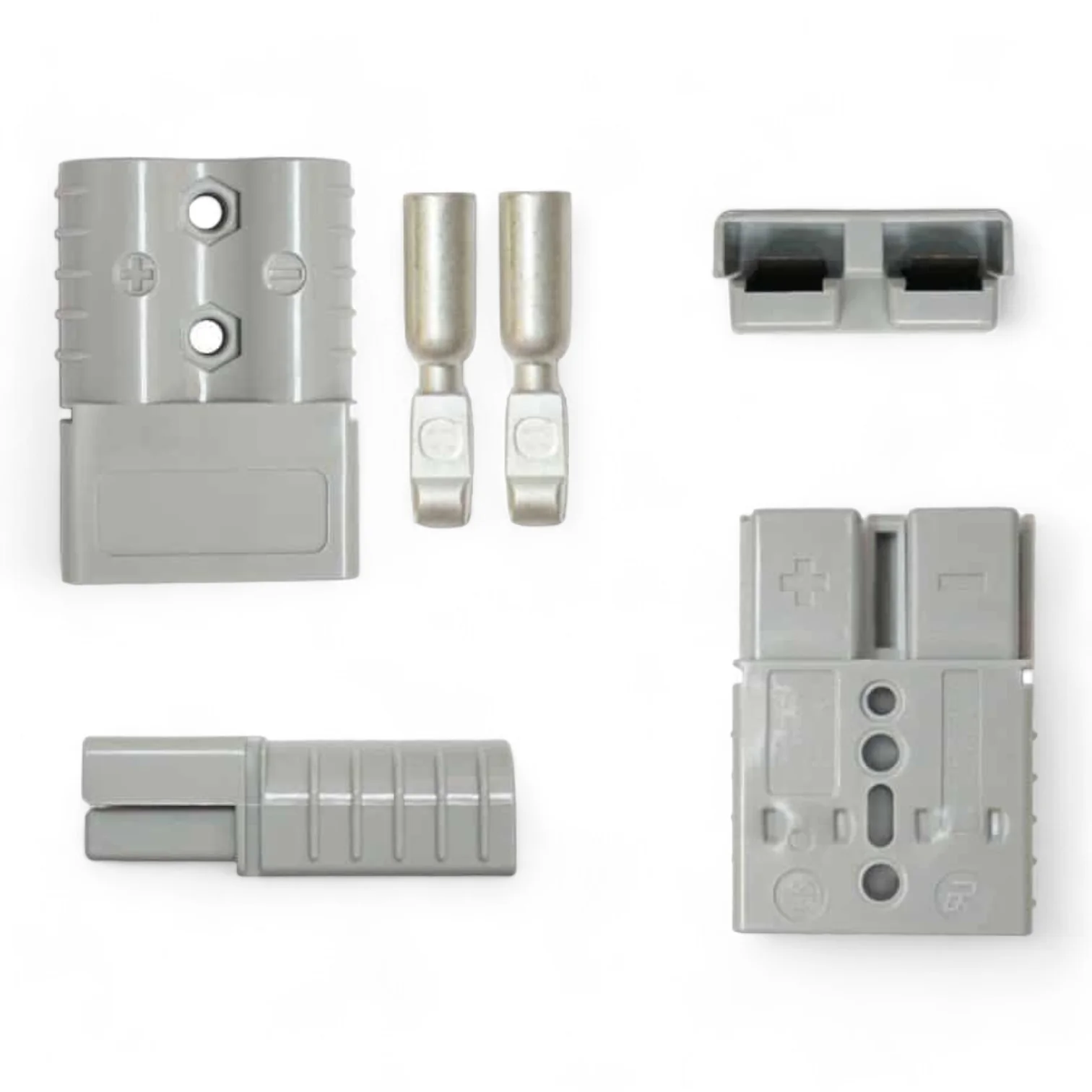

📝 175A Grey High Current DC Anderson Style Plug

The 175A Grey High Current DC Anderson Style Plug is a rugged, high-capacity connector designed for demanding DC power systems in caravans, 4x4 vehicles, RVs, boats, industrial equipment, and off-grid installations. Built with a tough polycarbonate housing and silver-plated contacts, this plug delivers reliable conductivity and secure engagement for very high-current applications.

⭐ Essential Benefits

• High-capacity connection – supports up to 175A for heavy-load DC systems.
• Durable polycarbonate housing – impact-resistant and built for harsh environments.
• Genderless design – identical plugs fit together for simple, error-free connection.
• Fast connect/disconnect – smooth terminal engagement for easy handling.
• Stainless locking springs – maintain secure retention during vibration and movement.
• Color-keyed housing – ensures correct grey-to-grey matching during installation.

⚙️ Functionality

This Anderson style plug uses flat wiping, silver-plated copper contacts to provide low-resistance engagement under extreme loads. Its genderless housing allows identical connectors to mate, simplifying wiring layouts. Stainless steel springs apply consistent locking pressure, ensuring stable contact retention across off-road, marine, and industrial environments.

🔌 Compatibility

• Works with matching grey-keyed 175A Anderson style connectors
• Suitable for 12v, 24v, and high-current DC systems
• Accepts large-gauge cable up to approx 1/0 AWG (50mm²)
• Ideal for inverters, high-output chargers, winches, battery links, and industrial equipment

🧰 Installation Difficulty

🟢 1/5 (Easy)
Crimp the cable to the contacts, insert into the housing until locked, and connect to a matching plug.

🔍 Features

• 175A high-current rating
• Silver-plated copper contacts
• Rugged polycarbonate housing
• Genderless keyed connector design
• Stainless steel locking springs
• Color-coded (Grey)

📊 Specifications

Specification	Detail
Current Rating	175A DC
Housing Color	Grey
Operating Voltage	Up to 600V DC
Contact Material	Silver-Plated Copper
Cable Size	Up to Approx 50MM² (1/0 AWG)
Housing Material	Polycarbonate
Dimensions	Approx 79 × 55 × 21MM

📦 What’s Included

• 1 × Grey 175A Anderson Style Housing
• 2 × Silver-Plated Contacts

🙌 Why Choose This Product?

With robust construction, high-current capability, and secure mechanical retention, this 175A Anderson Style Plug is built for serious power distribution. Ideal for demanding off-grid systems, inverters, recovery gear, and industrial setups, it provides reliable, low-loss connection where performance matters most.
