Wireless Relay Module With Remote Control - Black 9-72v
📝 Wireless Remote Control Relay Module – 9–72v DC / 85–265v AC
This wireless remote control relay module provides convenient remote switching for a wide range of electrical and automation applications. Operating across DC 9–72v and AC 85–265v, it allows devices to be turned on or off using a paired wireless remote, making it suitable for industrial control, security systems, and general electrical switching.
Using RF wireless technology, the signal can pass through walls, floors, doors, and windows, offering reliable control without line-of-sight requirements.
⭐ Essential Benefits
• Wide voltage compatibility – operates on DC 9–72v or AC 85–265v.
• Wireless remote control – enables convenient on/off switching without hardwired switches.
• Long-range RF signal – reliable control up to 50m in open areas with no obstacles.
• Signal penetration – RF signal passes through walls, floors, doors, and windows.
• Multiple working modes – supports momentary, toggle, interlock, and timed operation.
• Learning function – easily pairs with compatible remotes.
• Multiple units supported – two or more receivers can be used in the same area without interference.
⚙️ Functionality
This module uses a learning key to pair with a wireless remote. Once paired, the relay can be controlled remotely using one of several selectable working modes.
Supported operating modes include:
• Momentary mode – relay activates only while the button is pressed.
• Toggle mode – press once to turn on, press again to turn off.
• Interlock mode – supports multi-button control behaviour.
• Delay modes – selectable automatic shut-off times of 5s, 10s, 15s, or 20s.
LED indication confirms successful pairing and mode selection.
🔌 Wiring Options
• DC wiring: 9–72v DC input
• AC wiring: 85–265v AC input
• Relay output: Normally open switching via screw terminals
The relay output is electrically isolated from the control circuit, allowing safe switching of compatible loads.
🔧 Applications
This remote switch is widely used in industrial control and security fields, including:
• Lighting systems
• Motors and lifting equipment
• Electric doors and windows
• Remote controllers and wireless switches
• Security alarms and access systems
• Wireless door alarms and control equipment
• General automation and control machinery
🧰 Installation Difficulty
🟡 3/5 (Moderate)
Requires basic electrical wiring knowledge. Installation should be completed and verified by a suitably qualified person.
🔍 Features
• Wireless RF remote control
• Learning button with LED status indication
• Selectable delay timing (5s / 10s / 15s / 20s)
• Momentary and latching control modes

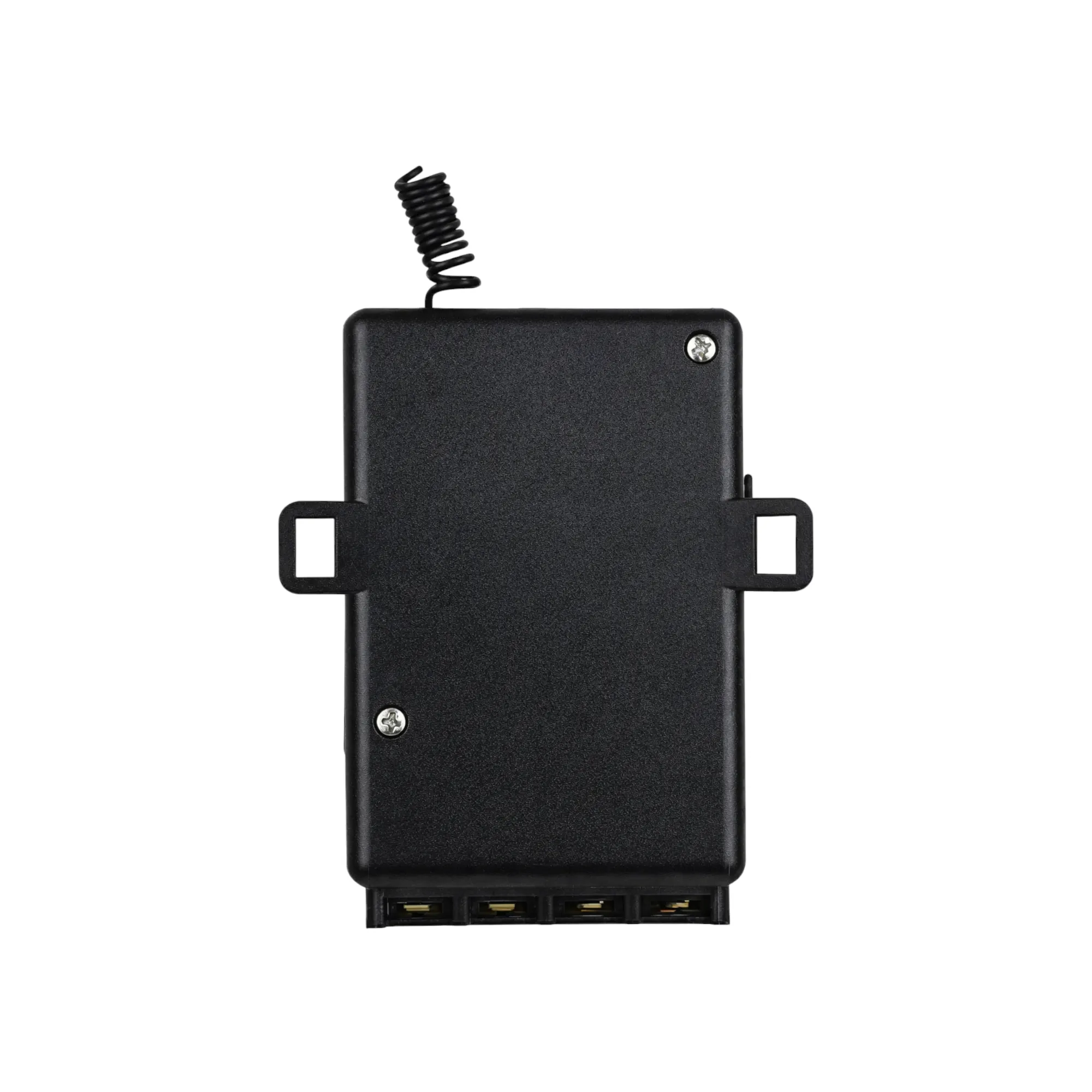

• Compact enclosed relay housing

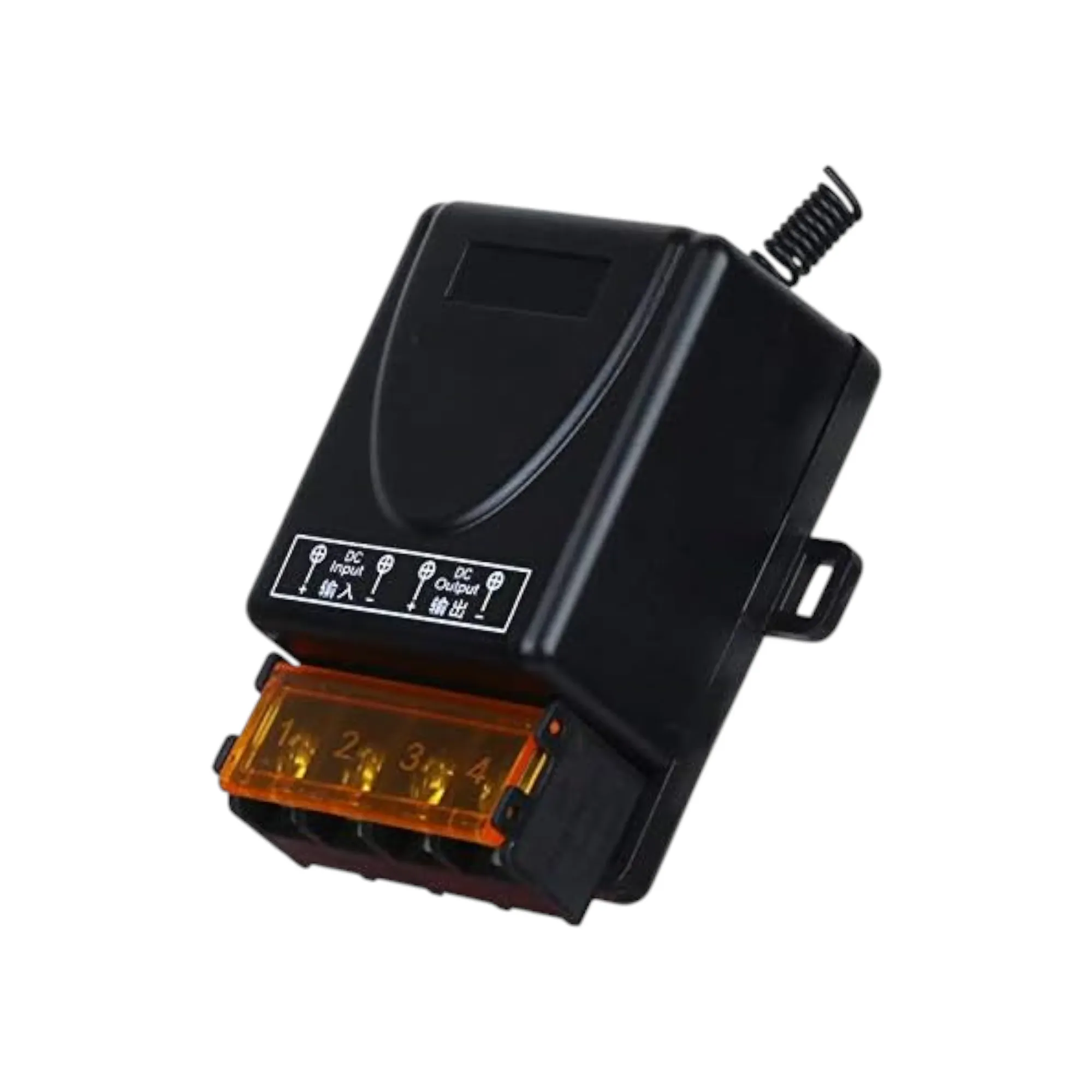

• Screw terminal connections
📊 Specifications
| Specification | Detail |
|---|---|
| Input voltage (DC) | 9–72v DC |
| Input voltage (AC) | 85–265v AC |
| Control signal | Wireless RF |
| Maximum control range | Up to 50m (no obstacle) |
| Relay type | Single relay output |
| Working modes | Momentary, toggle, interlock, delay |
| Delay settings | 5s / 10s / 15s / 20s |
| Learning function | Yes |
📦 What’s Included

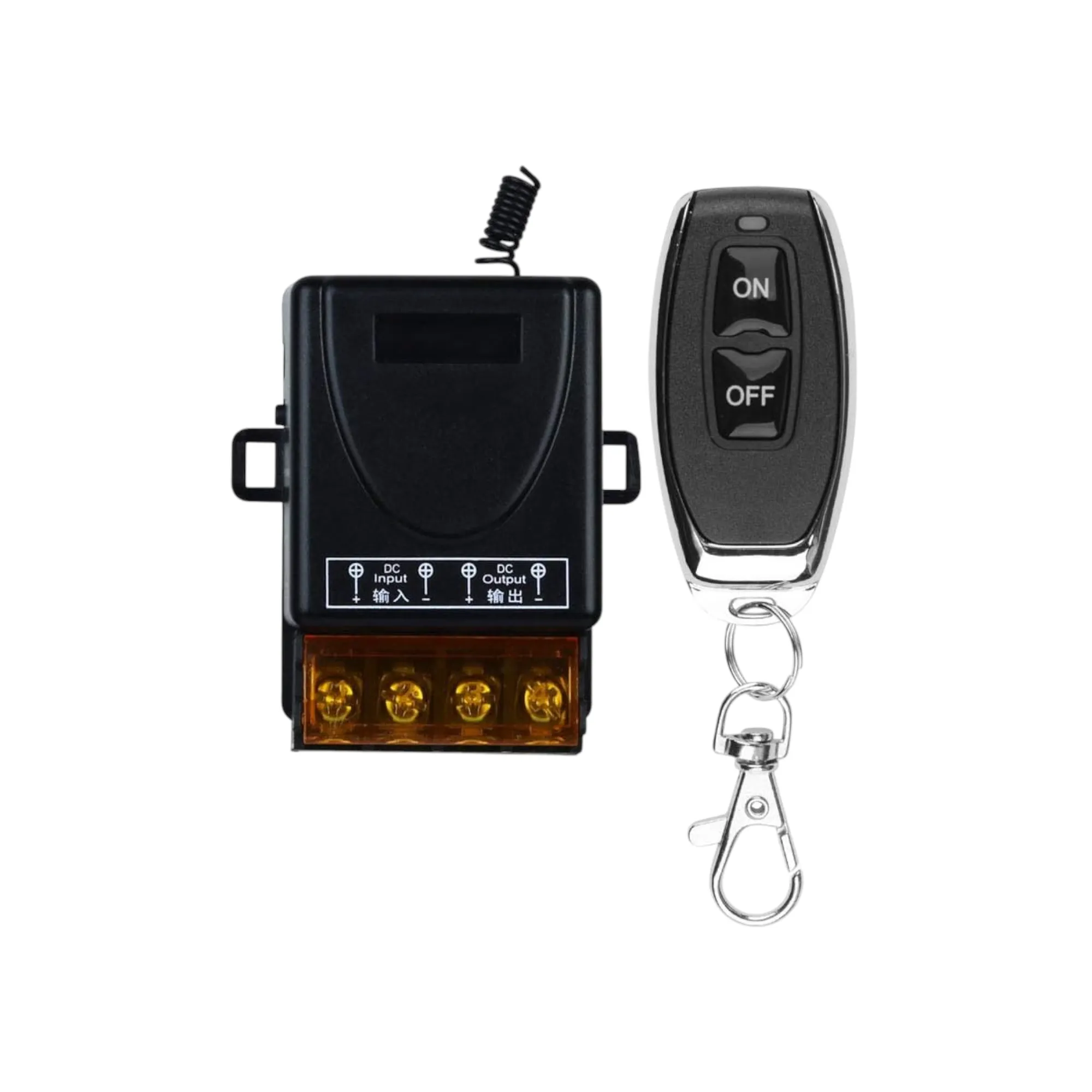

• 1 × wireless relay control module
• 1 × compatible remote control
🙌 Why Choose This Product?
This module delivers reliable wireless switching with strong signal penetration and flexible control modes. Its wide voltage range and long RF operating distance make it ideal for industrial, security, and automation applications where hardwired switching is impractical.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of wireless control modules, relays, and electrical accessories.
