Victron Battery Monitor BMV-712 (Black) Smart
📝 Victron Battery Monitor BMV-712 (Black) Smart
The Victron BMV-712 Smart Battery Monitor (Black) delivers precision monitoring for battery systems in caravans, RVs, boats, and off-grid setups. Acting as a highly accurate fuel gauge, it tracks voltage, current, amp-hours, time-to-go, and power in watts. With Bluetooth built-in, it connects seamlessly to the VictronConnect app for setup, programming, and real-time monitoring.
⭐ ESSENTIAL BENEFITS
• Accurate monitoring – real-time voltage, current, state of charge, and power usage.

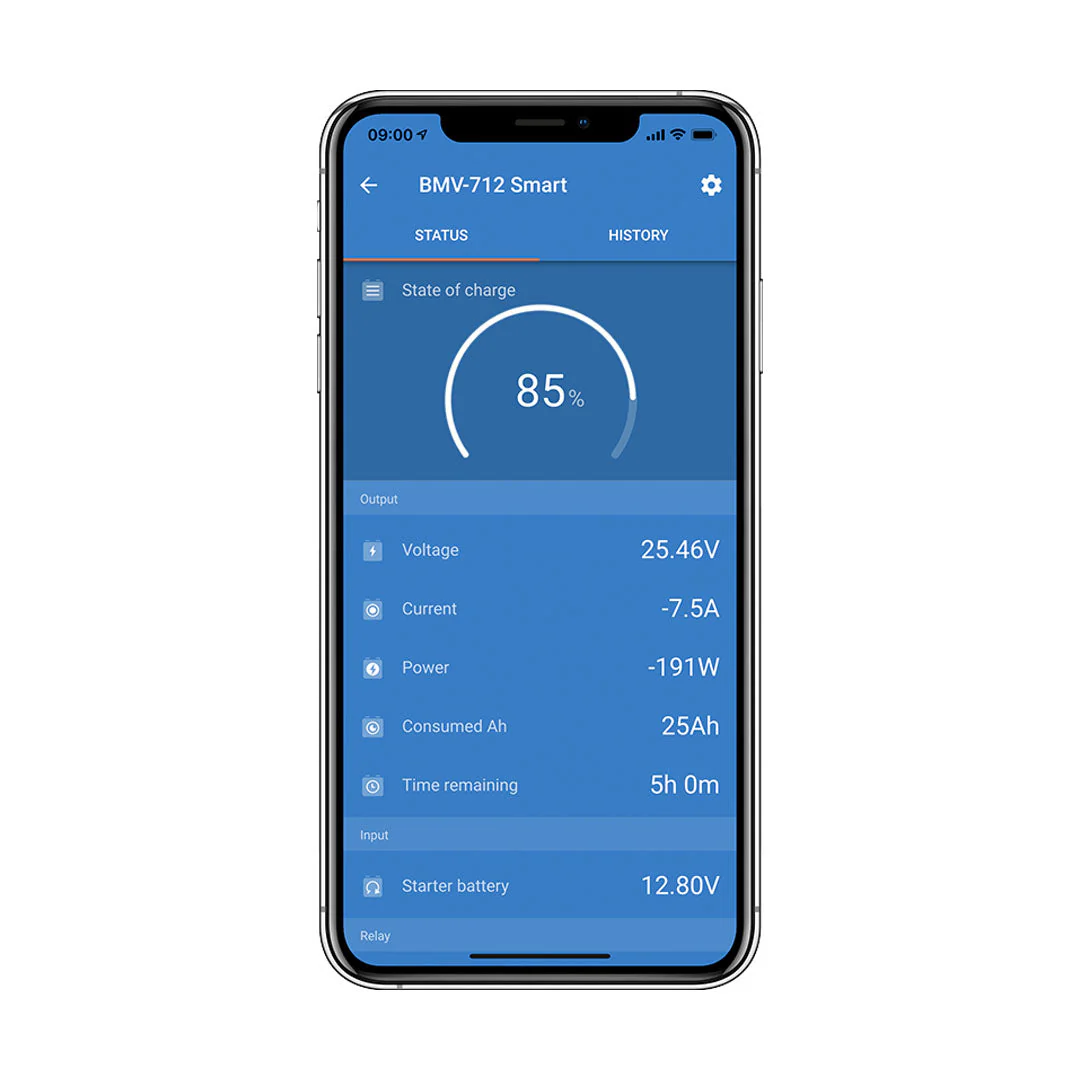

• Bluetooth built-in – easy configuration via the VictronConnect app.
• Dual input – monitor a second battery, temperature, or midpoint voltage.
• Smart midpoint monitoring – detects imbalances in series-connected batteries.
• Quick installation – includes 10m RJ12 cable, 2m battery cable with fuse, and 500A shunt.
• Programmable relay and alarms – manage loads or trigger a generator automatically.

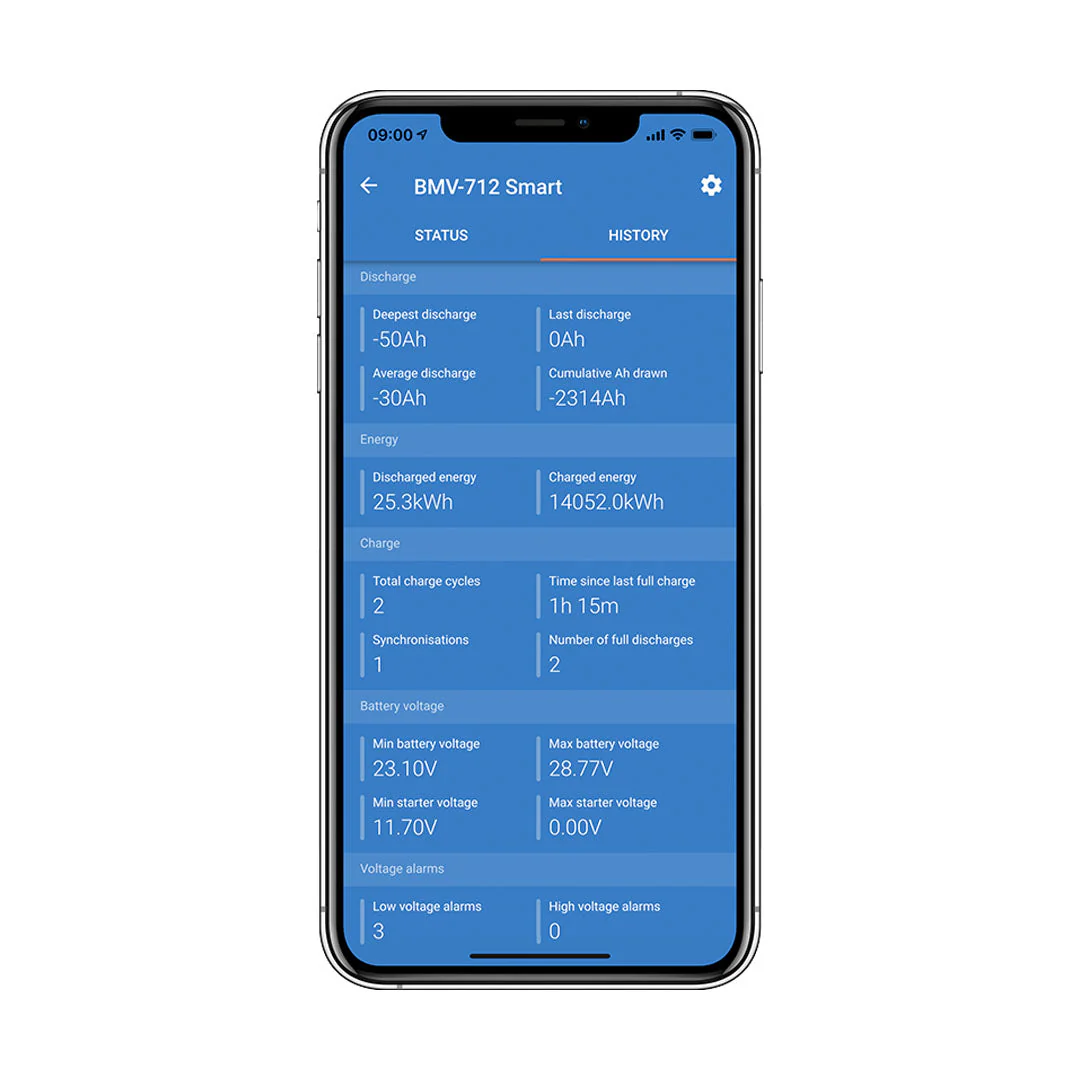

• Historical logging – assess performance and battery health.
• Wide voltage range – compatible with 12V and 24V battery systems.
⚙️ HOW IT WORKS
The BMV-712 continuously measures current and voltage, using algorithms to calculate state of charge and time-to-go. It connects via Bluetooth or VE.Direct for system integration and features a bi-stable alarm relay to minimise power draw.
🔌 COMPATIBILITY
• Works with 12V, 24V, and 48V systems
• Compatible with LiFePO4, AGM, Gel, and Lead-Acid batteries
• Integrates with VictronConnect, Cerbo GX, Color Control GX, and VRM Portal
🧰 INSTALLATION DIFFICULTY
🟡 Moderate (3/5) – simple installation using the supplied shunt and cables.
🔍 FEATURES
• Real-time monitoring – voltage, current, amp-hours, watts, and time-to-go.
• Bluetooth Smart built-in – setup and monitoring via mobile app.
• Programmable relay – automate load control or generator start.
• Midpoint voltage tracking – early detection of cell imbalance.
• Low power draw – only 2.9Ah/month @12V.
• 500A shunt included – expandable up to 10,000A.
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | BMV-712 Smart (Black) |
| Voltage Range | 6.5–95V DC |
| Rated Current | 500A |
| Communication | Bluetooth, VE.Direct |
| Aux Input | 2nd battery / midpoint / temperature |
| Power Use | 2.9Ah/month @12V |
| Dimensions | 63 × 63 × 31 mm (monitor) |
| Mounting | Round/square bezel options |
| Weight | 0.9kg |
📦 WHAT’S INCLUDED
• 1 × Victron BMV-712 Smart Battery Monitor (Black)
• 1 × 500A shunt
• 1 × 10m RJ12 cable
• 1 × 2m battery cable with fuse
• Bezel kit, mounting ring, and screws
Data sheet here
Manual here
