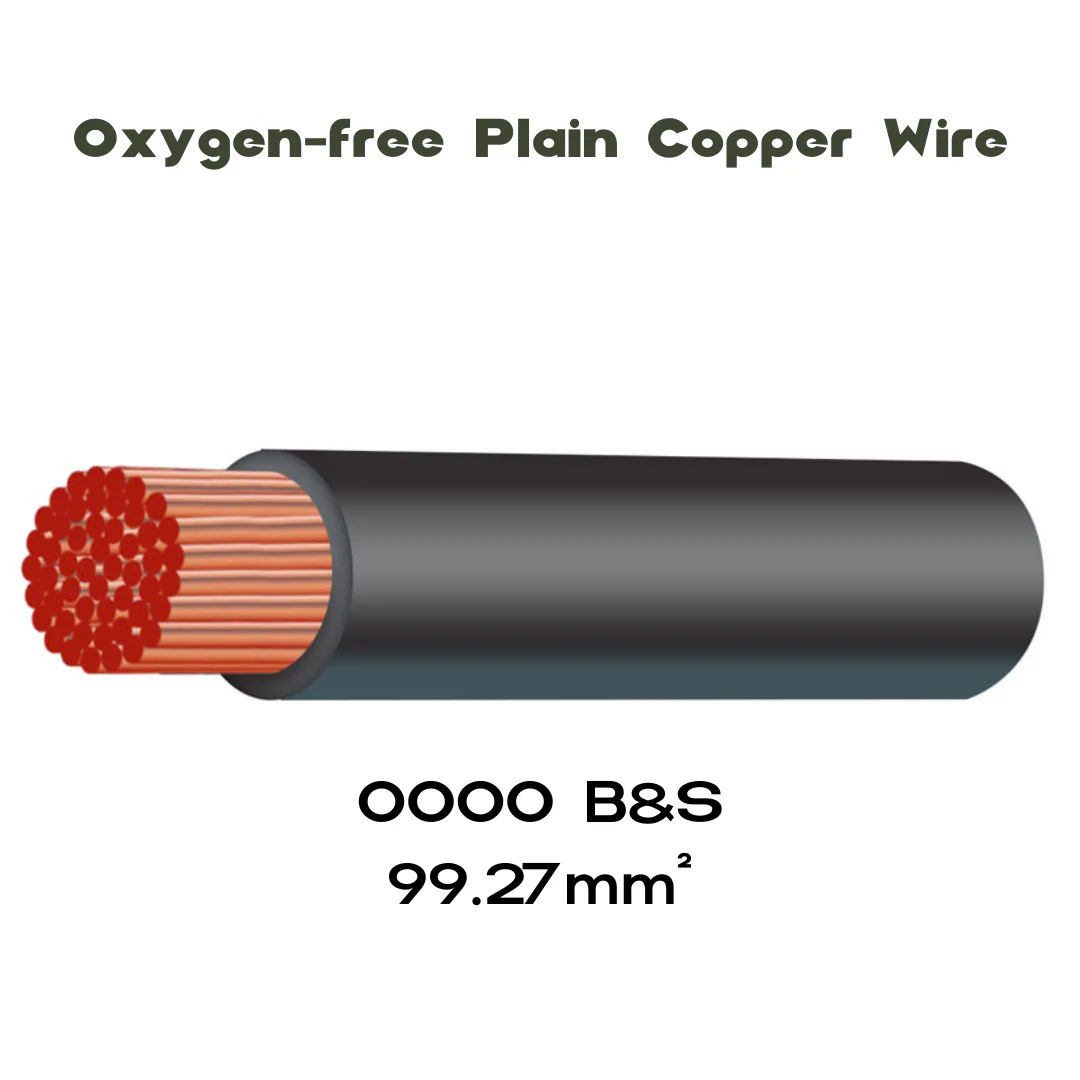

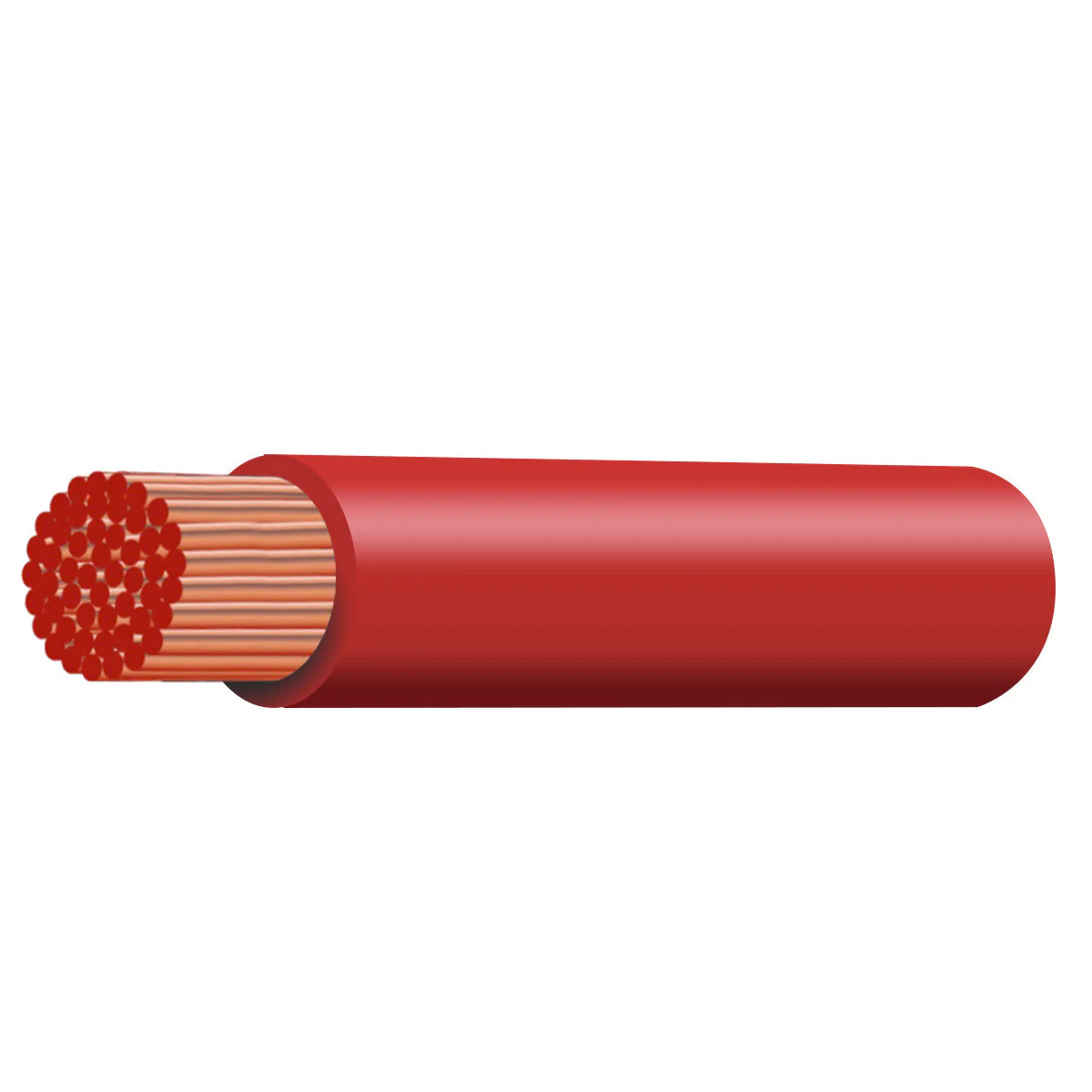

0000 B&S Single Core Battery Cable - Up to 399Amp
📝 0000 B&S Single Core Battery Cable – Up to 399A | Australian Made
Unleash the ultimate in power and performance with the 0000 B&S Single Core Battery Cable – Up to 399A, precision-engineered in Australia for extreme current capacity and reliability. Built with 99.98% oxygen-free copper and V90 PVC insulation, this heavy-duty cable is designed for dual battery systems, caravans, trucks, winches, and industrial power setups where performance and safety are critical.
⭐ Essential Benefits
• Unmatched amp capacity – rated up to 399 amps at 30°C, perfect for the most demanding electrical installations.
• Exceptional conductivity – built with 1235 strands of 0.32mm oxygen-free copper, providing ultra-low resistance and excellent flexibility.
• Heavy-duty insulation – double-insulated with V90 PVC, compliant with AS/NZS 3808, offering premium protection against heat and wear.
• Custom-cut precision – available by the metre for projects up to 30m, ensuring no waste and a perfect fit every time.
• Colour-coded sheaths – available in black and red for easy polarity identification and clean, professional wiring.
• Australian made – manufactured locally for guaranteed quality, consistency, and compliance with Australian standards.
⚙️ Functionality
The 0000 B&S single core cable provides exceptional current flow and reliability in the harshest environments. Its large copper cross-section ensures efficient power delivery for winches, dual battery systems, and inverter setups, while the robust insulation withstands heat, vibration, and mechanical stress. This is the cable of choice for heavy-duty 4WD, marine, and off-grid applications where safety and performance are non-negotiable.
🔌 Compatibility
• Compatible with 12v and 24v DC systems
• Ideal for 4WDs, caravans, trucks, and marine electrical systems
• Suitable for inverters, winches, and high-capacity auxiliary power setups
🧰 Installation Difficulty
🟢 1/5 (Easy) – highly flexible despite its size, making it easy to route and terminate cleanly.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Rated to 399A continuous load at 30°C
• Double-insulated with V90 PVC (RoHS compliant)
• Compliant with AS/NZS 3808 and AS/NZS 1125 standards
• Low resistance for efficient current transfer
• Available in black or red outer sheaths
• Sold per metre (up to 30m)
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 399A |
| Nominal Area | 99.27mm² |
| Strand Count / Size | 1235 / 0.32mm |
| Electrical Resistance @ 20°C | 0.18 Ω/km |
| Insulation Thickness | 2.0mm |
| Nominal OD | 17.5mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre (up to 30m) |
| Weight (per 100m) | 110kg |
📦 What’s Included
• 1 × 0000 B&S (99.27mm²) 399A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
