TILE USB-A & C Interior Charging Socket - Stainless Steel Bezel

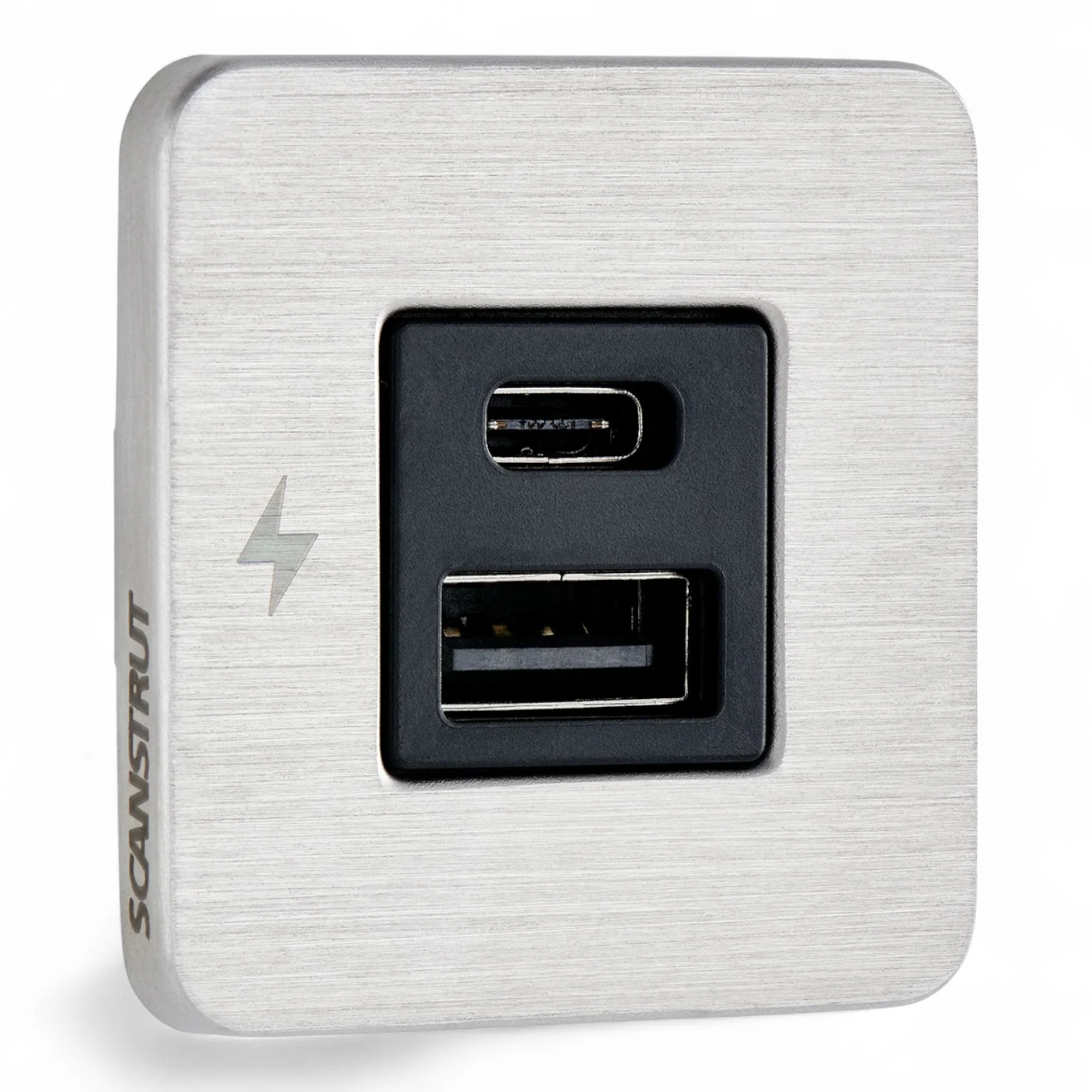

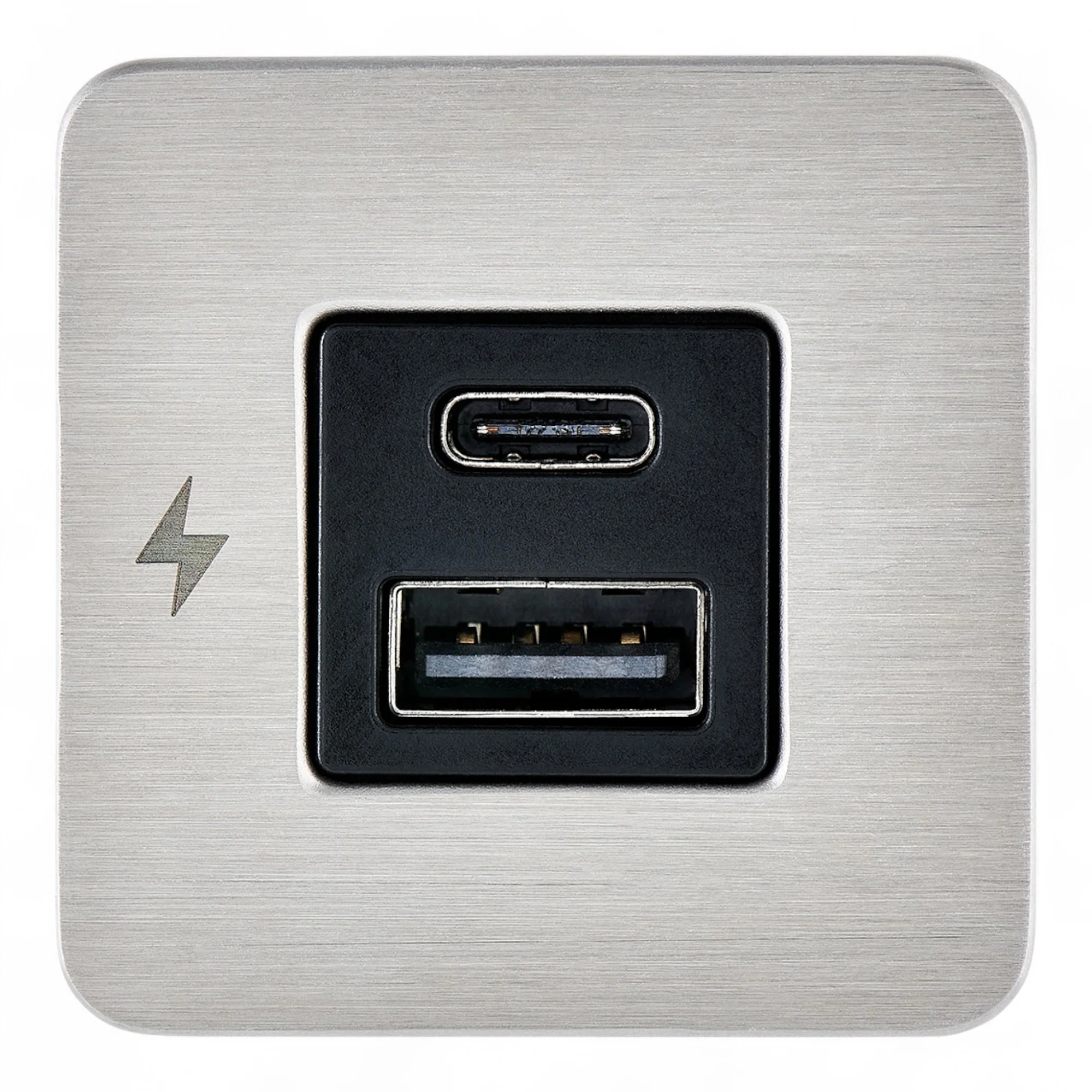

📝 Scanstrut TILE USB-A & USB-C Interior Charging Socket – Stainless Steel Bezel
The Scanstrut TILE USB-A & USB-C Charging Socket with a brushed stainless steel bezel provides a sleek and modern charging solution for campervans, caravans, RVs, and marine interiors. Designed for 12v and 24v DC systems, it delivers fast and efficient charging for phones, tablets, laptops, and other USB-powered devices.
With its ultra-compact design and front-fit installation, the TILE socket integrates cleanly into dashboards, cabinetry, and interior panels while maintaining a professional finish.
⭐ Essential Benefits
• Dual USB charging – charge one USB-A and one USB-C device simultaneously.
• Fast charging performance – delivers up to 60W output on 24v systems and 36W on 12v systems.
• Compact low-profile design – small 40mm bezel footprint for clean installations.
• Interior-ready durability – conformal-coated electronics help resist moisture and condensation.
• Modern stainless steel finish – brushed bezel complements premium interiors.
⚙️ Functionality
The TILE charging socket connects directly to your 12v or 24v DC power system and provides fast charging through both USB ports. The USB-C port supports higher power delivery, making it suitable for laptops and tablets, while the USB-A port provides reliable charging for phones, cameras, and accessories.
Its front-fit installation design allows for a clean panel-mounted finish with minimal visible hardware.
🔌 Compatibility
• 12v and 24v DC systems
• Phones, tablets, laptops, cameras, and GPS units
• Campervans, caravans, RVs, boats, and marine interiors
• Interior cabinetry, dashboards, and panel mounting
🧰 Installation Difficulty
🟢 2/5 (Easy) – simple panel installation using a 29mm cutout and standard DC wiring.
🔍 Features
• Dual USB charging ports (USB-A + USB-C)
• Up to 60W fast charging on 24v systems
• Stainless steel front bezel
• Compact 40mm square footprint
• Front-fit mounting design
• Conformal-coated electronics for interior durability
• Ultra-low standby power consumption
📊 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 10–32v DC |
| Max Input Current | 6A |
| Recommended Fuse | 10A |
| USB-C Output (12v system) | 5V⎓3A, 9V⎓3A, 12V⎓3A |
| USB-C Output (24v system) | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A |
| USB-A Output (12v system) | 5V⎓3A, 9V⎓3A, 12V⎓3A |
| USB-A Output (24v system) | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A |
| Max Power Output | Up to 60W |
| Standby Power Draw | <0.01W |
| Bezel Size | approx 40.4mm square |
| Cutout Size | 29mm |
| Depth | approx 66.5mm |
| Certifications | CE, FCC, UKCA, C-Tick, ROHS, WEEE |

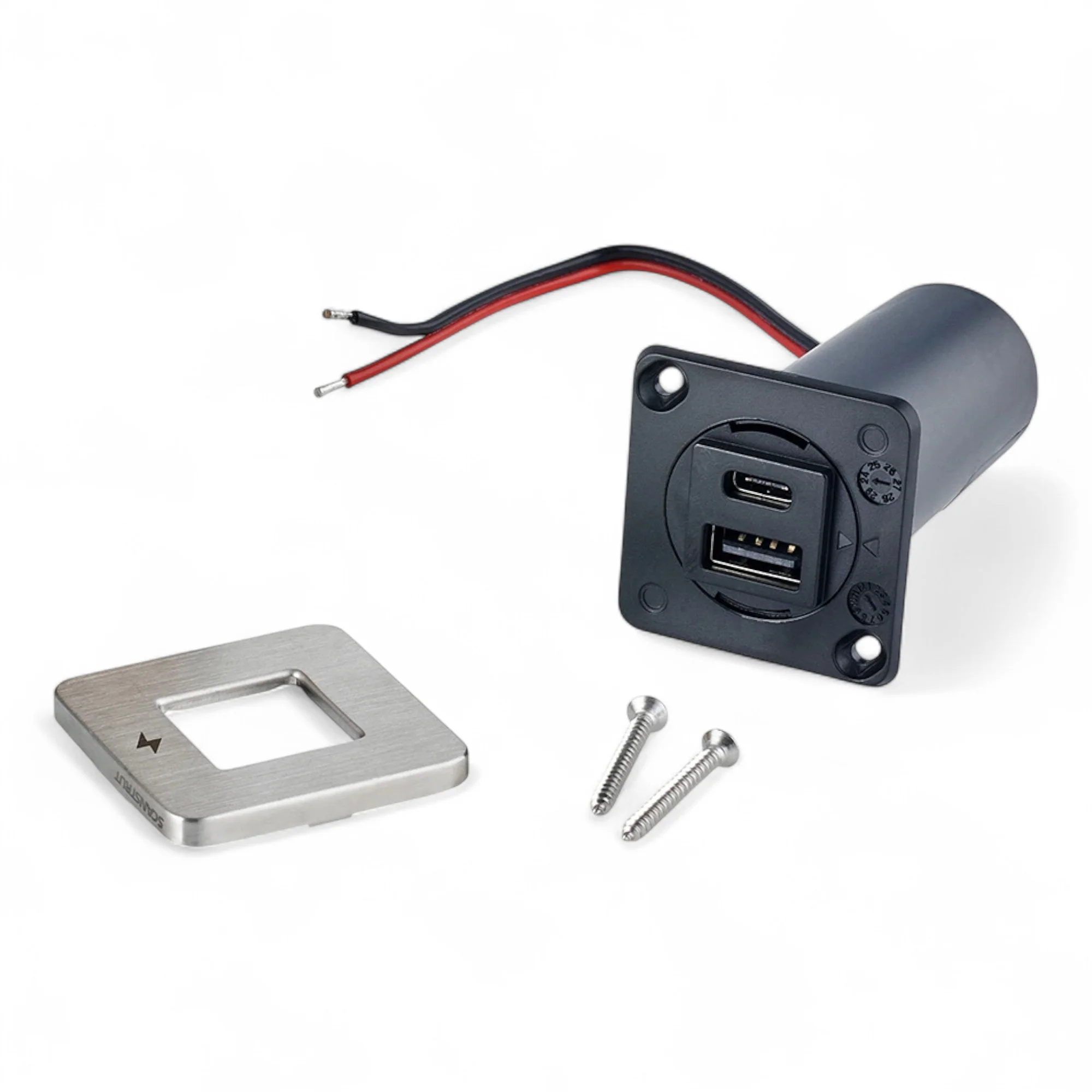

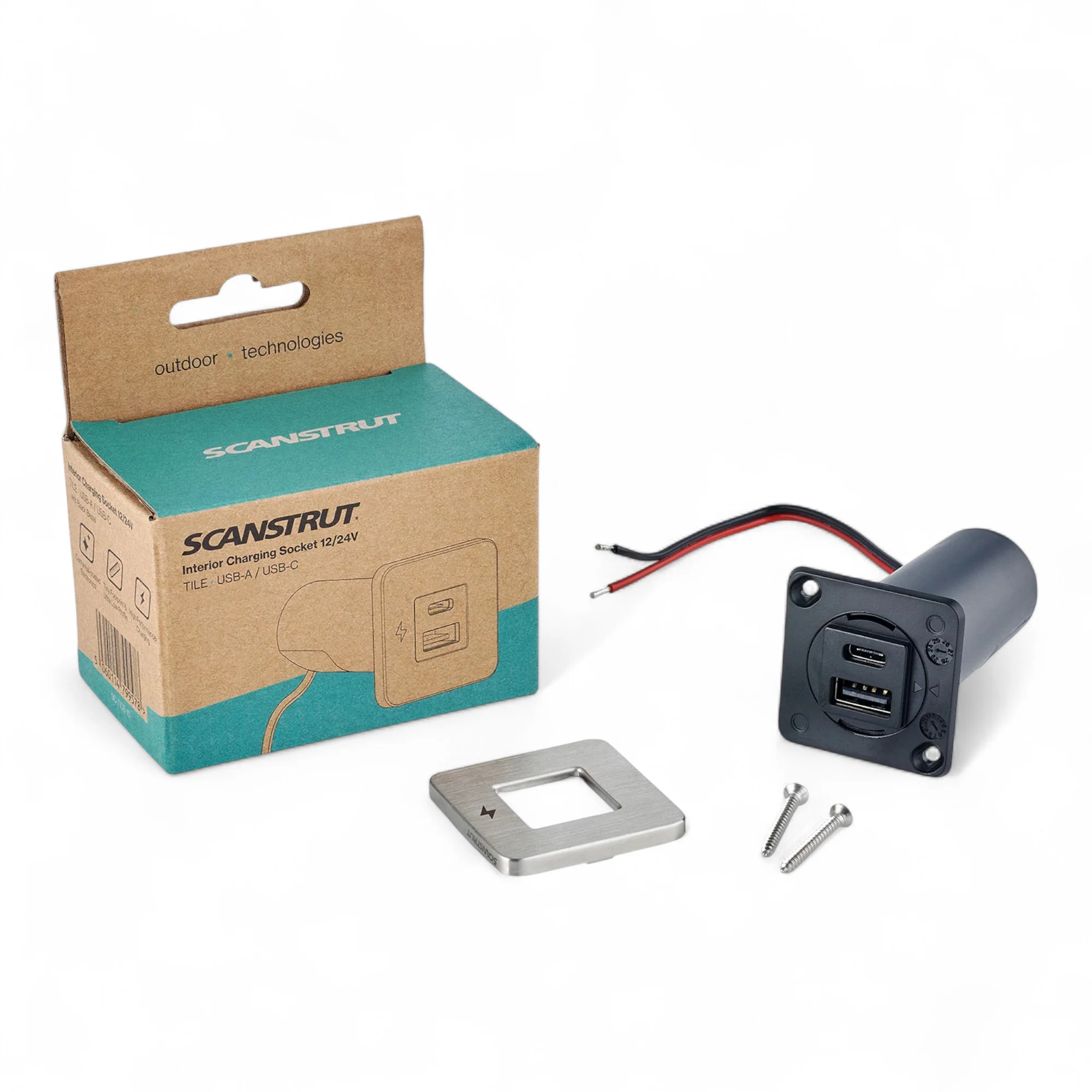

📦 What’s Included
• 1 × Scanstrut TILE USB-A & USB-C Charging Socket (Stainless Steel Bezel)
• Mounting hardware
• Installation instructions
🙌 Why Choose This Product?
The Scanstrut TILE charging socket delivers modern fast-charging performance in a compact, stylish design. With dual USB ports, stainless steel finish, and simple installation, it’s an ideal upgrade for campervans, caravans, RVs, and marine interiors.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid power and charging accessories.
