RCBO 16A With Earth Lead - Plug And Play

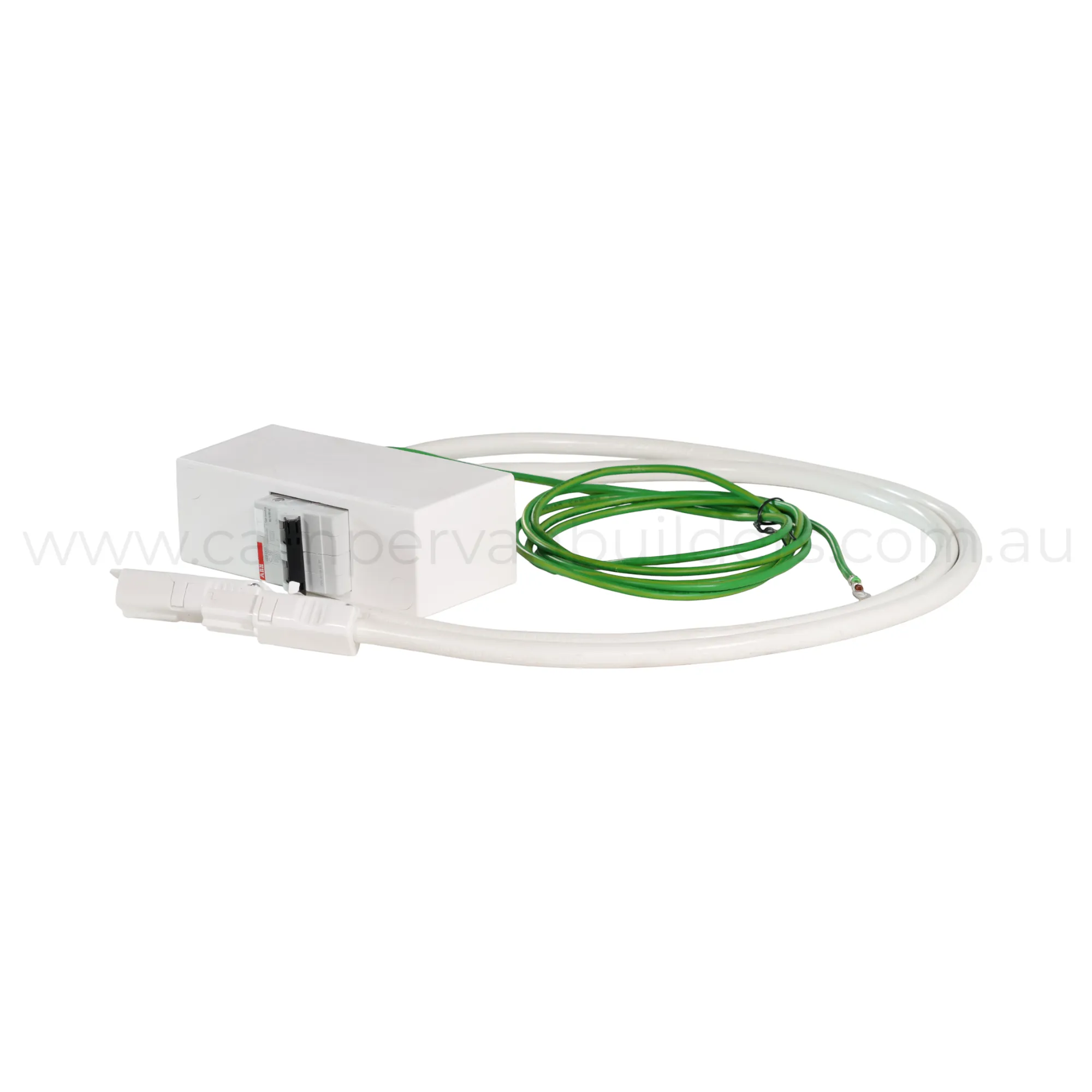

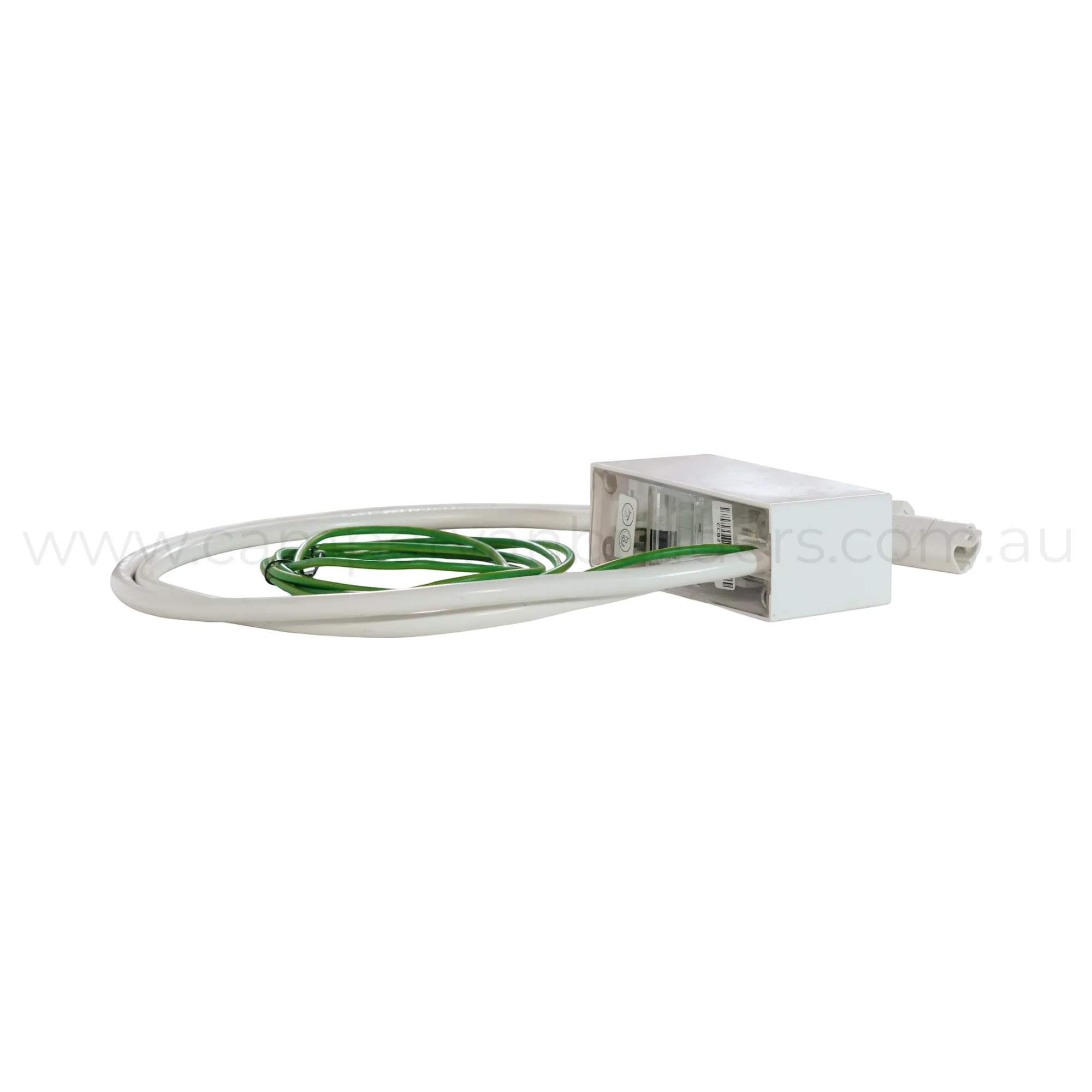

📝 RCBO Safety Switch / Circuit Breaker 16A With Earth Lead – Plug And Play
This 16a RCBO safety switch and circuit breaker is designed to integrate seamlessly into a plug-and-play 240v electrical system for motorhomes, caravans, and RV builds. Combining RCD and MCB protection in a single compact unit, it provides overload protection, short circuit protection, and earth leakage protection in one pre-wired solution.
Supplied ready to connect, this unit simplifies installation during construction while supporting efficient final inspection and testing by a qualified electrician.
⭐ Essential Benefits
• Combined RCD and MCB protection – overload, short circuit, and earth leakage protection in one unit.
• Plug-and-play design – pre-wired for fast, clean integration into compatible systems.
• 16a rating – suitable for standard 240v RV and motorhome circuits.
• Pre-wired power leads – approximately 800mm per power lead for flexible placement.
• Dedicated earth lead included – approximately 2m length with 4mm ring terminal pre-fitted.
• Compact safety solution – reduces wiring complexity and component count.
• White housing – clean, neutral finish suited to RV interiors and service areas.
⚙️ Functionality
This RCBO combines a residual current device (RCD) and miniature circuit breaker (MCB) into a single unit, providing comprehensive circuit protection. It automatically disconnects power in the event of an overload, short circuit, or earth leakage fault.
The unit is supplied pre-wired, with plug-and-play connectors on the power leads for direct integration into compatible inlets and outlets. The earth lead is terminated with a 4mm ring terminal, allowing quick and secure connection to the vehicle earth point.
🔌 Compatibility
• Motorhomes, caravans, campervans, and RV builds
• Compatible plug-and-play 240v connection leads and outlets
• Designed for concealed installation during construction
• Final inspection and testing to AS/NZS 3000:2018 by a qualified electrician
🧰 Installation Difficulty
🟡 3/5 (Moderate)
Designed for installation during vehicle construction. Final connection, inspection, and testing must be completed by a qualified electrician.
🔍 Features
• RCBO type protection (RCD + MCB)
• 16a circuit rating
• 240v AC operation
• Pre-wired power leads (approx 800mm each)
• Earth lead approx 2m with 4mm ring terminal
• Plug-and-play click-together connectors
• White housing for clean installs
📊 Specifications
| Specification | Detail |
|---|---|
| Product type | RCBO safety switch / circuit breaker |
| Protection type | RCD + MCB |
| Rated current | 16a |
| Voltage | 240v AC |
| Colour | White |
| Power lead length | Approx 800mm each |
| Earth lead length | Approx 2m |
| Earth termination | 4mm ring terminal |
| Connection type | Plug-and-play |
| Compliance | Final installation to AS/NZS 3000:2018 |
📦 What’s Included
• 1 × 16a RCBO safety switch / circuit breaker (white)
• Pre-wired power leads
• Pre-wired earth lead with 4mm ring terminal
🙌 Why Choose This Product?
This RCBO provides a compact, all-in-one safety solution for 240v RV electrical systems. With combined protection, pre-wired leads, and plug-and-play compatibility, it helps streamline installs while maintaining a professional, compliant electrical layout.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of plug-and-play RV electrical components.
