MRBF Fuse 12-48v - 300A
📝 MRBF Fuse 12–48v – 300A

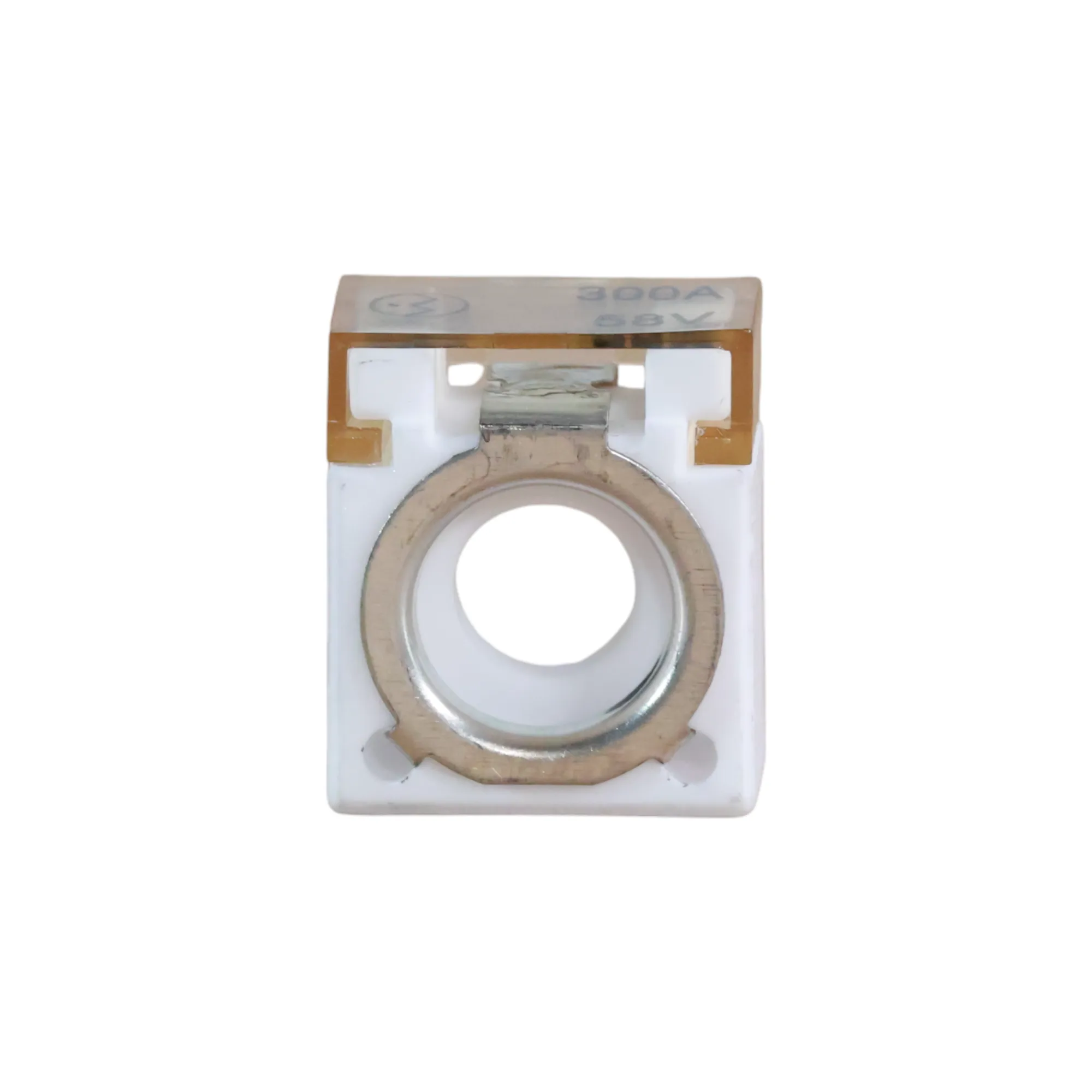

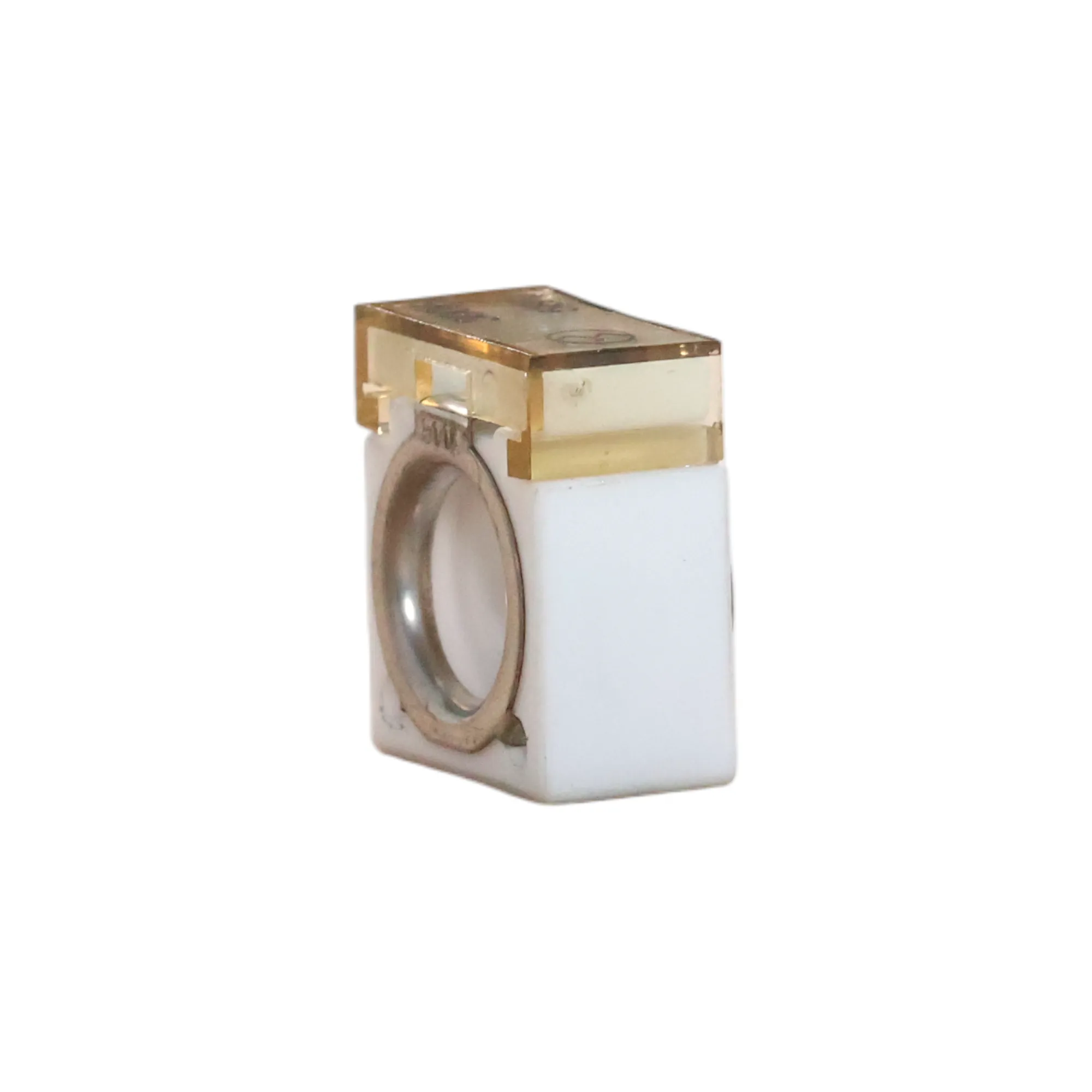

The MRBF Fuse 12–48v – 300A is a high-current, marine-rated battery terminal fuse designed to protect large inverter feeds, battery interconnects, and heavy-duty distribution circuits. Mounted directly at the battery terminal, it provides immediate protection against short circuits and overloads in 12v, 24v, and 48v systems.
With a compact footprint and ceramic insulating body, this fuse is ideal for marine, RV, motorhome, and off-grid power systems where space, reliability, and safety are critical.
⭐ Essential Benefits
• 300A high-current rating – suitable for large inverters and main battery feeds.
• Direct battery terminal protection – minimises cable length and voltage drop.
• Wide system compatibility – designed for 12v, 24v, and 48v systems (rated up to 58v).
• Compact terminal-mounted design – ideal for tight battery compartments.
• Ceramic insulating body – excellent heat resistance and electrical isolation.
• M8 terminal stud – supports clean terminal stacking and secure connections.
⚙️ Functionality
This MRBF fuse installs directly onto the battery terminal to protect downstream wiring and connected equipment at the source. If current exceeds 300 amps, the fuse safely opens the circuit to prevent cable damage, battery faults, or electrical hazards.
Its terminal-mounted design improves system safety while keeping battery layouts neat and serviceable.
🔌 Compatibility
• 12v, 24v, and 48v DC electrical systems
• Marine battery systems
• RVs, motorhomes, and caravans
• Off-grid and auxiliary battery banks
• High-current inverter and distribution circuits
🧰 Installation Difficulty
🟢 2/5 (Easy)
Installs directly onto battery terminals using standard M8 hardware.
🔍 Features
• Marine rated MRBF design
• 300 amp current rating
• Ceramic insulating body
• Isolated stud construction
• Standard M8 (5/16") terminal stud
• Compact, space-efficient form factor
📊 Specifications
| Specification | Value |
|---|---|
| Fuse type | MRBF (Marine Rated Battery Fuse) |
| Rated current | 300A |
| Voltage rating | Up to 58v DC |
| System compatibility | 12v / 24v / 48v |
| Terminal stud | M8 (5/16") |
| Insulating body material | Ceramic |
| Weight | 0.07kg |
| Mounting | Battery terminal |
| Compliances | ISO 8820-6, DIN 72581-5 |
📦 What’s Included
• 1 × MRBF battery terminal fuse (300A)
🙌 Why Choose This Product
This 300A MRBF fuse delivers dependable, high-current protection right at the battery terminal. Its compact size, ceramic insulation, and compliance with international standards make it a trusted choice for demanding marine, RV, and off-grid electrical systems.
🚀 Our Promise
Order today for same-day dispatch and protect your battery system with reliable, marine-rated circuit protection.
