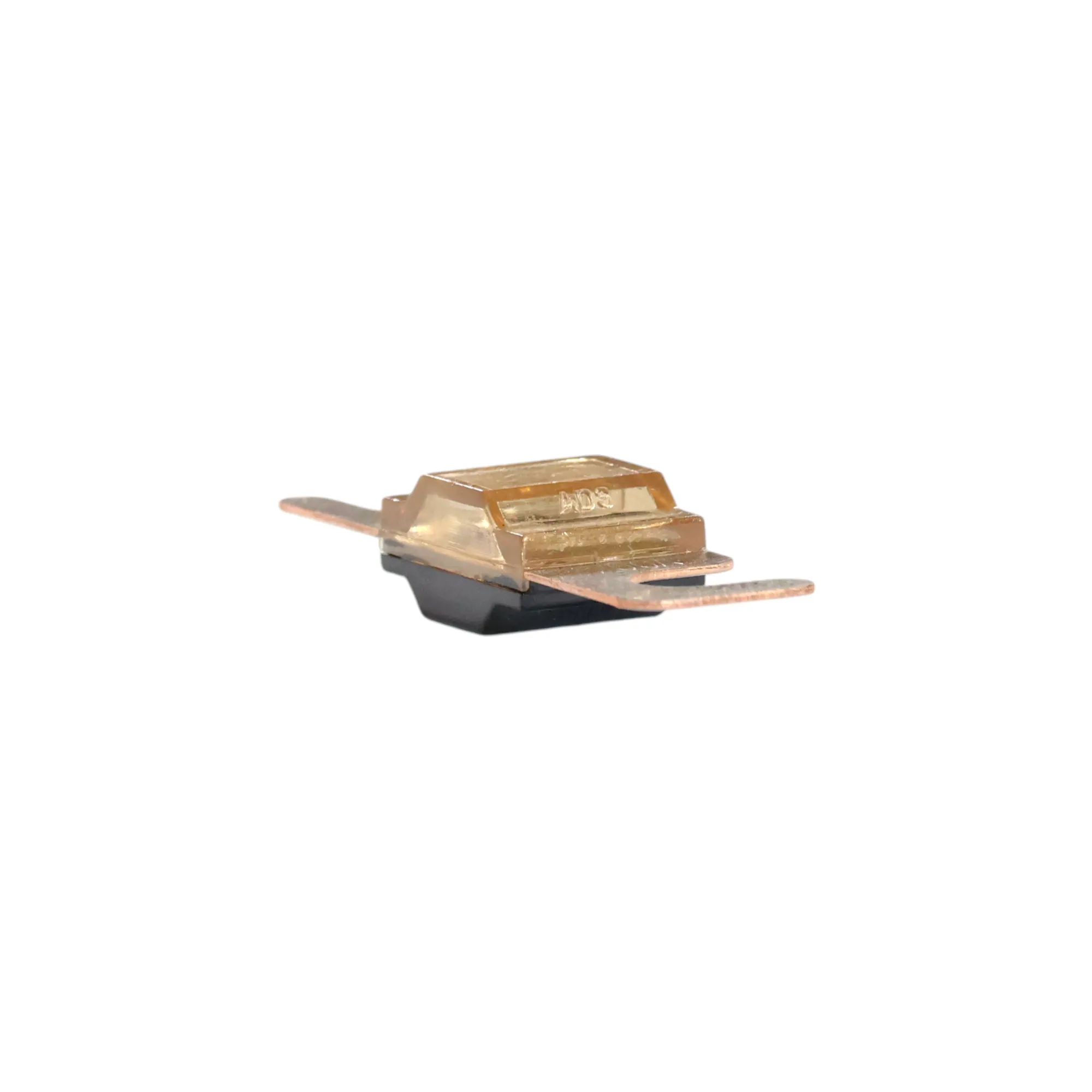

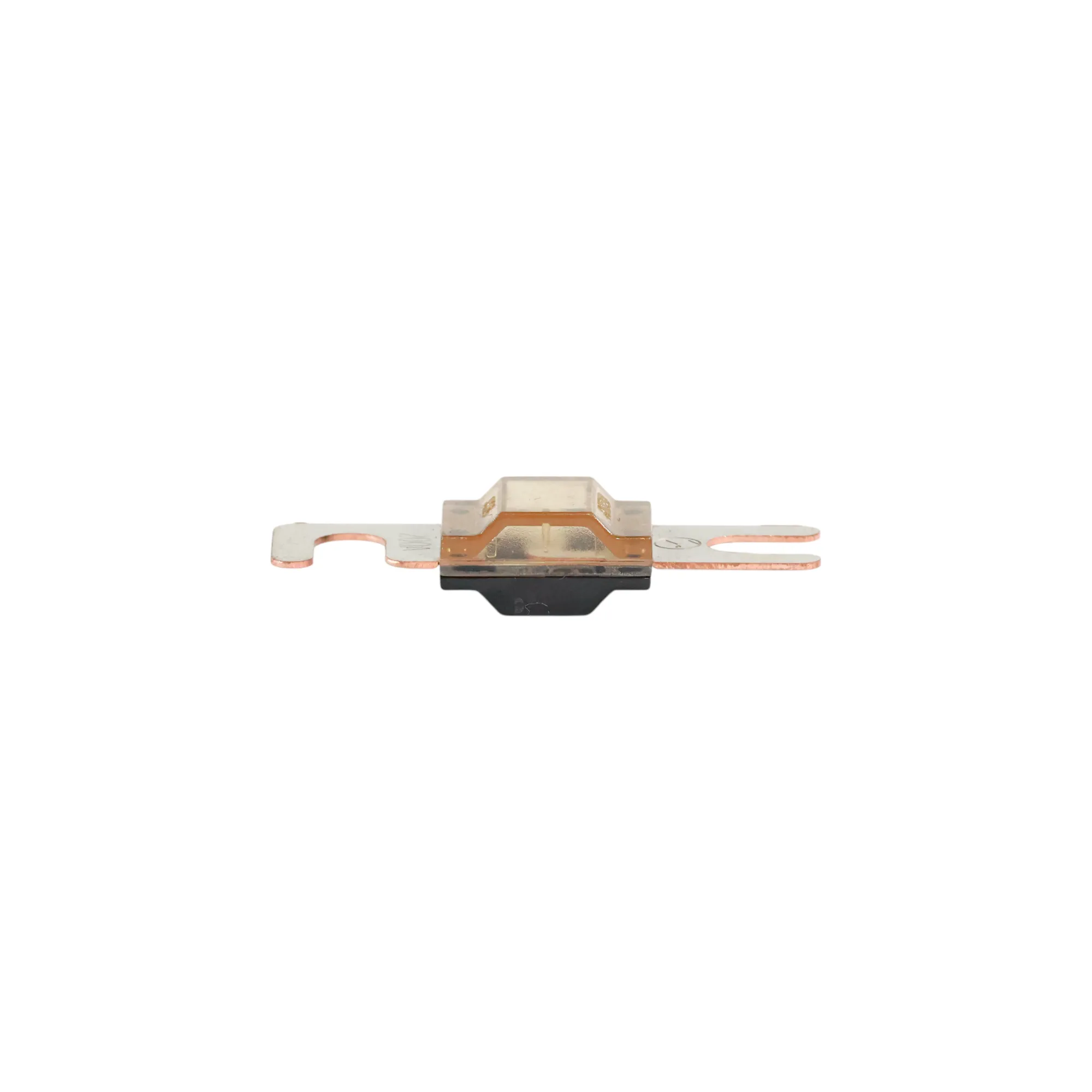

📝 Midi / AMI / ANS M5 Fuse – 200A (12–48v) – 10 Pack

The Midi / AMI / ANS M5 Fuse – 200A (10 Pack) is a heavy-duty, bolt-down fuse set engineered for very high-current DC circuits in 12v, 24v, and 48v electrical systems, including marine and off-grid installations. Commonly used for large inverters, high-capacity DC chargers, battery interconnects, and main distribution feeds, these fuses deliver stable, predictable protection with minimal voltage drop under sustained load.

Built with tin-plated copper alloy terminals and a durable nylon housing, this 10-pack is ideal for professional installations, system upgrades, and spare stock.

---

⭐ Essential Benefits

• 200 amp rating – designed for very high-demand supply and distribution circuits.
• 10 pack format – ideal for installs, servicing, and spares.
• Industry-standard M5 mounting – compatible with most Midi / AMI / ANS fuse holders.
• High breaking capacity – safely interrupts up to 2000A @ 58v DC.
• Wide voltage capability – suitable for 12v–48v systems with a 72v DC rating.
• Low resistance design – reduces heat build-up and voltage drop under load.
• Durable construction – suited to automotive, marine, and off-grid environments.

---

⚙️ Functionality

These Midi / AMI / ANS fuses protect circuits by safely interrupting power when current exceeds 200 amps. The bolt-down contact design ensures secure electrical connections and consistent conductivity, even under vibration and continuous high load.

Once the fault condition is cleared, the fuse can be replaced to restore normal circuit operation.

---

🔌 Compatibility

• 12v, 24v, and 48v DC systems
• Automotive electrical systems
• Marine and off-grid power setups
• RVs, motorhomes, and caravans
• Solar systems, DC chargers, inverters, and main distribution panels

---

🧰 Installation Difficulty

🟢 1/5 (Easy)
Bolt-down installation using standard M5 hardware.

---

🔍 Features

• Midi / AMI / ANS fuse format
• 200A current rating
• M5 mounting holes
• Tin-plated copper alloy terminals
• Nylon insulating housing
• Compact, space-efficient design

---

📊 Specifications

Specification	Value
Fuse type	Midi / AMI / ANS
Rated current	200A
Voltage rating	72v DC
System compatibility	12v / 24v / 48v
Breaking capacity	2000A @ 58v DC
Terminal material	Tin-plated copper alloy
Housing material	Nylon
Operating temperature	-32°C to +125°C
Mounting	Bolt-down (M5)

---

📦 What’s Included

• 10 × Midi / AMI / ANS M5 fuses (200A)

---

🙌 Why Choose This Product

This 200A Midi fuse 10-pack delivers dependable protection for very high-current DC circuits while maintaining excellent thermal stability and electrical performance. A strong choice for marine, RV, and off-grid systems powering large electrical loads.

---

🚀 Our Promise

Order today for same-day dispatch and protect your electrical system with proven, high-quality circuit protection.
