MCB 10 Amp DC Mini Circuit Breaker 2 Pole
📝 10A DC mini circuit breaker – 2 pole DIN rail
The 10A DC mini circuit breaker (2 pole) is designed to protect 12v, 24v, and higher-voltage DC electrical systems from overloads and short circuits. If current rises above safe levels, the breaker automatically trips to protect wiring, batteries, and connected equipment.
With its compact DIN rail mount design, this breaker is ideal for caravan, campervan, RV, solar, and off-grid electrical installations. The dual pole switching isolates both positive and negative conductors for safer circuit protection.
⭐ Essential benefits
• Dual pole protection – isolates both positive and negative circuits for improved safety
• Reliable overload protection – automatically trips to protect wiring and equipment
• Manual reset operation – quickly restore power once the fault is cleared
• DIN rail mounting – simple installation in electrical distribution boxes
• Compact design – ideal for caravan, solar, and off-grid installations
This breaker provides dependable protection while keeping electrical panels organised and secure.
⚙️ Functionality
The breaker continuously monitors current flowing through the circuit. If the load exceeds 10 amps, the breaker automatically trips and disconnects power to prevent damage to wiring and electrical components.
Once the fault is resolved, the breaker can be manually reset using the switch lever, restoring power to the circuit.
🔌 Compatibility
• Solar power systems
• Caravan and RV electrical systems
• Campervan battery systems
• Off-grid DC power installations
• DIN rail electrical distribution boards
🧰 Installation difficulty
🟡 3/5 (Moderate) – requires correct wiring and DIN rail mounting within an electrical enclosure.
🔍 Features
• 2 pole DC breaker – isolates both conductors

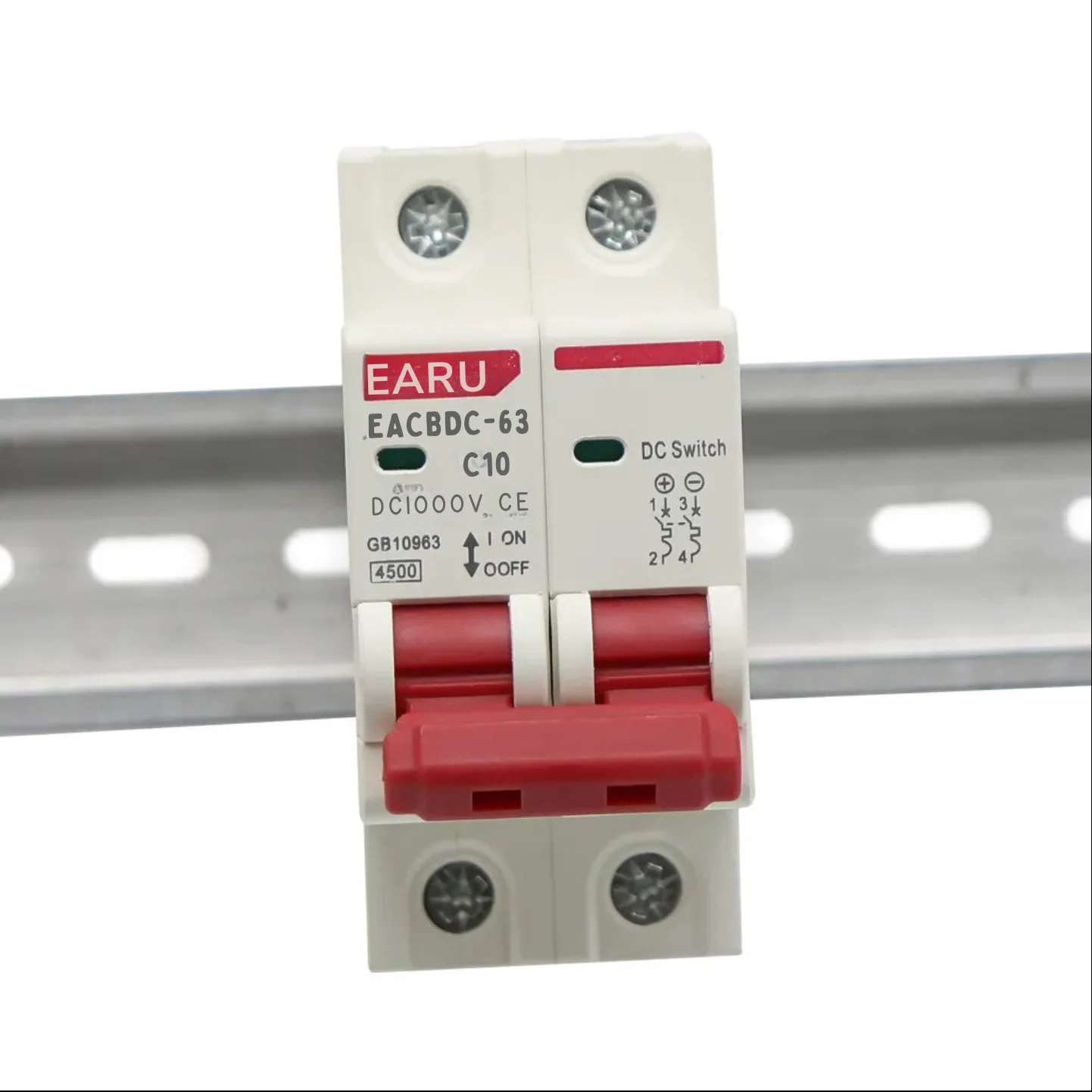

• DIN rail mount – fits standard electrical rails
• Manual reset lever – easy power restoration
• Compact enclosure – suitable for tight electrical panels
• High sensitivity trip protection – responds quickly to overload or short circuit

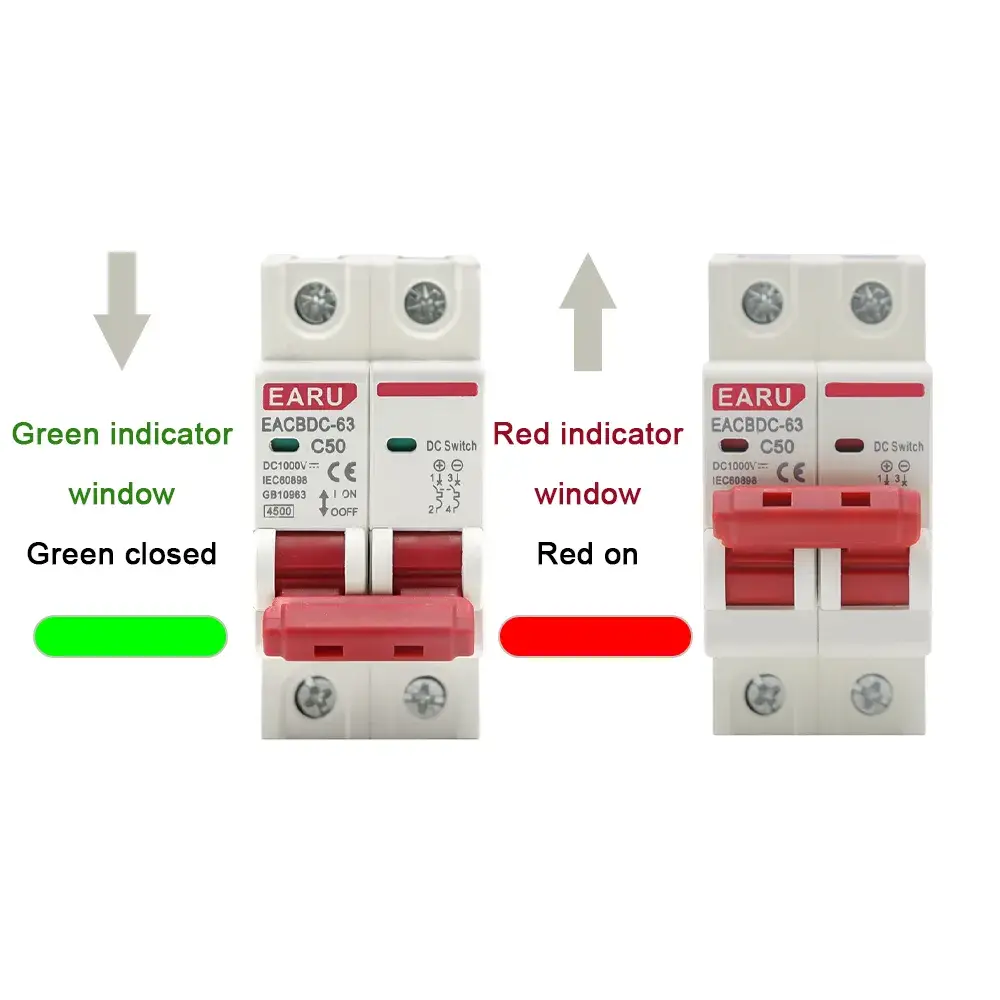

• Indicator window – quick visual status check
📊 Specifications table
| Specification | Detail |
|---|---|
| Rated current | 10A |
| Rated voltage | Up to 1000v DC |
| Poles | 2 pole |
| Mount type | DIN rail |
| Breaking capacity | 4500A |
| Operating temperature | Approx -20°C to 70°C |
| Application | DC electrical protection |
📦 What’s included
• 1 × 10A DC mini circuit breaker (2 pole)
🙌 Why choose this product?
Protecting smaller circuits is just as important as protecting high-current systems. This breaker provides fast overload protection, safe dual pole isolation, and easy manual reset, making it ideal for low-current solar circuits, accessory wiring, and caravan electrical panels.
🚀 Our promise
Order today for same-day dispatch and explore our full range of caravan and off-grid electrical components.
