📝 Flexible Power Single Core 0.6/1KV Double Insulated Cable – 50mm² (Per Metre)
Power your systems with confidence using the Flexible Power Single Core 0.6/1KV Double Insulated Cable – 50mm², purpose-built for heavy-duty fixed power applications. Designed to deliver superior current flow and long-lasting reliability, this flexible single-core cable is perfect for switchboards, transformers, welding setups, and automotive electrical systems. Sold by the metre, it provides flexibility for precise, custom installations.
⭐ Essential Benefits
• Versatile power solution – ideal for switchboards, busbars, transformers, welding leads, jumper cables, and battery chargers.
• High current capacity – safely handles up to 185 amps across two single cores for powerful, consistent delivery.

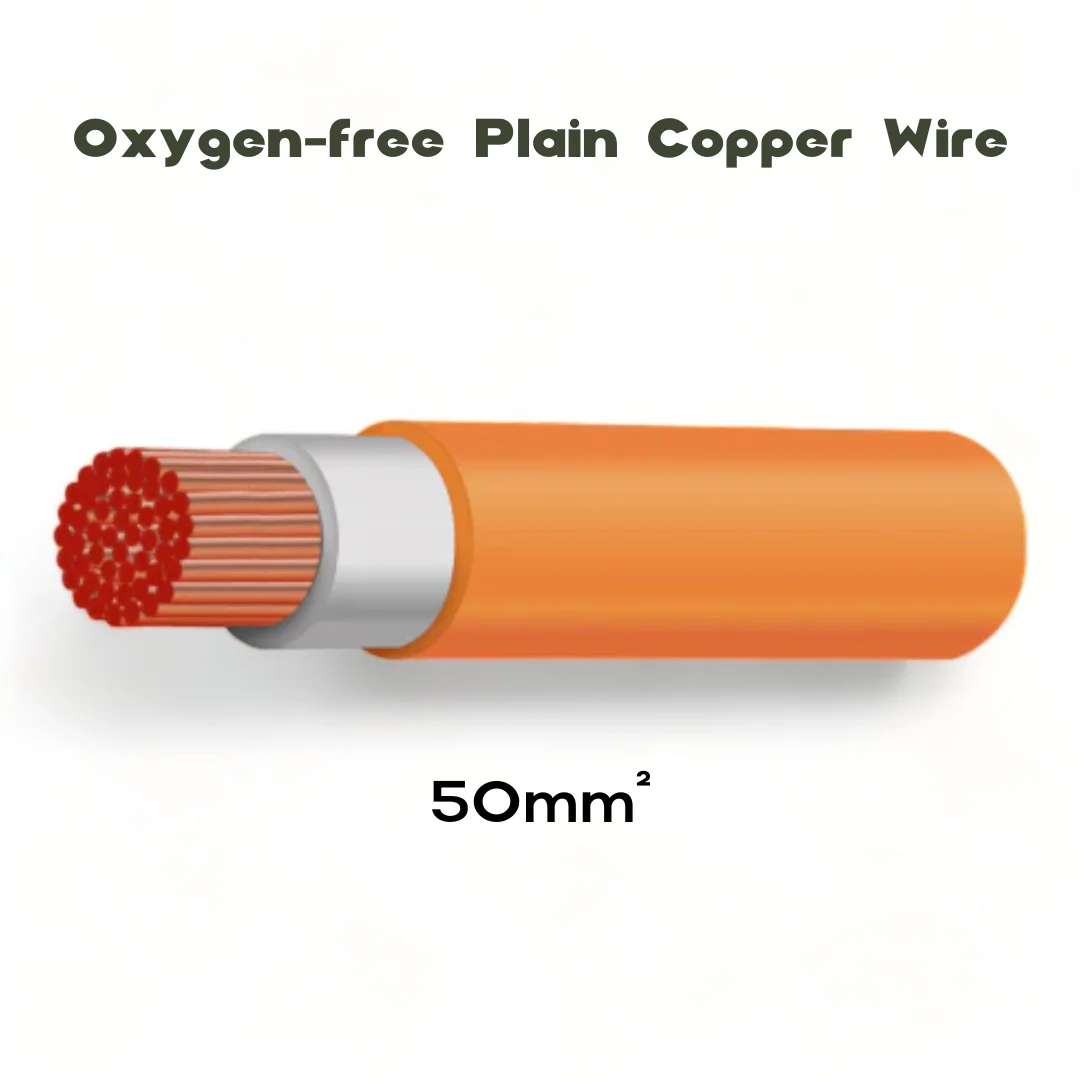

• Superior conductivity – features 1568 strands of 0.2mm oxygen-free copper for exceptional electrical performance.
• Double insulation – encased in RoHS-compliant NBR modified PVC for high thermal resistance and protection.
• Flexible yet strong – bends easily for routing while maintaining durability under demanding conditions.
• Precision engineered – manufactured to Australian standards for reliable, long-term operation.
⚙️ Functionality
This 50mm² double-insulated single core cable combines high flexibility with heavy-duty current capacity, making it ideal for high-demand power distribution. Its oxygen-free copper core ensures low resistance and efficient power transfer, while the rugged PVC insulation provides protection against heat, vibration, and wear.
🔌 Compatibility
• Suitable for 12v, 24v, and 48v DC systems
• Perfect for automotive, marine, RV, and industrial setups
• Works with solar, inverter, and high-current battery installations
🧰 Installation Difficulty
🟢 1/5 (Easy) – flexible and simple to route during installation.
🔍 Features
• Flexible single-core conductor
• Double-insulated NBR modified PVC (RoHS compliant)
• 0.6/1KV system rated
• Oxygen-free copper for superior conductivity
• Australian standard Class 6 construction
• Rated to 75°C (normal) and up to 105°C (protected)
• Sold per metre for custom lengths
📊 Specifications
| Specification | Detail |
|---|---|
| Nominal Area | 50mm² |
| Nominal O.D. | 14.90mm |
| Amp Rating | 185A (Two Single Cores) |
| Voltage Drop | 0.96 mV/Am (Single Phase) / 0.83 mV/Am (Three Phase) |
| Conductor | Class 6 Bunched, Oxygen-Free Copper (AS/NZS 1125) |
| Insulation | White NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Sheath | Orange NBR Modified PVC Type V90HT (AS/NZS 3808) |
| Max Operating Temp. | 75°C (Normal Use) / 105°C (Protected) |
| Part No. | CW0-10-1 |
📦 What’s Included
• 1 × Flexible Power Single Core 50mm² Double Insulated Cable (Sold per metre)
