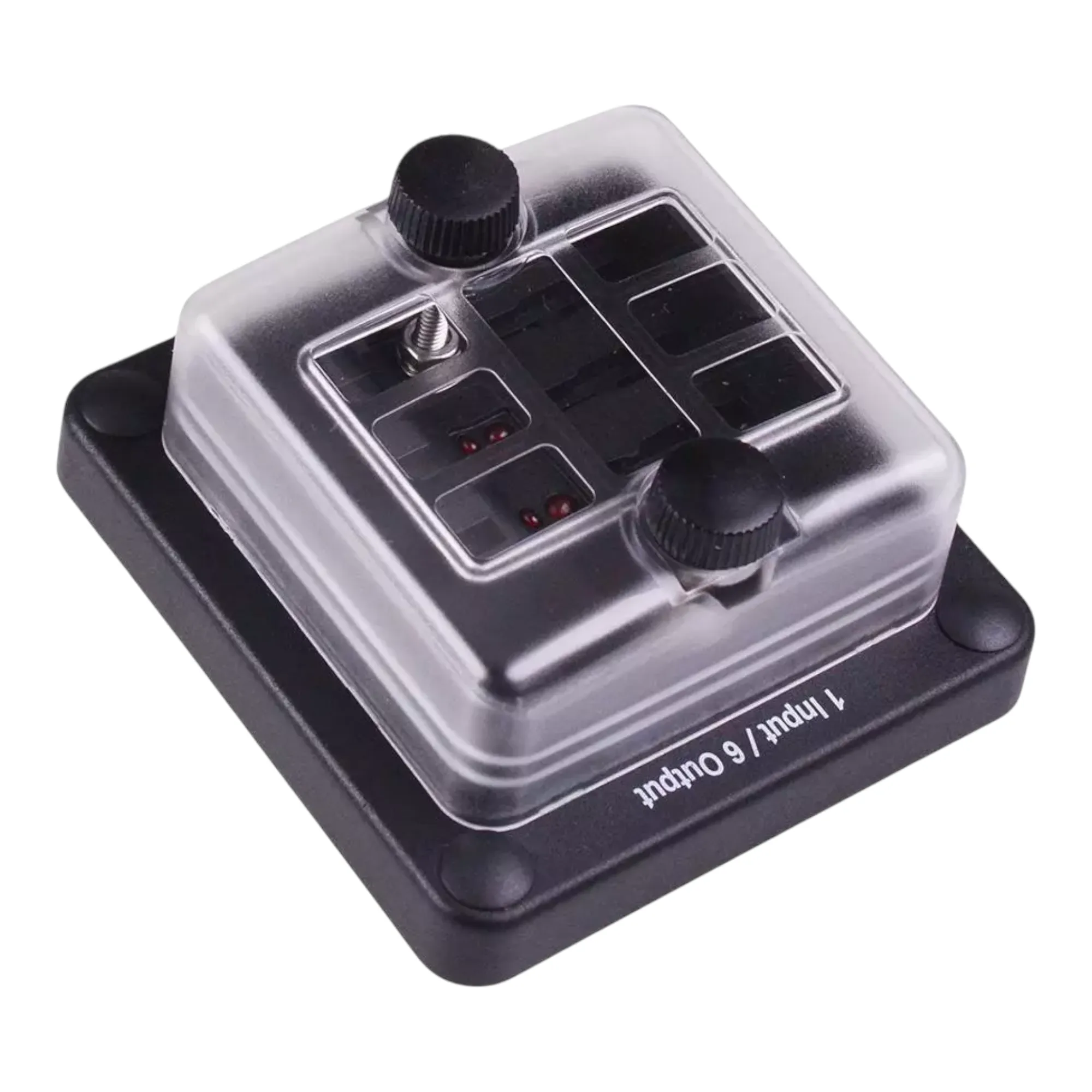

6-Slot Rear Connect LED Indicator Blade Fuse Block
📝 6-Slot Rear-Connect LED Indicator Blade Fuse Block
This 6-slot rear-connect LED fuse block provides organised, reliable circuit protection for campervans, caravans, RVs, 4WDs, and marine electrical setups. With rear-entry wiring, waterproof protection, and individual LED indicators for blown-fuse detection, it keeps your system safe, tidy, and easy to troubleshoot. Designed for harsh touring conditions and clean installs, it is the ideal upgrade for modern 12v electrical systems.
⭐ Essential Benefits
• Rear-entry wiring – keeps the install clean and reduces visible cabling.
• LED blown-fuse indicators – instantly highlights which fuse has failed.
• Waterproof housing – protects circuits from moisture, dust and vibration.
• Standard blade fuse compatibility – suits ATC/ATO fuses for easy replacement.
• Compact profile – efficient use of space for vans, RVs and 4WD electrical layouts.
⚙️ Functionality

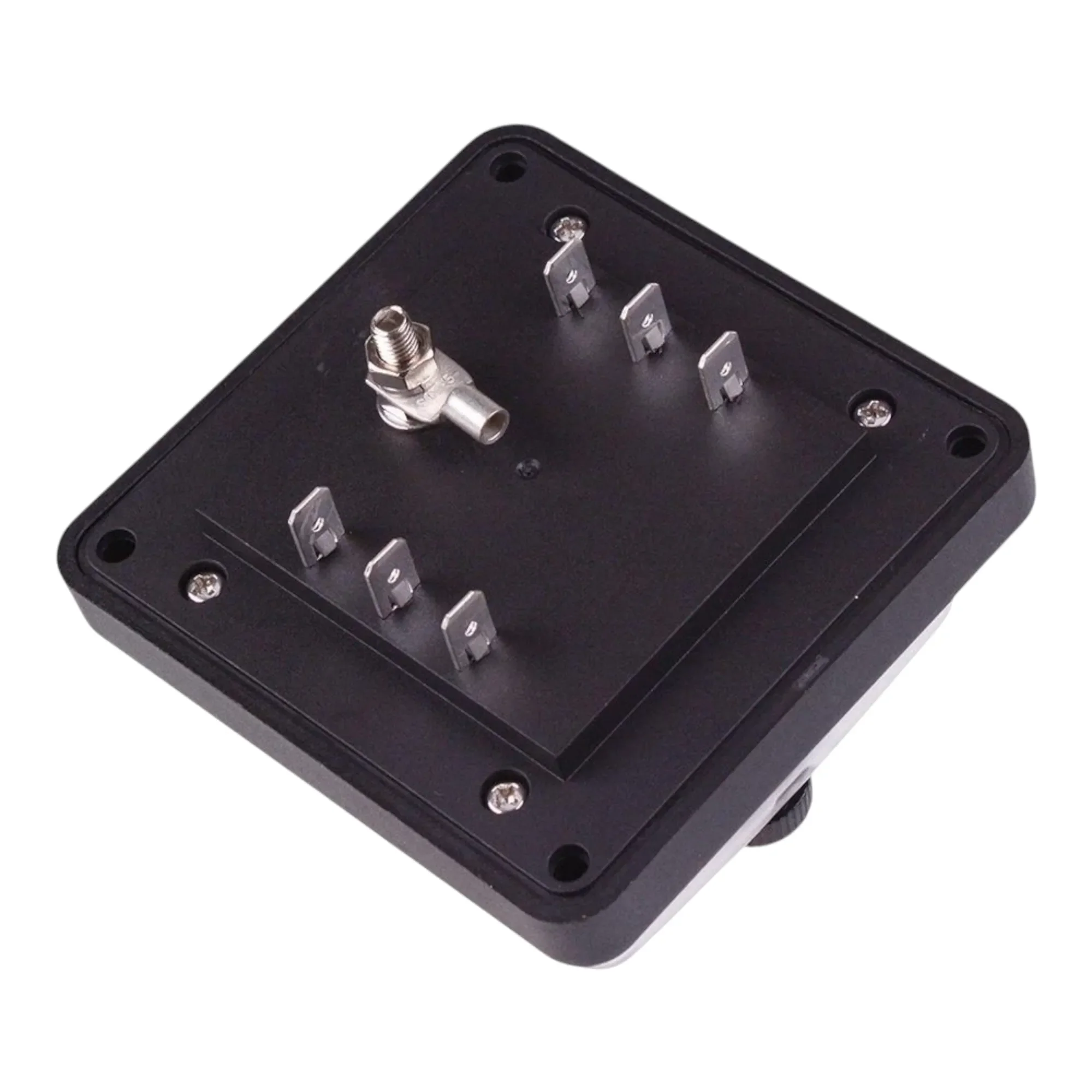

This fuse block protects up to six independent circuits using standard ATC/ATO blade fuses. When a fuse blows, the corresponding LED illuminates, making diagnosis quick and simple. Rear-connect terminals create a cleaner installation, especially where the front must remain visually neat. The waterproof cover shields the assembly while still allowing easy access for maintenance or fuse replacement.
🔌 Compatibility
• Works with 12v and 24v DC systems
• Ideal for campervans, caravans, 4WDs, RVs, trucks and marine setups
• Supports lighting circuits, pumps, fridges, accessories, switching panels and more
• Accepts standard ATC/ATO blade fuses
🧰 Installation Difficulty
🟢 2/5 (Easy)
Simple surface-mount installation with 6.3mm quick-connect terminals.
🔍 Features
• Six ATC/ATO fuse slots
• LED indicators for blown fuses
• Waterproof protective cover
• 6.3mm quick-connect terminals
• Rear-entry wiring for clean routing
• Identification labels included
• Panel-mount design with supplied hardware
📊 Specifications
| Specification | Value |
|---|---|
| Max Voltage | 32v DC |
| Total Circuits | 6 |
| Fuse Type | ATC / ATO blade fuses |
| Indicator Type | LED blown-fuse indicator |
| Terminals | 6.3mm quick-connect |
| Waterproof Rating | Yes |
| Mounting Type | Rear-connect panel mount |
| Approx Dimensions | 91 × 86 × 68mm (L × W × H) |
| Protective Cover | Waterproof housing |

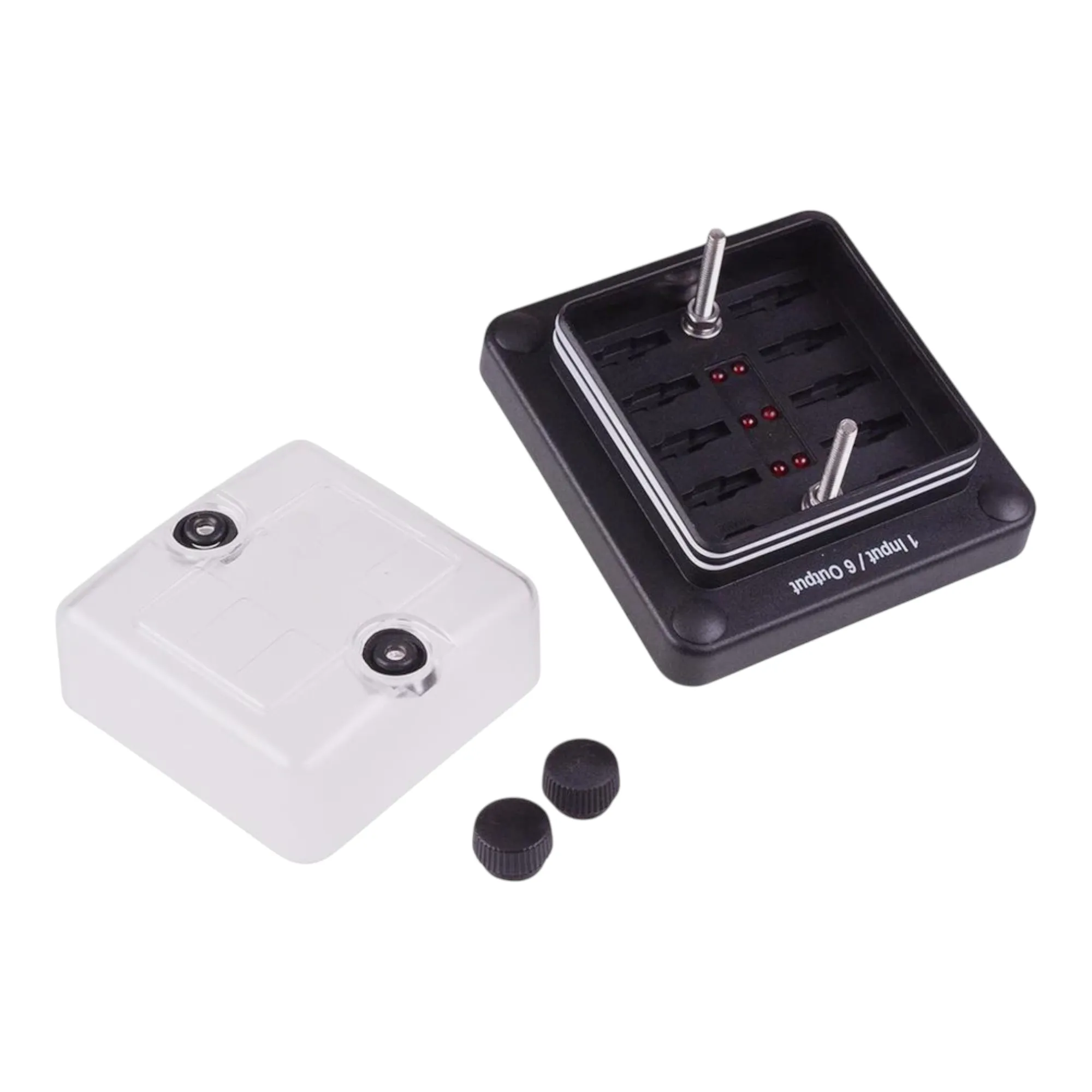

📦 What’s Included
• 1x 6-slot rear-connect LED indicator blade fuse block
• 1x Waterproof protective cover
• 1x Gasket
• 1x Label sheet
• Mounting screws
🙌 Why Choose This Product?
This 6-slot fuse block delivers clean wiring, waterproof protection and LED failure indication in one compact assembly. Designed for rugged touring conditions and modern 12v/24v systems, it provides reliable, organised circuit protection for vans, boats and off-grid builds.
🚀 Our Promise
Order today for same-day dispatch and upgrade your electrical system with reliable, waterproof fuse protection.
