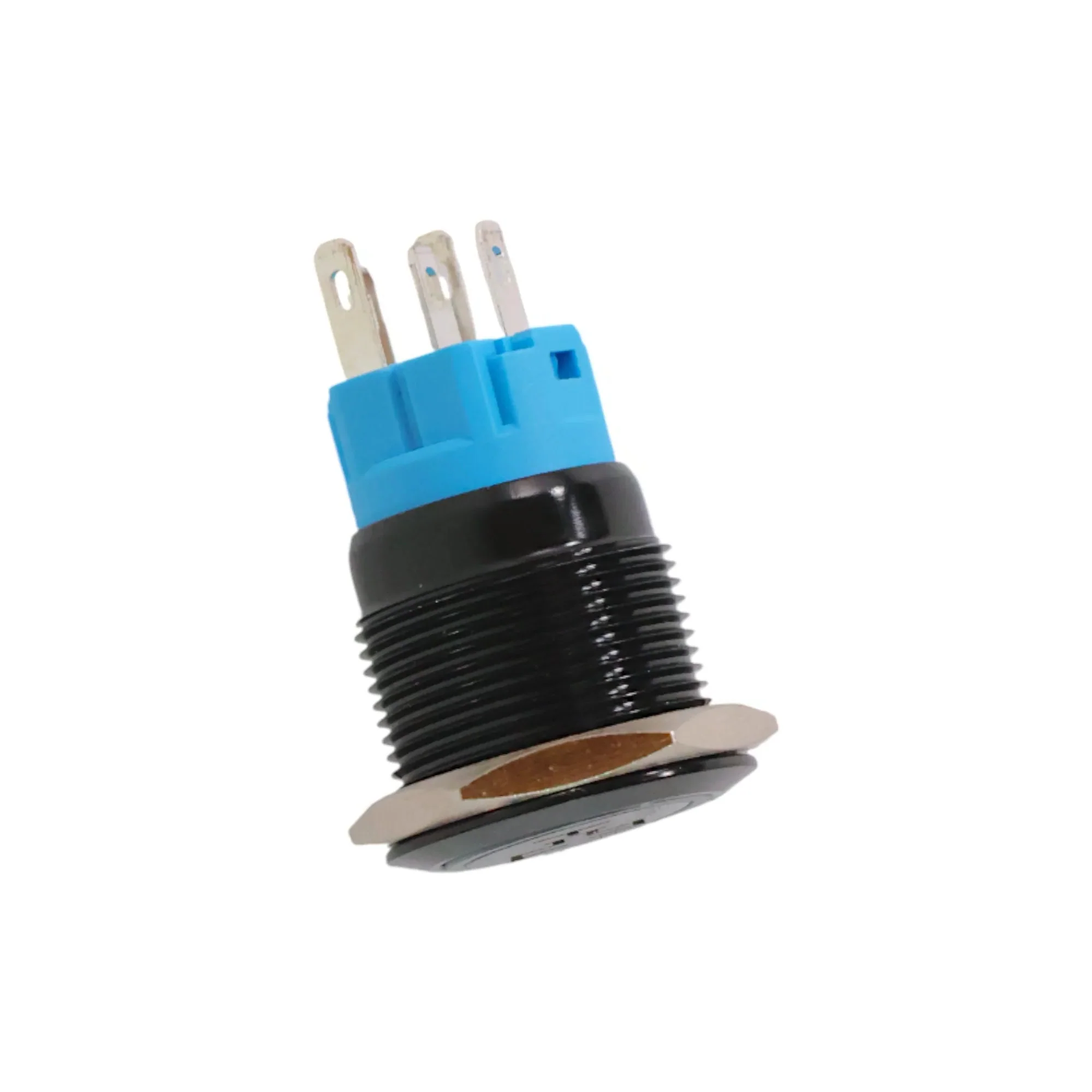

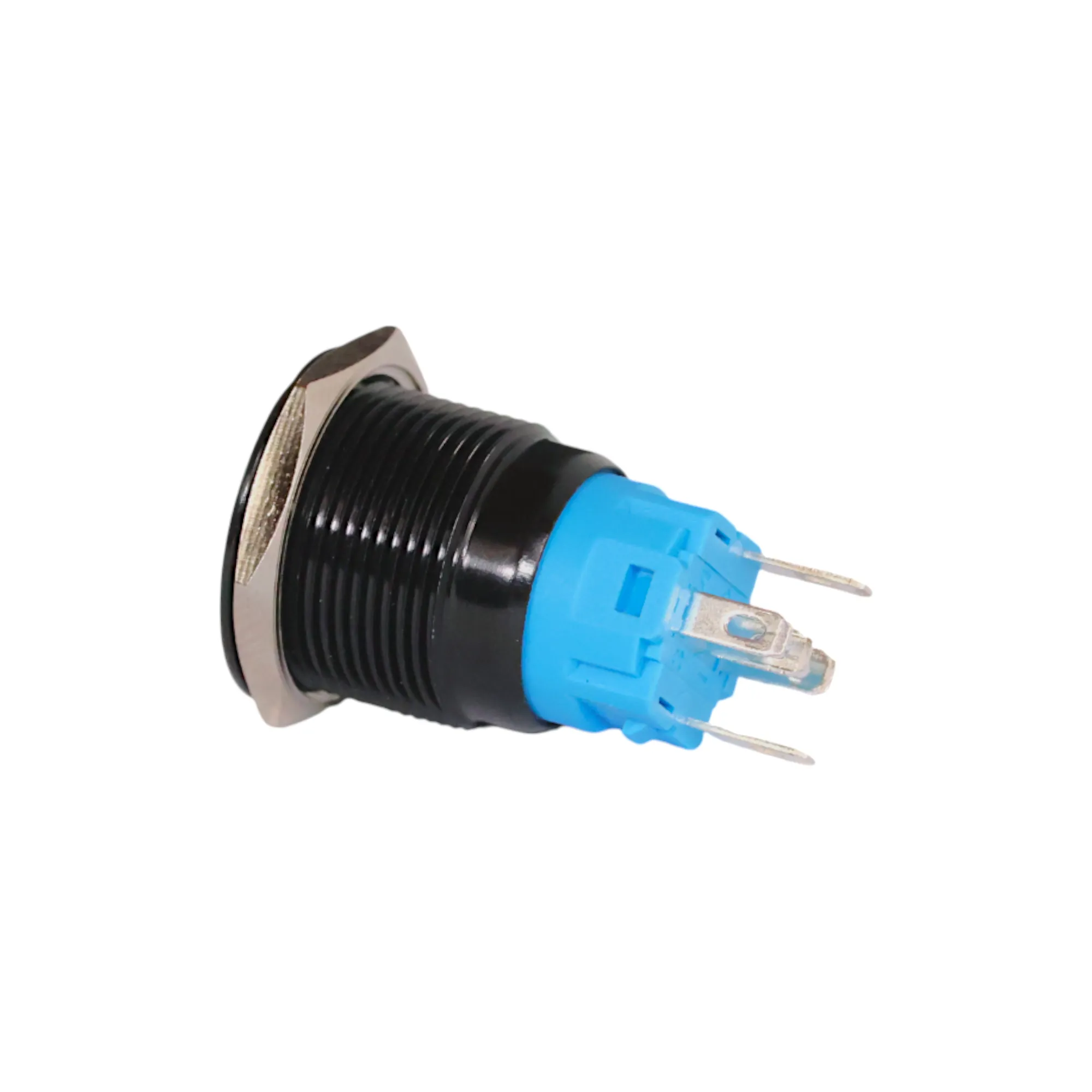

19mm VALVE White Push Button Switch - Black Anodised Finish - 12-24V
📝 19mm VALVE White Push Button Switch – Anodised Black Finish – 12–24v
This 19mm push button switch is designed for clear, confident control of valve-operated systems in touring and off-grid builds. Featuring a laser-etched VALVE label and a white LED halo, it delivers instant visual feedback with a clean, modern interface suited to blacked-out control panels for air systems, water valves, pneumatic controls, and auxiliary valve circuits.
Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in latching operation only, making it ideal for systems that require a maintained on/off state.
⭐ Essential Benefits
• Etched VALVE label – laser-engraved for clean, fade-proof identification.
• White LED halo – clear visual feedback when the circuit is active.
• Anodised black finish – modern, low-glare professional appearance.
• Latching operation only – press once to activate, press again to deactivate.
• IP65 front rating – dust and splash resistant for rugged environments.
⚙️ Functionality
This push button switch operates in latching mode only, meaning:
• Press once to turn on – valve opens or system activates.
• Press again to turn off – valve closes or system deactivates.
This makes it ideal for electrically controlled valves, solenoids, and systems that require a positive on/off state rather than momentary control.
The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.
🔌 Compatibility
• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – air valves, water valves, pneumatic systems, solenoid controls.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.
🧰 Installation Difficulty
🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.
🔍 Features
• Laser-etched VALVE text – permanent, high-contrast marking.
• White LED halo illumination – modern, easy-to-read status indication.
• Anodised black face – clean, stealth-style finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

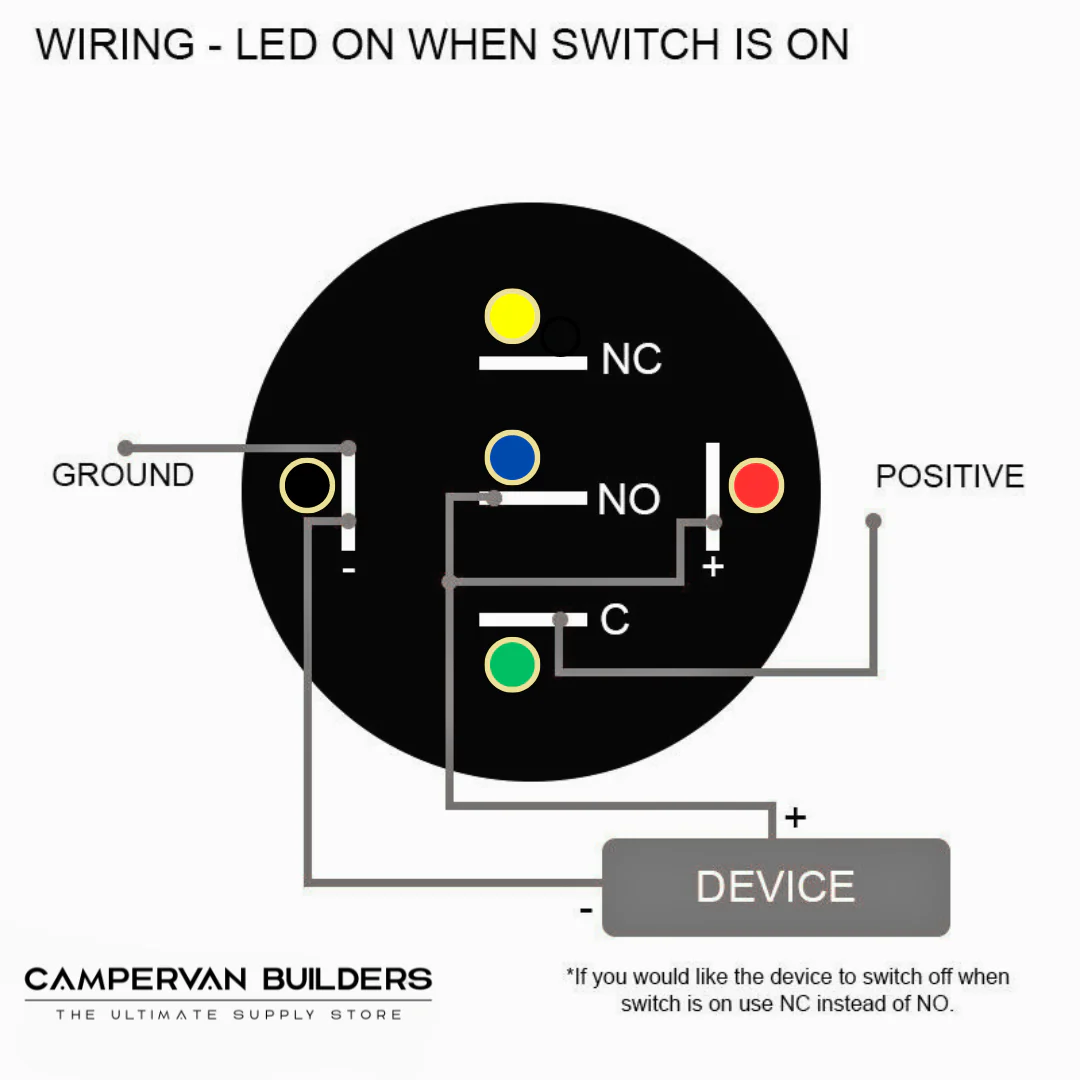

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.
📊 Specifications
| Specification | Value |
|---|---|
| Voltage range | 12–24v DC |
| Switch type | Latching only |
| Cutout size | 19mm |
| Current rating | 3A @ 12v / 1.5A @ 24v |
| LED colour | White halo |
| Engraving | VALVE text (laser-etched) |
| Finish | Anodised black |
| Ingress rating | IP65 (front face only) |
📦 What’s Included
• 1 × 19mm push button switch with VALVE label.

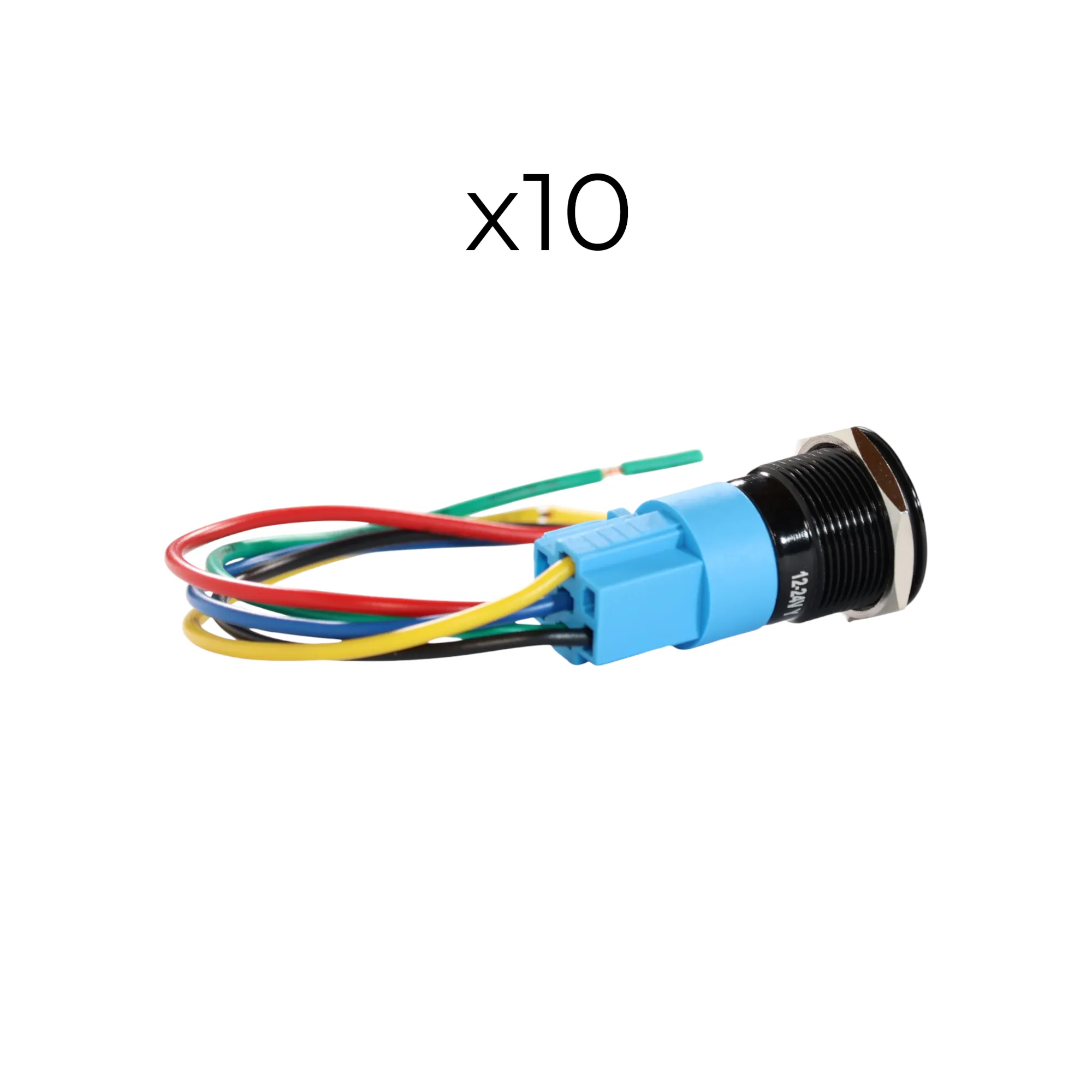

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.
🙌 Why Choose This Product?
This switch delivers positive, reliable on/off control for valve systems where state matters. With a stealth anodised black finish, clear LED indication, and latching-only operation, it’s a professional-grade solution for clean, modern control panels.
🚀 Our Promise
Order today for same-day dispatch and browse our full range of switch gear and control hardware.
