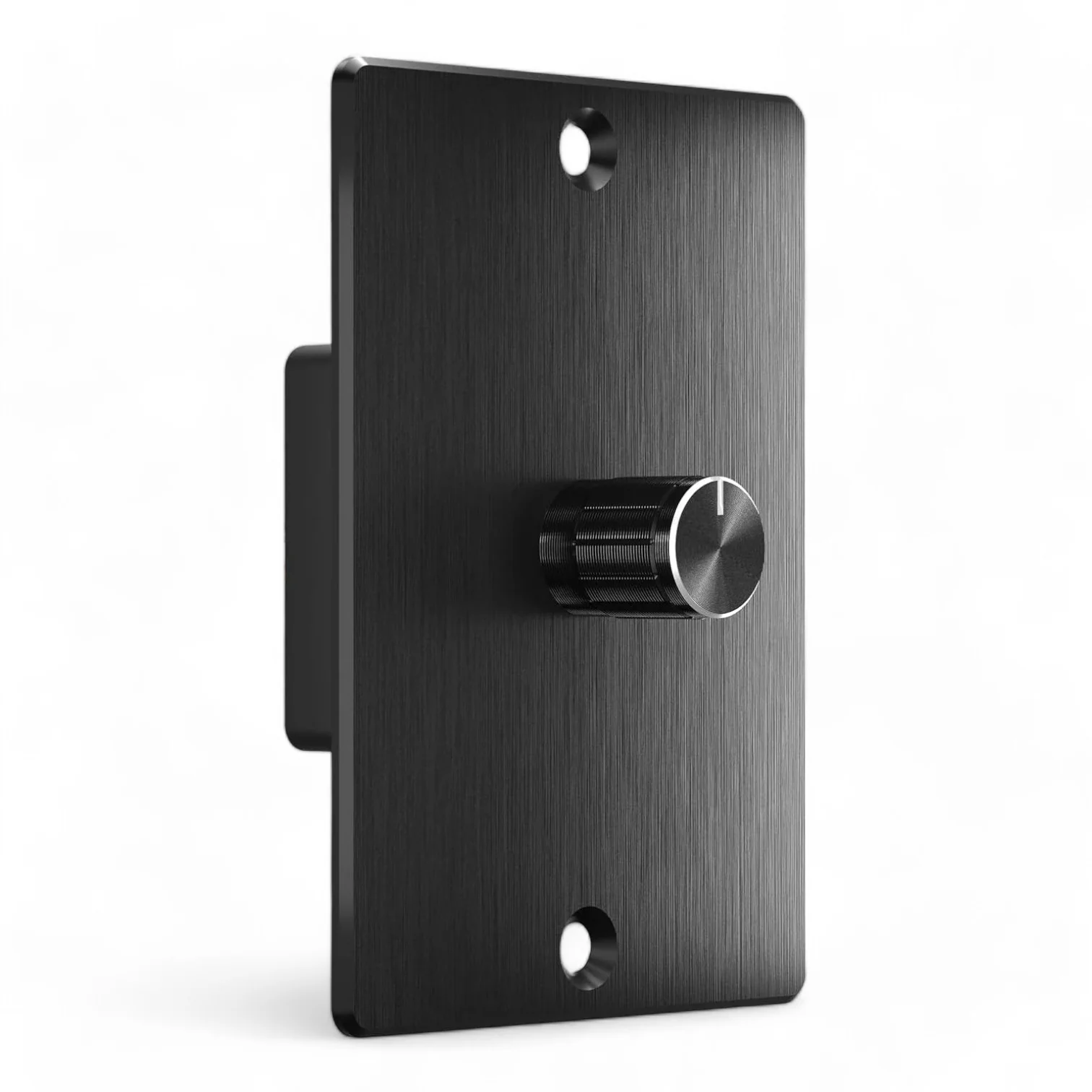

📝 12V PWM LED Dimmer Switch – Black Panel

Upgrade your campervan, RV, boat, truck or trailer lighting with this premium 12V PWM LED Dimmer Switch. The sleek black aluminium panel and smooth rotary knob provide precise, flicker-free brightness control, while compatibility with both 12V and 24V systems makes it perfect for a wide range of LED lighting setups.

⭐ Essential Benefits

• High-efficiency PWM dimming – stepless 5%–100% brightness with memory recall.

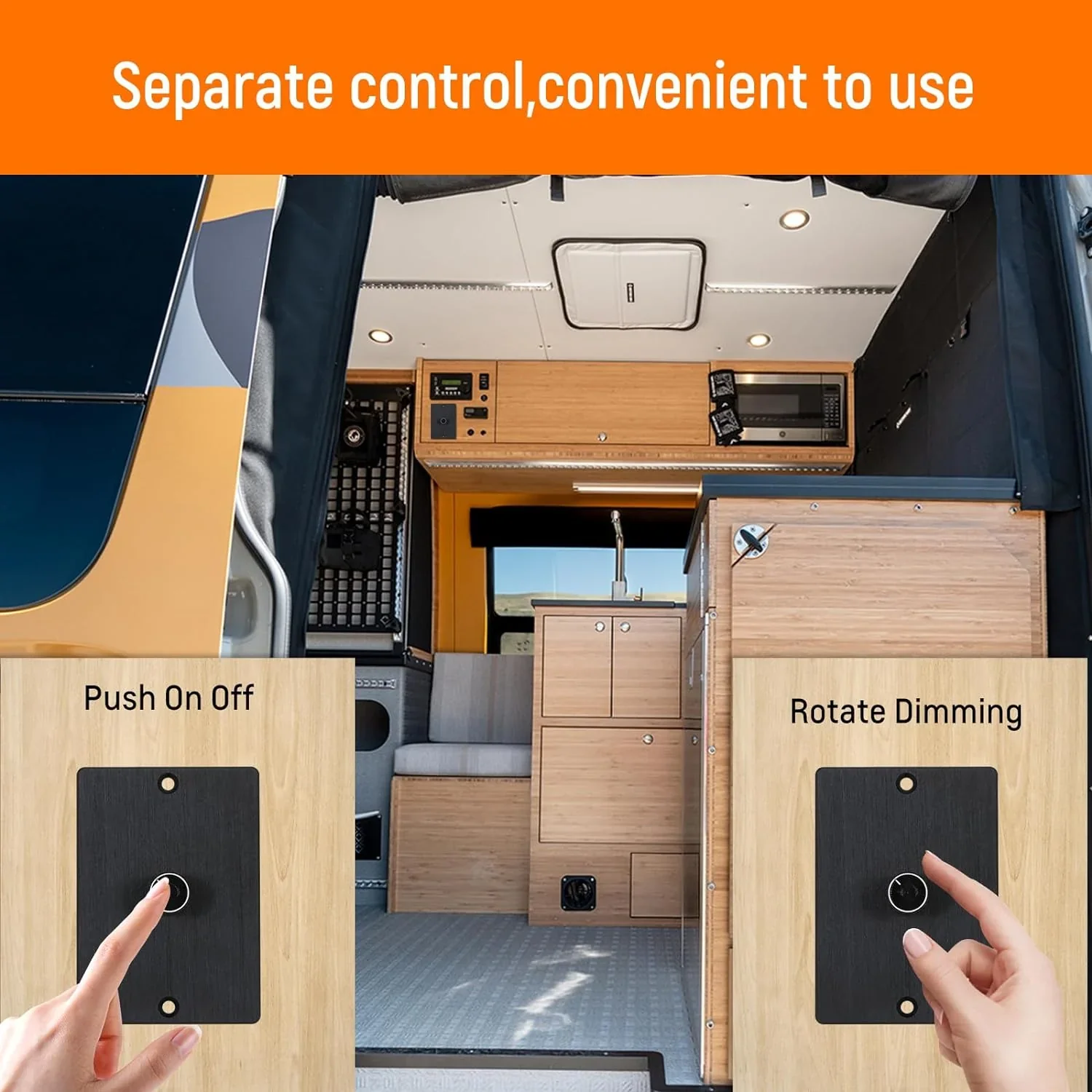

• Push + rotate control – press to switch on/off, rotate to adjust brightness.
• High power handling – up to 15A / 180W, ideal for larger LED circuits.
• Premium aluminium panel – textured black finish for a modern, flush-mounted look.
• Wide lighting compatibility – works with LED, incandescent and halogen lights.
• Straightforward installation – clear wiring instructions, mounting screws included.

⚙️ Functionality

This dimmer uses pulse-width modulation (PWM) to deliver smooth, flicker-free dimming without humming or LED damage. The push-on/push-off functionality offers instant control, while the rotary knob allows fine adjustment. A built-in memory function restores your previous brightness setting when powered on.

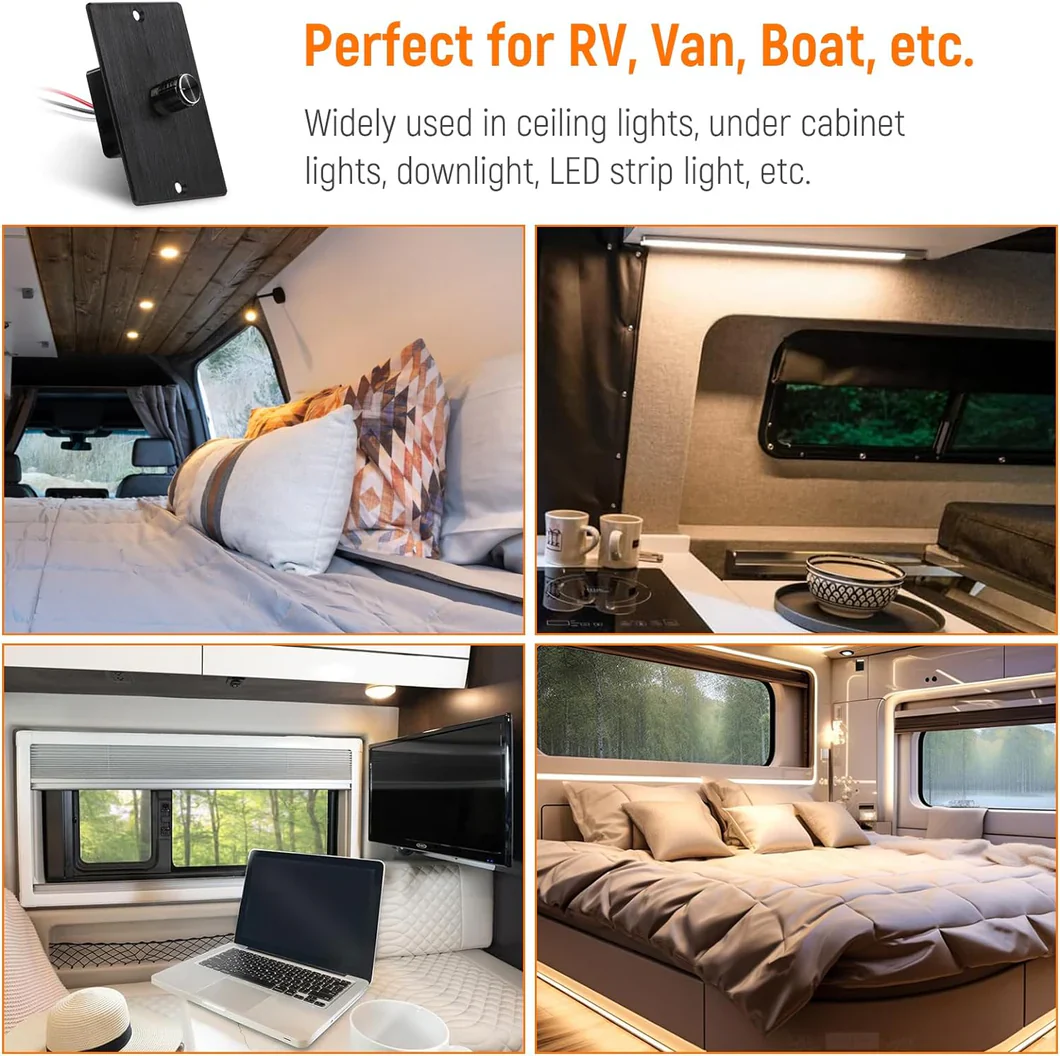

🔌 Compatibility

• 12V and 24V DC lighting systems
• LED strip lights, downlights, dome lights
• Campervans, caravans, RVs and trailers
• Boats, marine cabins and 4WD fit-outs
• Any low-voltage lighting requiring smooth dimming

🧰 Installation Difficulty

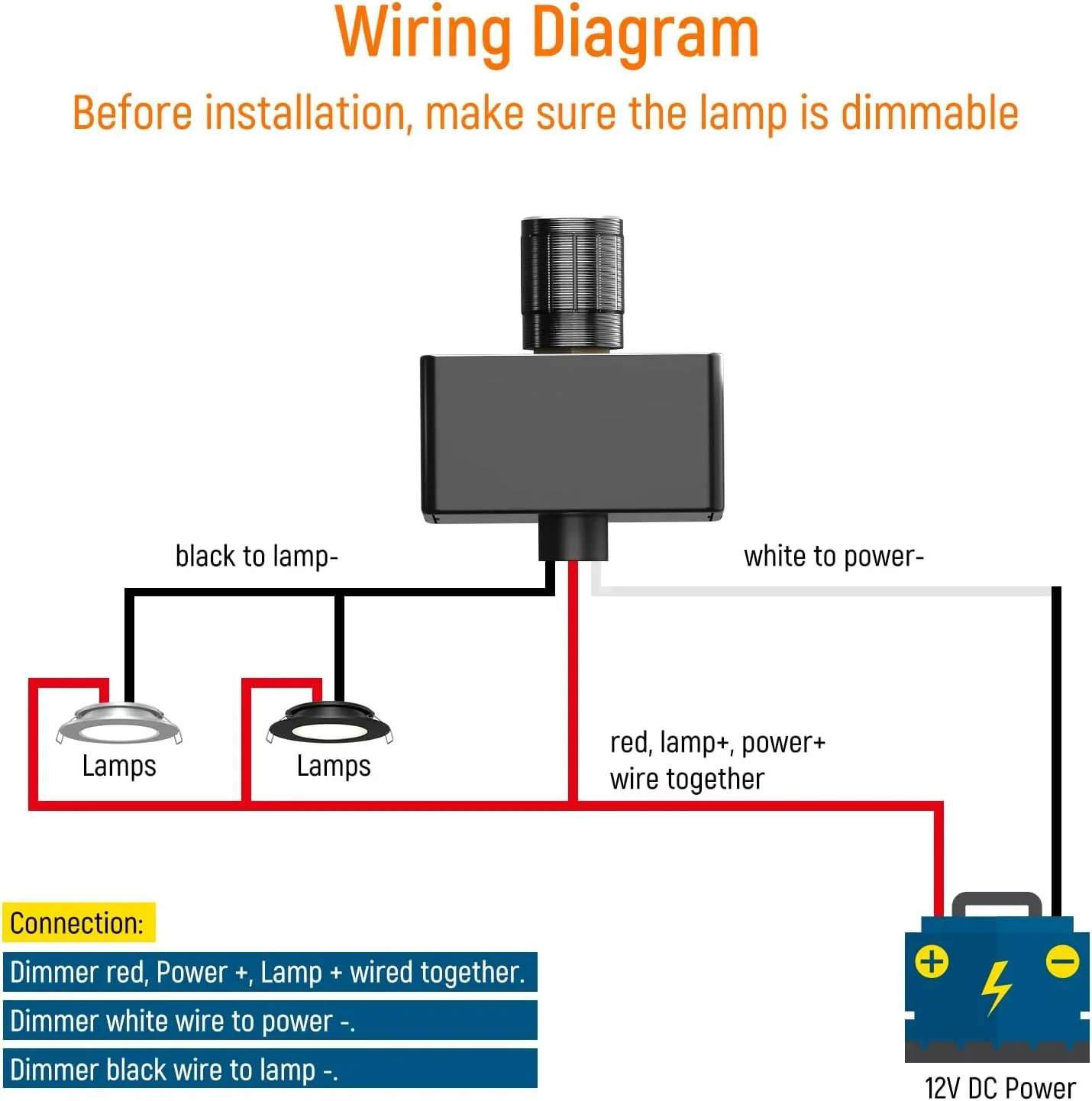

🟢 1/5 (Easy) – basic DC wiring with simple four-wire connections.

🔍 Features

• PWM dimming technology
• Push + rotary knob switch
• Black aluminium faceplate
• Memory function
• Flicker-free dimming
• Surge-protected circuitry
• 15A / 180W rating
• Compact cut-out size
• 5-year warranty

📊 Specifications

Specification	Detail
Working Voltage	12V–24V DC
Max Current	15A @ 12V / 7.5A @ 24V
Max Wattage	180W
Dimmer Type	PWM
Switch Type	Push on/off, rotary dimming

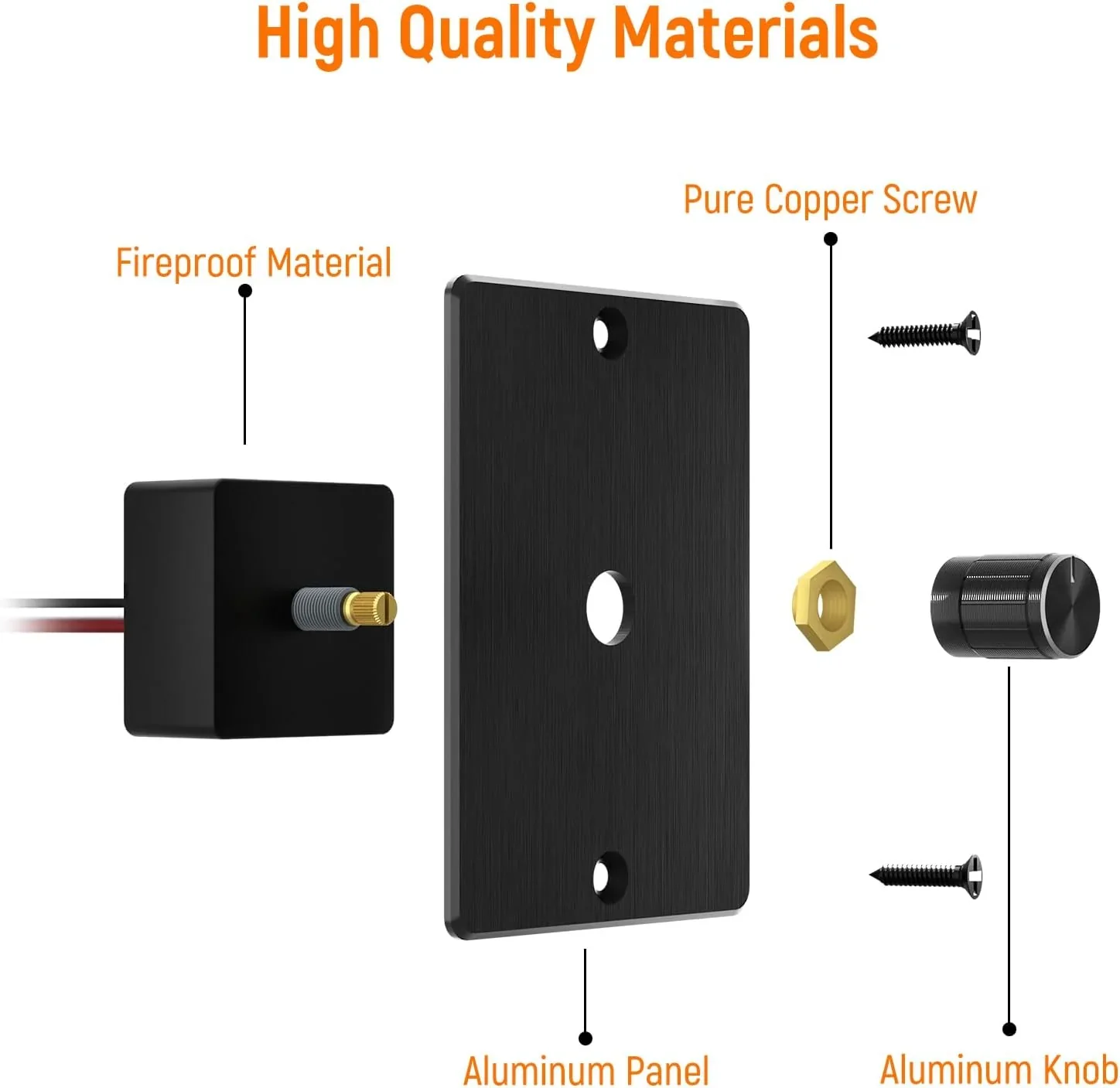

Materials	Black aluminium panel
Wiring	4-wire
Cutout Size	41 × 41 × 22 mm
Front Plate Size	90 × 63.5 mm
Overall Size	63.5 × 41 × 90 mm
Feedback	Light ticking on activation

📦 What’s Included

• 1 × Black Panel PWM Dimmer Switch
• 2 × Mounting screws
• 1 × Quick start guide

🙌 Why Choose This Product?

This dimmer combines high-power performance with a modern black aluminium finish, offering reliable and stylish lighting control for any off-grid or mobile environment. Ideal for van conversions, RV upgrades and marine installs needing smooth, flicker-free brightness adjustment.
